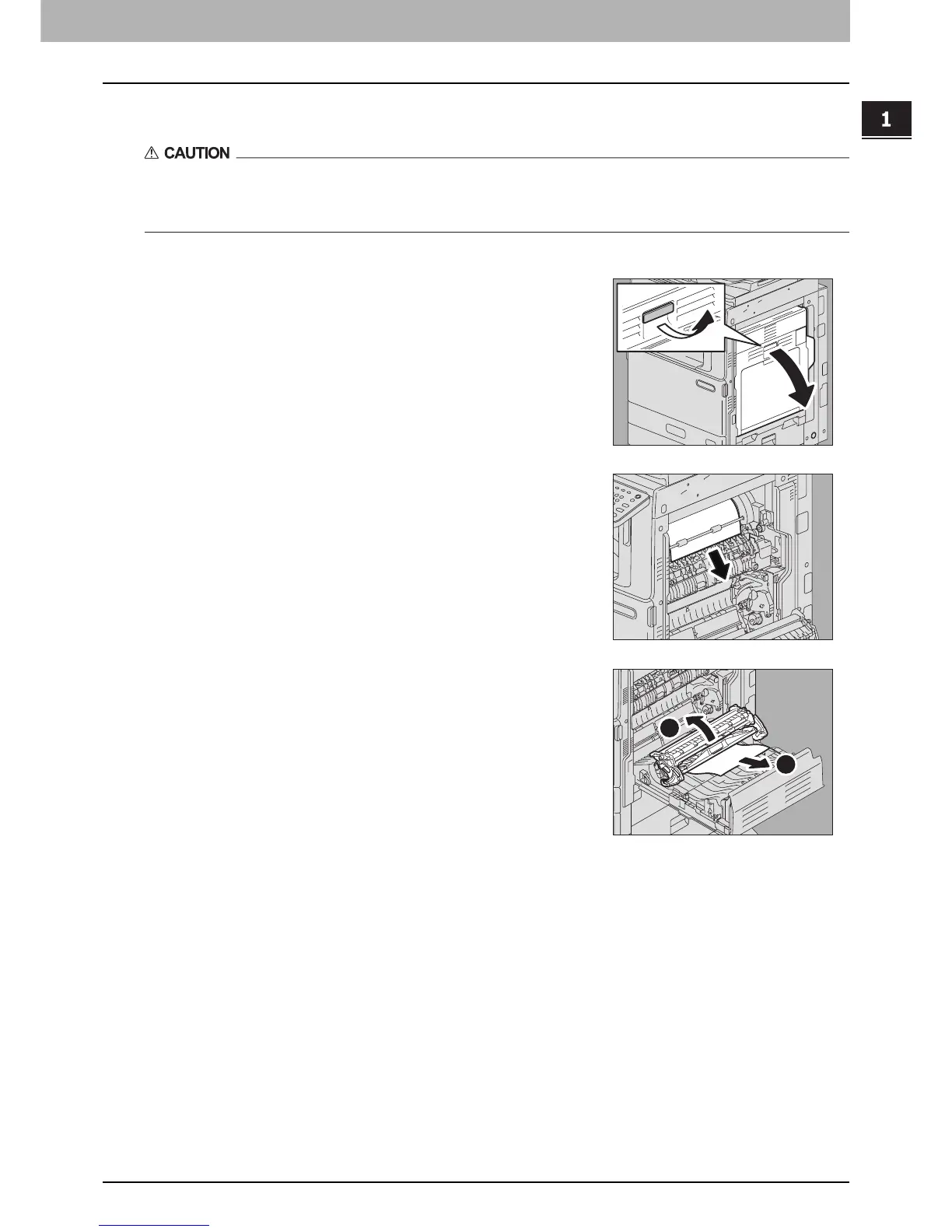

1.TROUBLESHOOTING FOR THE HARDWARE

Clearing a Paper Misfeed 23

1 TROUBLESHOOTING FOR THE HARDWARE

 Paper misfeed in the automatic duplexing unit

Be careful not to let your fingers be caught between the equipment and the duplexing unit cover or

automatic duplexing unit cover.

This could injure you.

Lower the green lever carefully and then close the automatic duplexing unit cover.

Open the automatic duplexing unit cover on the right.

Remove the misfed paper.

While holding the green lever, remove the misfed

paper.
