1.TROUBLESHOOTING FOR THE HARDWARE

Clearing a Paper Misfeed 25

1 TROUBLESHOOTING FOR THE HARDWARE

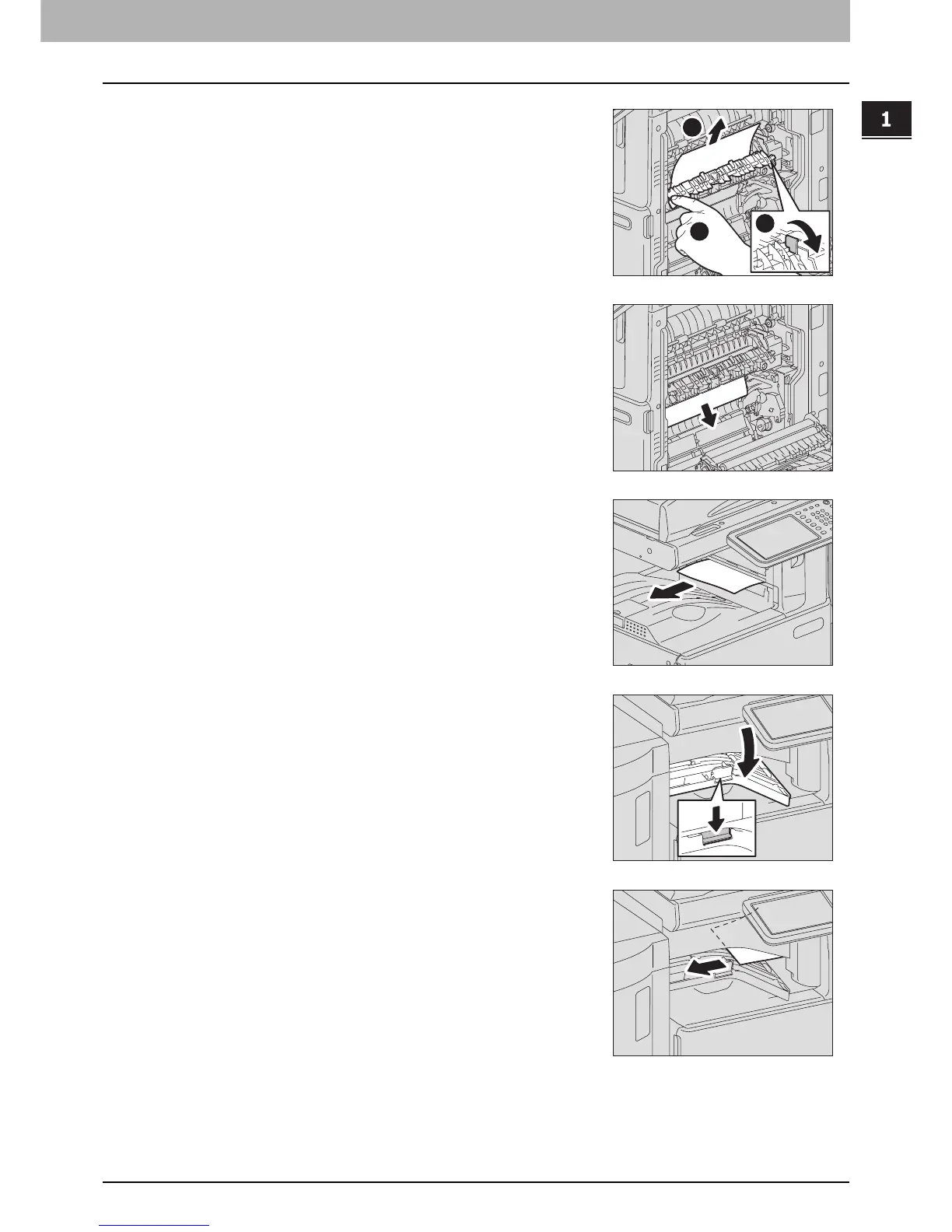

Open the transport guide holding the green knob and

then release the misfed paper. Pull the misfed paper

up or down as shown in the illustrations depending

on the position of the paper.

Pulling it up

Pulling it down

Remove the paper from the exit section.

When the finisher is installed, open the Bridge Kit

cover while holding the handle.

Remove the misfed paper.
