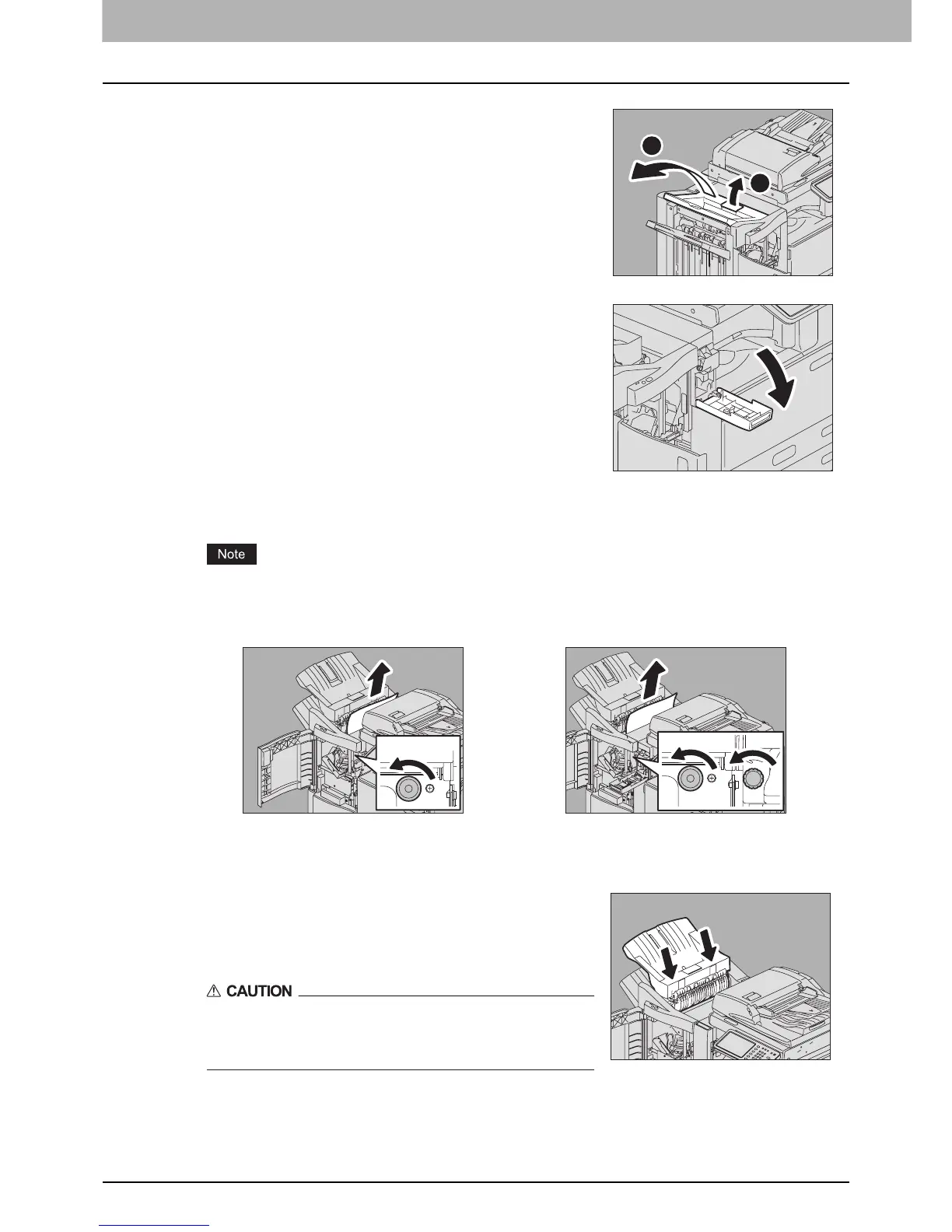

34 Clearing a Paper Misfeed
6
Turn the knob shown in the following figures to send the paper, and then remove the
misfed paper.
When the Hole Punch Unit is installed, open the front cover of the finisher and turn the 2 knobs at
the same time.
Some misfed paper may get inside of the Saddle Stitch unit depending on the location where the
misfeeding occurs. In this case, follow step 7.
4
Raise the lever and open the upper receiving tray of
the finisher.
5
Open the cover of the Hole Punch Unit when it is
installed.
7
Close the upper receiving tray of the finisher.
Place your hands on the near and far side of the lever and push
to
close the tray until it clicks.
Be careful not to let your fingers be caught between the
finisher body and the upper tray of the finisher.
This could injure you.
2
1
When the Hole Punch Unit is not installed
When the Hole Punch Unit is installed
To Next Page
