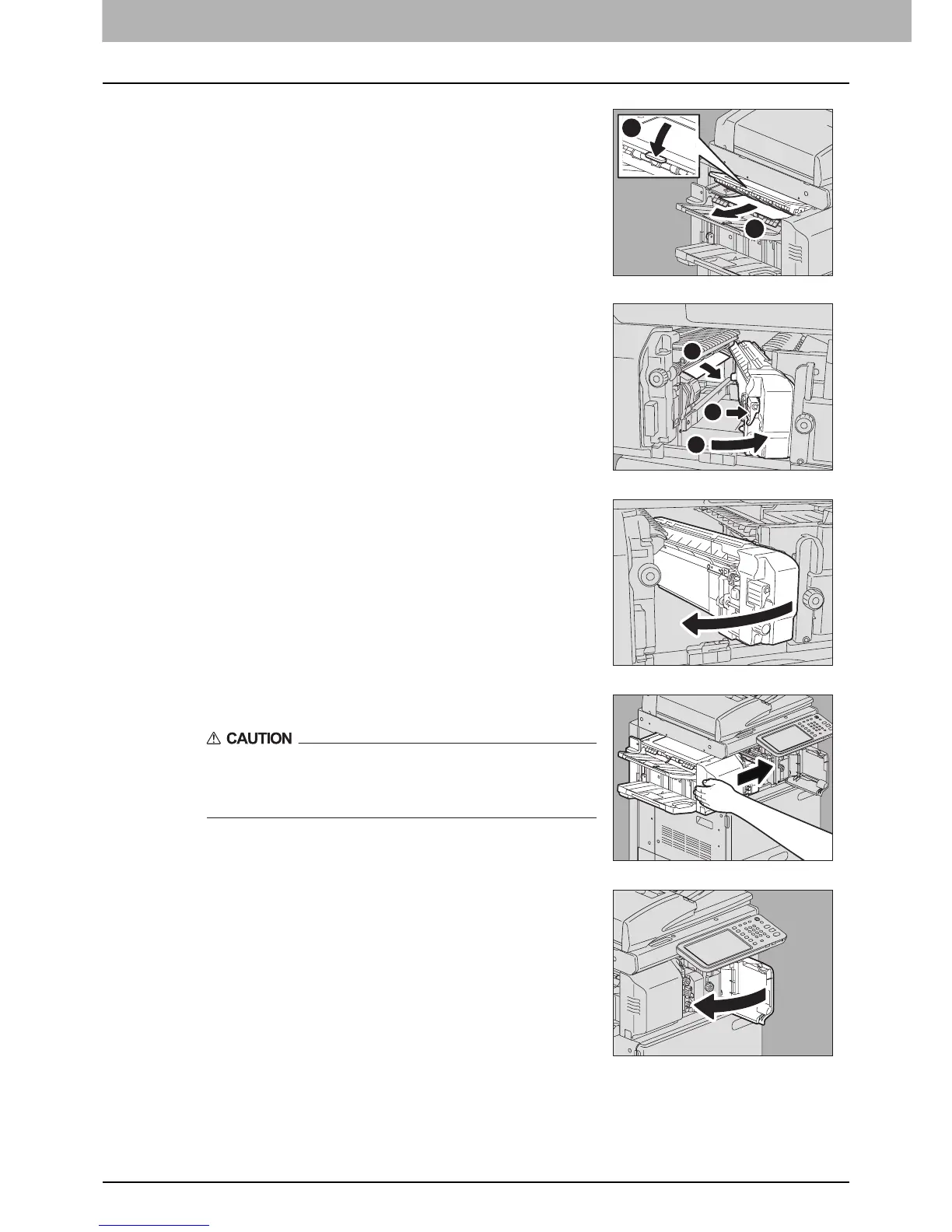

1 TROUBLESHOOTING FOR THE HARDWARE

40 Clearing a Paper Misfeed

Remove the misfed paper and then close the upper

cover.

While holding the green lever, open the Hole Punch

Unit to remove the misfed paper.

Return the Hole Punch Unit to its original position.

Carefully return the finisher to its original position.

Do not put your hand or fingers on the top of the

finisher when closing it.

They could be caught and this could injure you.

Close the front cover of the finisher.
