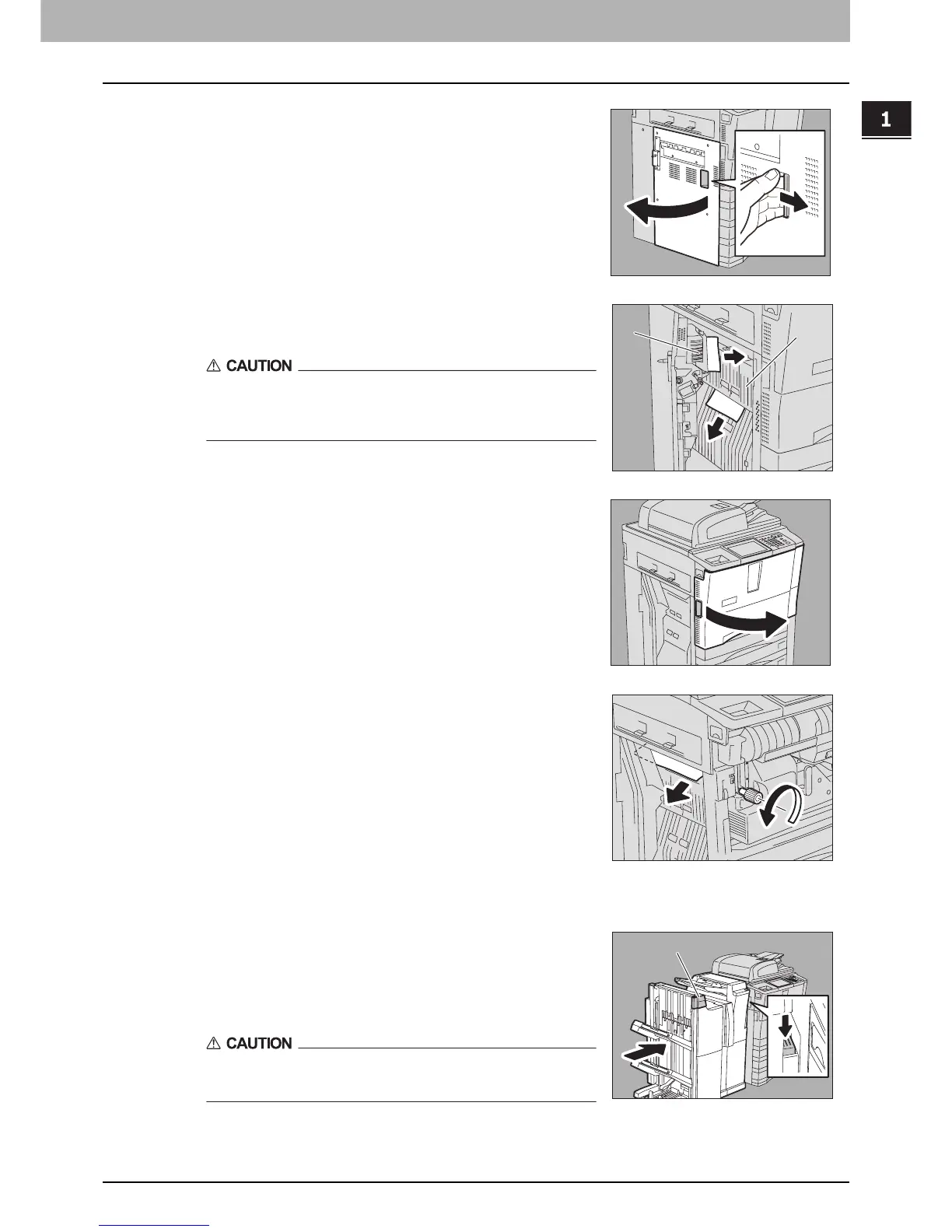

1.TROUBLESHOOTING FOR THE HARDWARE
Clearing a Paper Misfeed 27
1 TROUBLESHOOTING FOR THE HARDWARE
14
Close the exit cover.
10
Open the exit cover.
11
Remove paper that sticks out from the paper exit
cover side and middle of the reverse unit.
Do not touch the metal portion of the reverse unit (A in the
figure) or the guide plate (B in the figure).
It could burn or injure you.
12
Open the front cover of the equipment.
13
Turn the green dial of the fuser unit counterclockwise
to remove the misfed paper.
15
When the finisher is installed, connect it with the
equipment.
Connect the finisher with the equipment while pressing the lock lever.
Place your hand on portion A in the figure and then move the finisher
carefully.
Be careful not to let your fingers be caught between the
finisher and the equipment.
B
A
A
To Next Page
