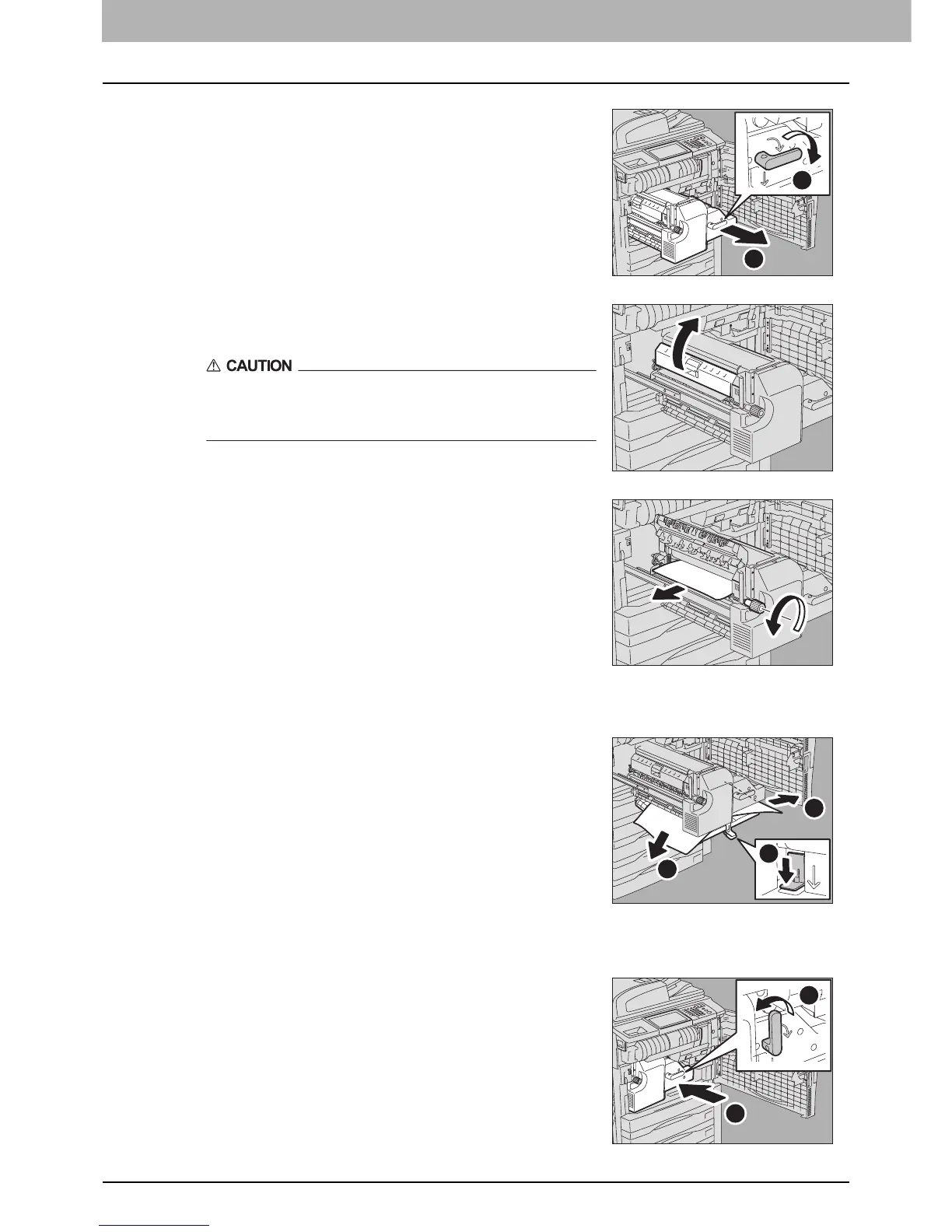

28 Clearing a Paper Misfeed
19
Close the fuser unit cover slowly.
21
Close the guide.
16
Turn the lever of the transfer/transport unit clockwise
by 90 degrees to unlock it. Then pull out the transfer/
transport unit until it stops.
17
Hold the green lever and raise the fuser unit cover to
open it.
Do not touch the fuser unit and around the metal area around
it.
It could burn or injure you.
18
Turn the green dial of the fuser unit counterclockwise
to remove the misfed paper.
20
Push the guide down while holding the green lever
and remove the misfed paper.
22
Push the transfer/transport unit into the equipment
carefully while holding its lever. Then turn the lever
counterclockwise by 90 degrees to lock it.
