ELECTRICAL ADJUSTMENTS

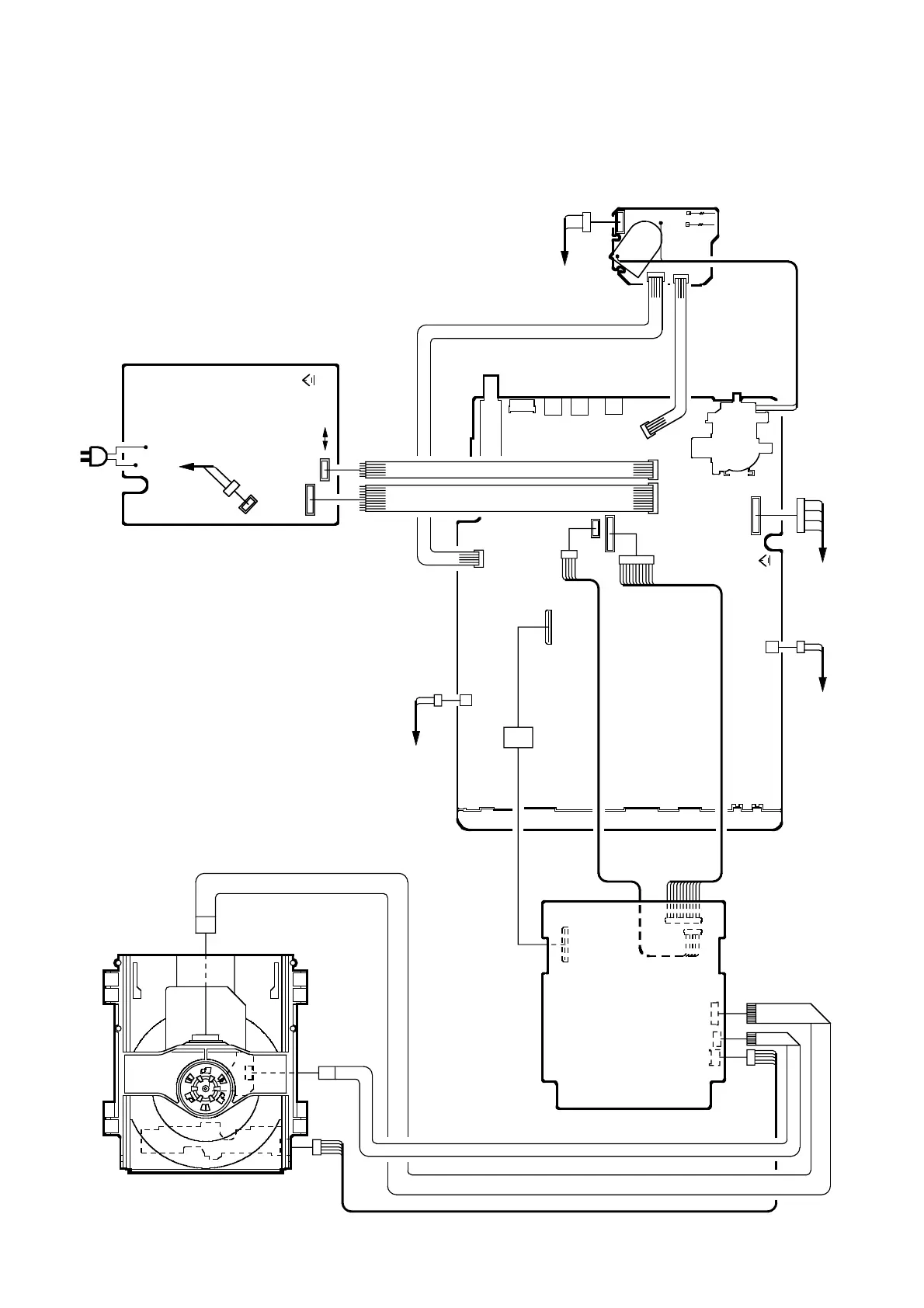

4. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION)
D-6
CRT PCB
VCR PCB
DECK CD
DVD PCB
CRT
SPEAKER
SPEAKER
AC IN
POWER PCB
CRT
CRT
J801
TP024
TP022
CP805
CP802B
CP803B
CP3800
CP3803
CP3802
TP3801
VR3800
FB401
TU001
CP101
J4203
J4202
J4201
CP402
CP8004
CP401
VR402
CP802A
CP8005
CP8001
CP8002
CP302
CP301
CP803A
CP8502
CD8501
CD8502
CP2601
CP2301
CP2302
CD805
CD802
CD803
L3800
CD402
CD8001
CD301
CD8002
CD302
CD2301
CD2601
CD2302
24
26
Table of Contents
Default Chapter
2
Caution
2
Important Safeguards
3
Disc Removal Method at no Power Supply
5
Table of Contents
6
General Specifications
7
1 Removal of Mechanical Parts and P.C. Boards
13
Disassembly Instructions
13
2 Removal of Anode Cap
15
Removal and Installation of Flat Package IC
16
Service Mode List
18
Confirmation of Using Hours
19
When Replacing Eeprom(Memory) IC
19
Power
20
Tv
20
Electrical Adjustments
20
DVD
20
Deflection
25
Stereo
25
Crt
25
Av Sw
25
Mechanical Replacement Parts List
28
Electrical Replacement Parts List
29
