DISASSEMBLY INSTRUCTIONS
B2-1
Loader Ass'y
Check Hook
2. REMOVAL OF DVD DECK PARTS
2-1: TRAY (Refer to Fig. 2-1-A)
Set the Tray opened. (Refer to the DISC REMOVAL
METHOD AT NO POWER SUPPLY)
Unlock the 2 supports 1 and remove the Tray.
1.
2.

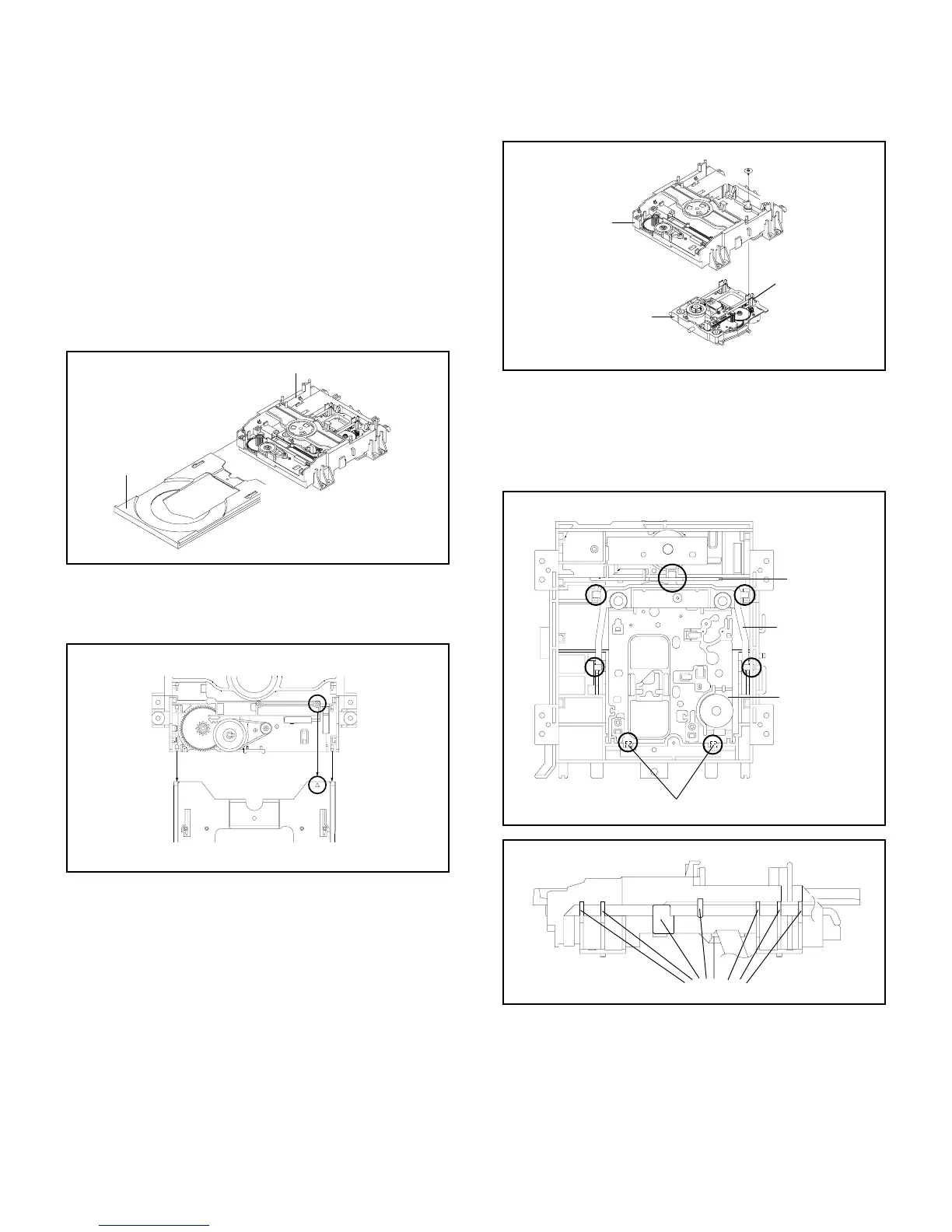

Fig. 2-1-A
Tray
Loader Ass'y
1
NOTE
1.
In case of the Tray installation, install them as the circled
section of Fig. 2-1-B so that the each markers are met.
2-2: TRAVERSE ASS'Y (Refer to Fig. 2-2-A)
Remove the screw 1.
Unlock the 2 supports 2.
Remove the Insulator (R) from the Loader Sub Ass'y.
Remove the Traverse Ass'y.
1.
2.
3.
4.
Fig. 2-2-A
Tray
Loader Ass'y
Fig. 2-1-B
Insulator (R)
NOTE
1. Disassemble only the DVD DECK PARTS parts listed
here. Minute adjustments are needed if the disassembly
is done. If the repair is needed except listed parts, replace
the DVD MECHA ASS'Y.
1
1
2
Loader Sub Ass'y
Traverse Ass'y
2
• Screw Torque: 2.0 ± 0.5kgf•cm
NOTE
1.
2.
In case of the Traverse Ass'y, install it from (1) to (4) in
order. (Refer to Fig. 2-2-B)
In case of the Traverse Ass'y installation, hook the wire
on the Loader Ass'y as shown Fig. 2-2-C.
Fig. 2-2-B
Fig. 2-2-C
(1)
(2)
(3)
(3)
(4)
(3)
Check Lock
(4)
Traverse Ass'y
Rack Loading
Loader Ass'y (Bottom Side)
Holder Traverse
To Next Page
