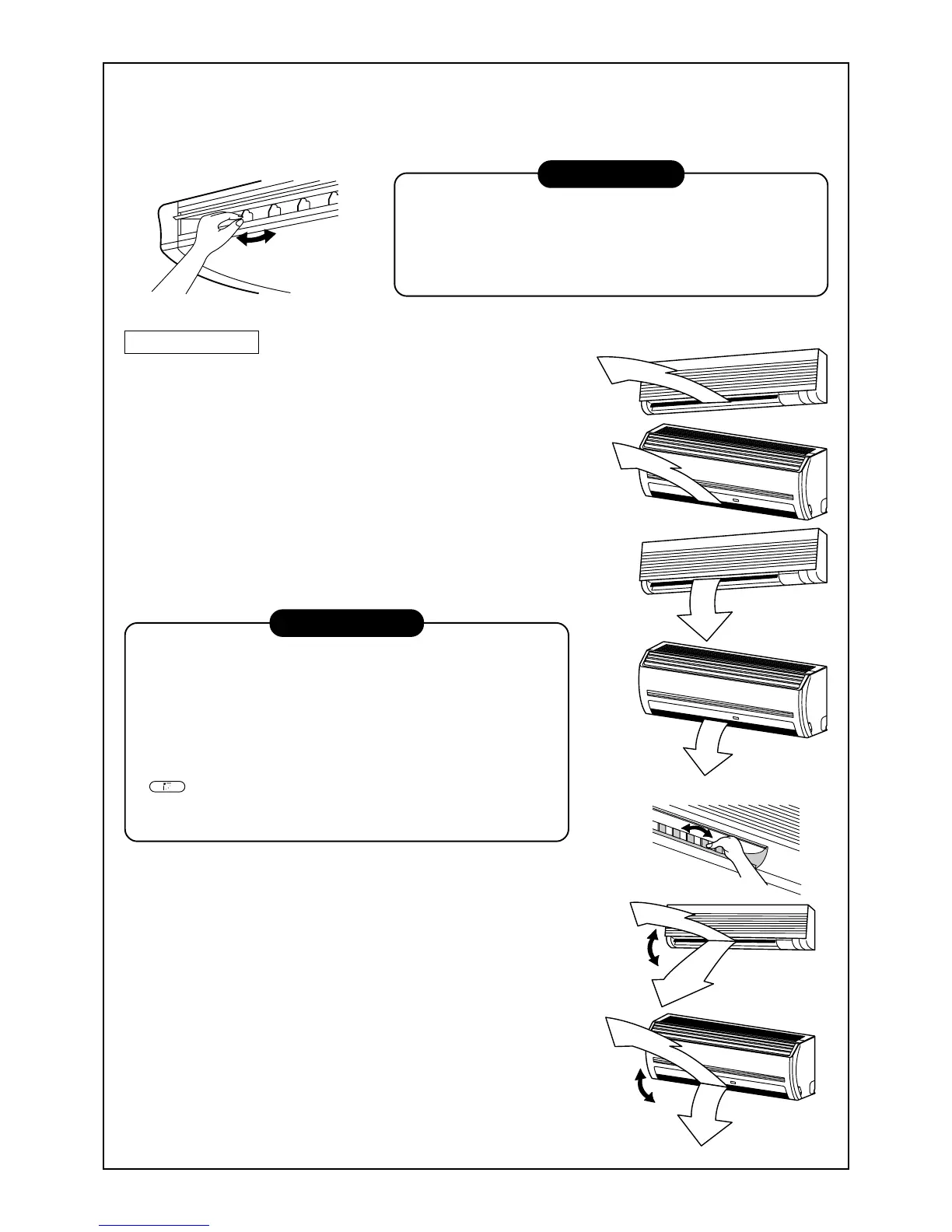

Right/Left air direction adjustment
To change the air outlet direction to right or left side, set the vertical flap inside of the horizontal flap to the
desired direction.
INFORMATION
• If cooling operation is performed with downward discharge,
dew may fall on surface of the cabinet or the horizontal flap
resulted in dripping.
• If heating operation is performed with horizontal discharge,
unevenness of temperature may increase in the room.
High Wall Type
Adjustment of air direction upward/downward
[In Cooling operation]
In cooling operation, use the horizontal flap with horizontal set point
so that the cold air diffuses in whole room.
[In Heating operation]
In heating operation, use the horizontal flap with downward set point
so that the hot air blows at the foot.
REQUIREMENT
• If cooling operation is performed with downward air outlet, dew
may fall on surface of the cabinet or the horizontal flap resulted
in dripping.
• If heating operation is performed with horizontal air outlet,
unevenness of temperature may increase in the room.
• Do not move the horizontal flap directly with hands; otherwise a
trouble is caused. Select direction of the horizontal flap using
SWING/FIX
switch on the remote controller. The horizontal flap does
not stop immediately even if the switch is pushed. Adjusting the
stop position, push the switch.
Adjustment of air direction rightward/leftward
To change the air outlet direction to right or left side, set the vertical
flap inside of the horizontal flap to the desired direction.
Setup of air direction and swinging
1H series: Refer to description of “2-way Air Discharge Cassette
Type”.
2H series: Refer to description of “Under Ceiling Type, 1-way Air
Discharge Cassette Type (2SH Series)”.
