Toshiba MMY-MAP0802FT8-E - Passive Filter Circuit Detachment and Assembly; Removing Rear Panel and Passive Filter Box; Passive Filter Box Internal Check

22
Passive filter box
Connector
(YELLOW)
Relay connector
(WHITE)
Electrolytic
capacitor board
Diode
rectifier
+
~
Reactor
CN01
RED BLUE YELLOW
YELLOW
RED WHITE
Resistor
No.
10
Part name
Passive filter
(Continued)

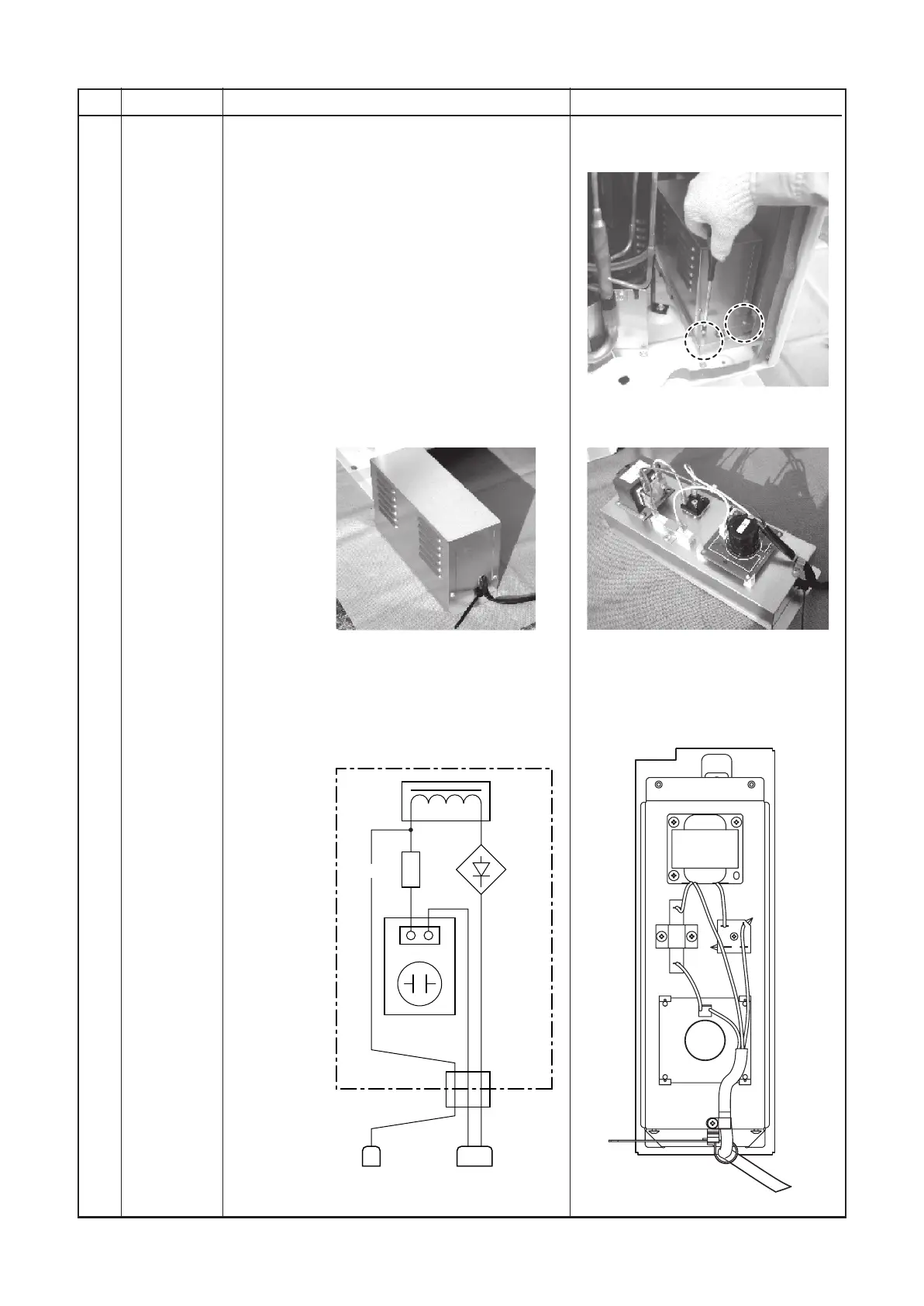

Work procedure
9) Remove rear panel. (Screw M5 × 10 , 7pcs)
10) Remove the screw which is fixing the passive
filter box. (Screw M4 × 10 , 2 pcs) <Fig.6>
11) Take out the passive filter box outside. <Fig.7>
12) Remove The lid of the passive filter box.
(Screw M4 × 10 , 4pcs) <Fig.8>
13) Check the short circuit of each part, and
opening. And correct the fault parts.
Remarks
<Fig.6>
<Fig.7> <Fig.8>
<Fig.9> <Fig.10>
