Toshiba MMY-MAP0802FT8-E - Passive Filter Circuit Detachment and Assembly; Reassembling the Passive Filter Box; Connector Connection Verification

23
Hooks
Box
Base
No.
10
Part name
Passive filter
(Continued)
Work procedure
<Assembly>
Assembling by contrary procedure of above
10) → 12).
Is connector of the power supply P.C. board for
fan connected?
Connector No.: CN501, CN502, CN503,
CN505, CN506, CN507
Power supply P.C. board A’SSY for Fan:
MCC-1439
Is the passive filter connector connected?
<Fig. 9> (DC260 to DC340V)
Notice

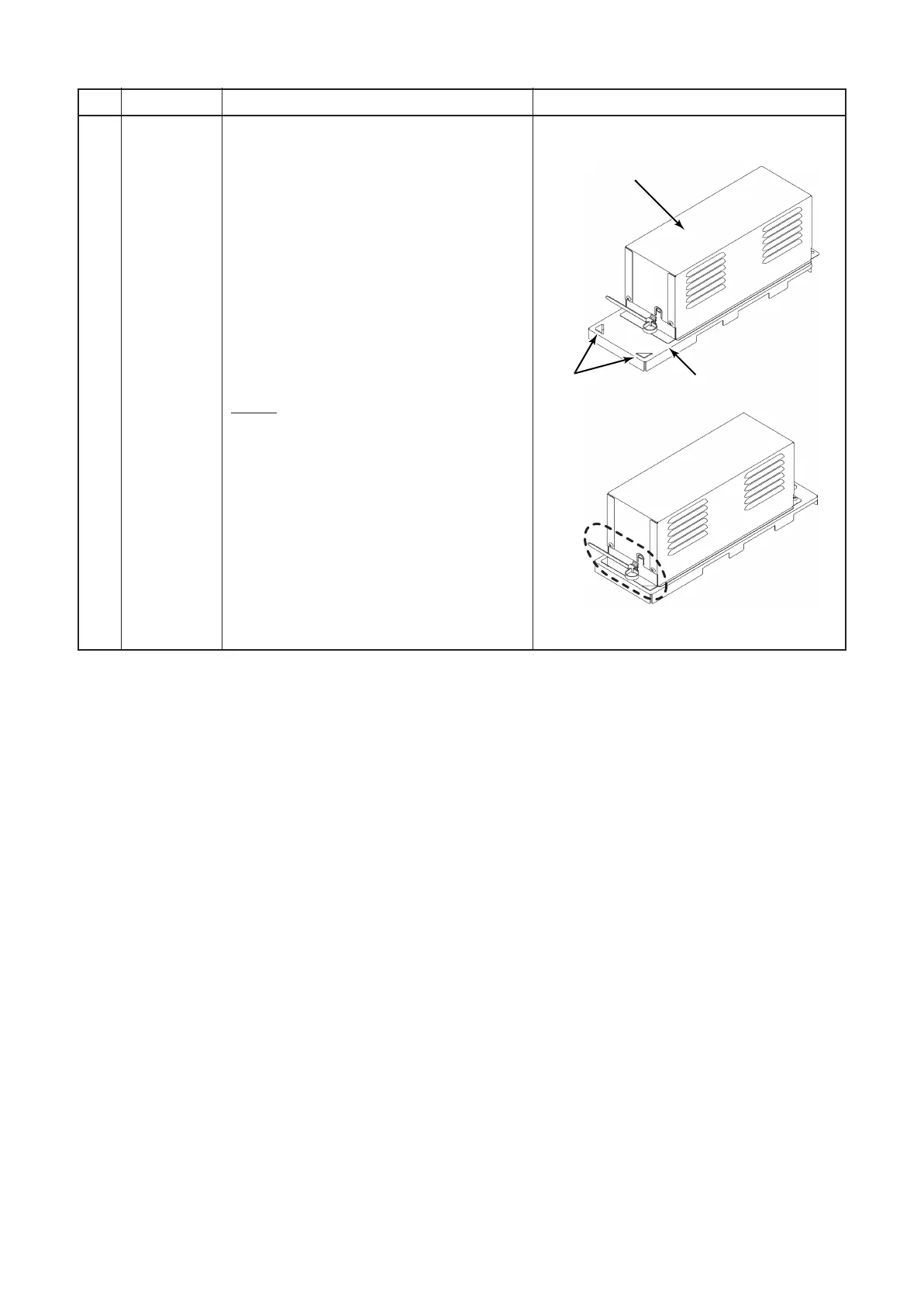

When a box fixed, it hooks on the hook of
base. <Fig.11>
Remarks
<Fig.11>
