1.
2.
3.
4.
5.
Remove the TV/DVD/VCR block from the main unit and the Fig. 1 below can be seen.
(Refer to item 1 of the DISASSEMBLY INSTRUCTIONS.)
Remove the screw 1 of the Deck Chassis and remove the Loading Motor.
Rotate the Pinch Roller Cam in the direction of the arrow by hand to slacken the Video Tape.
(Refer to Fig. 2)
Rotate the Clutch Ass'y either of the directions to wind the Video Tape in the Cassette Case.
Repeat the above step 3~4. Then take out the Video Cassette from the Deck Chassis. Be careful not to
scratch on the tape.

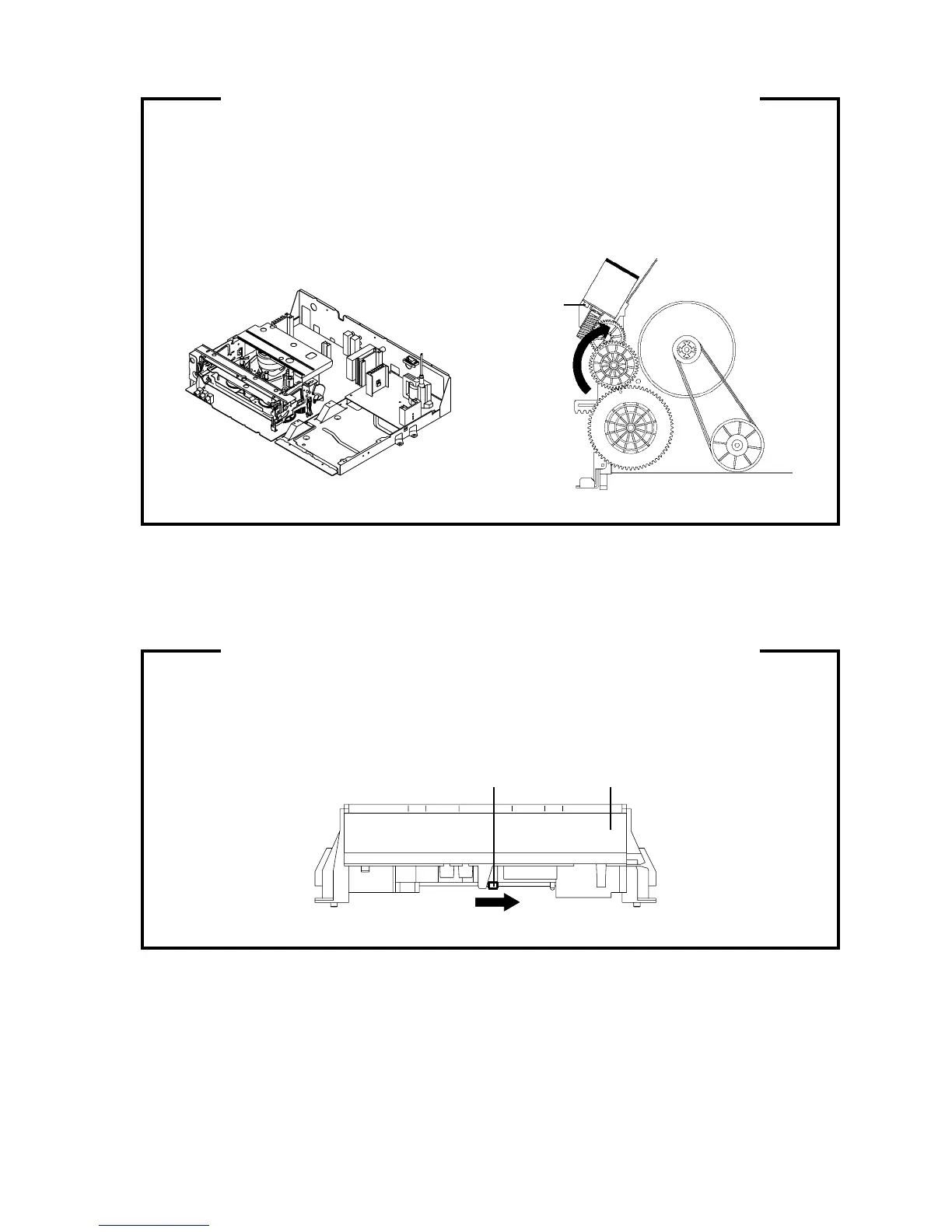

TAPE REMOVAL METHOD AT NO POWER SUPPLY
Fig. 1
Pinch Roller Cam
Main Cam
Clutch Ass'y
Main Chassis (Front Side)
Loading Motor
Screw 1
Capstan DD Unit
Fig. 2
1.
2.
3.
Remove the Back Cabinet, TV//DVD/VCR Block and DVD TOP. (Refer to item 1 of the DISASSEMBLY
INSTRUCTIONS.)
Slide the Rack Loading (White) toward the arrow direction by using a minus driver to release the lock.
(Refer to Fig. 1)
Draw the Tray.
DISC REMOVAL METHOD AT NO POWER SUPPLY
Fig. 1
DVD Deck
Rack Loading
(White)
A1-6
To Next Page
