Toshiba MW24FP1 Service Manual

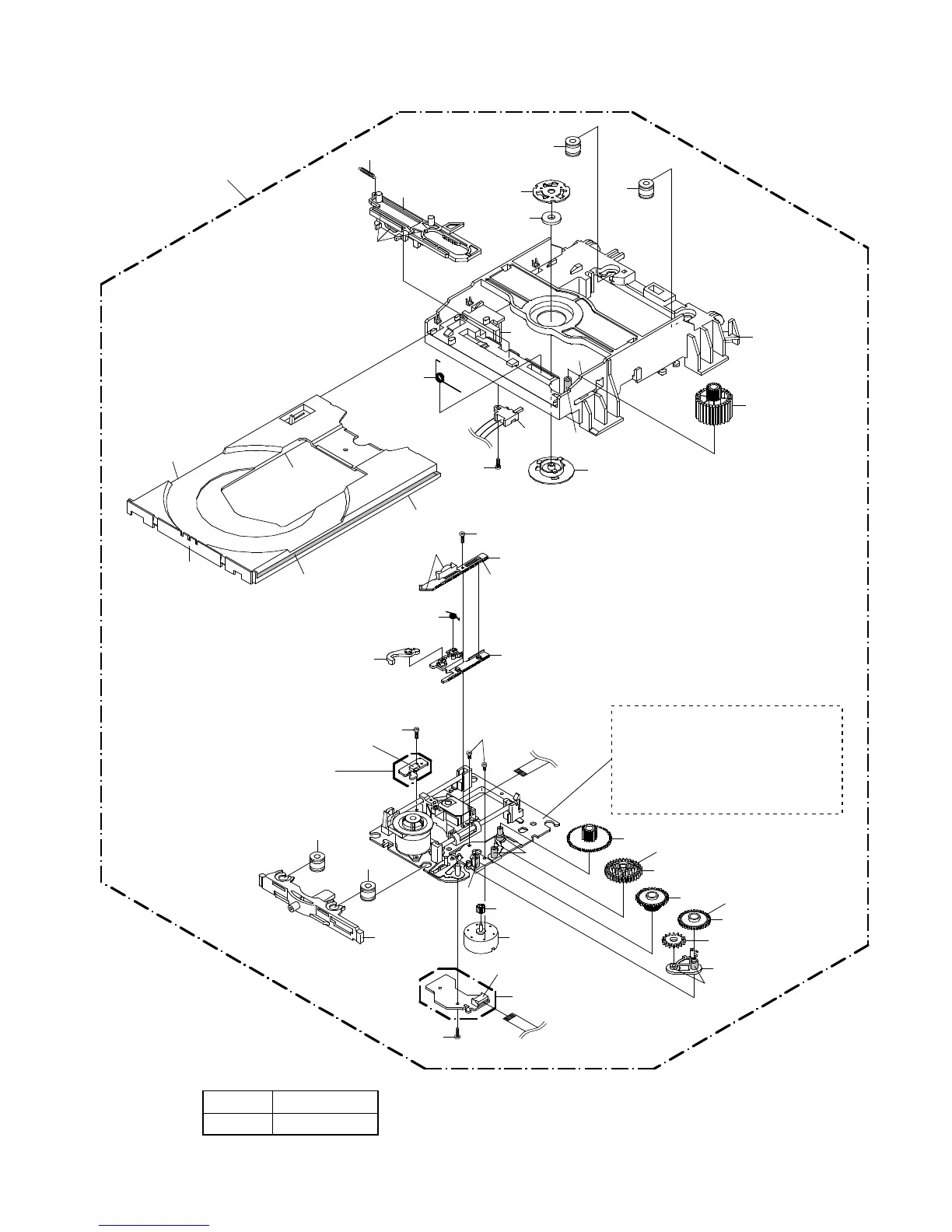

DVD DECK EXPLODED VIEW
I3-1
606
612
619
606
613
614
616
617
701
618
615
600
AA
AA
AA
AA
AA
AA
AA
SW1
CD2302
704
621
M2602
622
623
620
609
611
607
AA
AA
AA
AA
PCB68A
(RELAY PCB ASS'Y)
702
AA
705
603
610
604
602
AA
AA
605
601
605
703
PCB640
(SW PCB ASS'Y)
CD2001
CD2301
Do not replace the parts. Because,
minute adjustments are needed if
this condition is disassembled
further more.
If the repair is needed, replace the
DVD MECHA ASS'Y.
CP1
SW2
AA
608
Applying positions AA for the grease are
displayed for this section.
Check if the correct grease is applied for each
position.
NOTE:
CLASS
GREASE
MARK
AA
