User’s Manual EN-13
dynadock™
Back panel

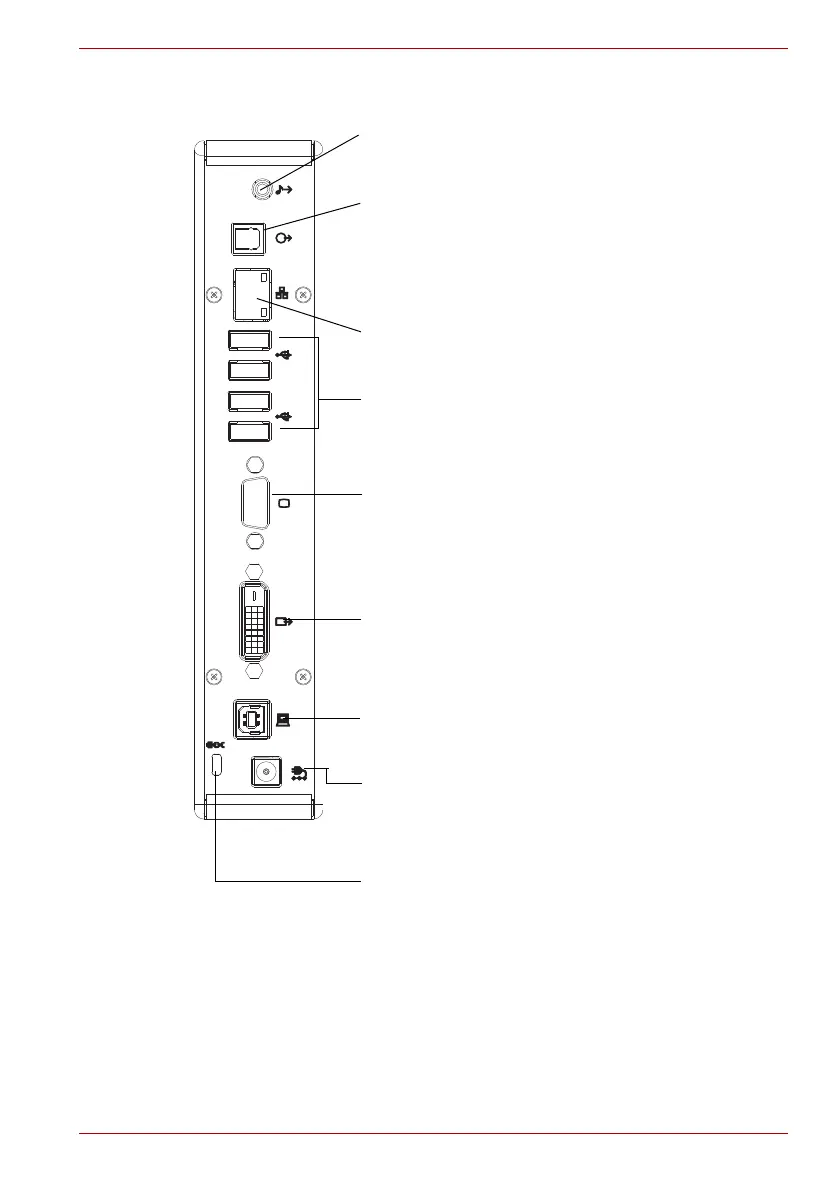

(Sample Illustration) Connections on the back of the dynadock
DC IN 15V
3.5mm stereo lineout port: For connection to stereo
speakers.
0ptical S/PDIF digital audio output port: Use an optical
S/PDIF cable (not provided) to connect to your digital
audio equipment, e.g, Dolby
®
Digital Surround Sound
receiver and speaker system. To use this connection, your
receiver must have an optical S/PDIF input.
10/100 BASE-TX Ethernet: For connection to the
Ethernet network via a network cable (not provided).
4 USB 2.0 ports (A type female connector): For
connection to USB peripherals.
VGA video output port: For connection to a VGA
monitor.
Please note, you can only use one video port at a time.
DVI-D video output port: For connection to a DVI
monitor.
USB Upstream Connector: Connects and dynadock to
the computer.
Cable Lock Slot: Allows you to connect a cable lock to
help prevent theft.
DC-IN: For connection to the provided AC power adaptor.
The dynadock always needs an external power supply for
operation, as it does not take power from the USB bus of
the computer.
