User’s Manual 2-5
Qosmio F60 Series
Underside
The following figure shows the underside of the computer. You should
ensure that the display is closed before the computer is turned over to
avoid causing any damage.

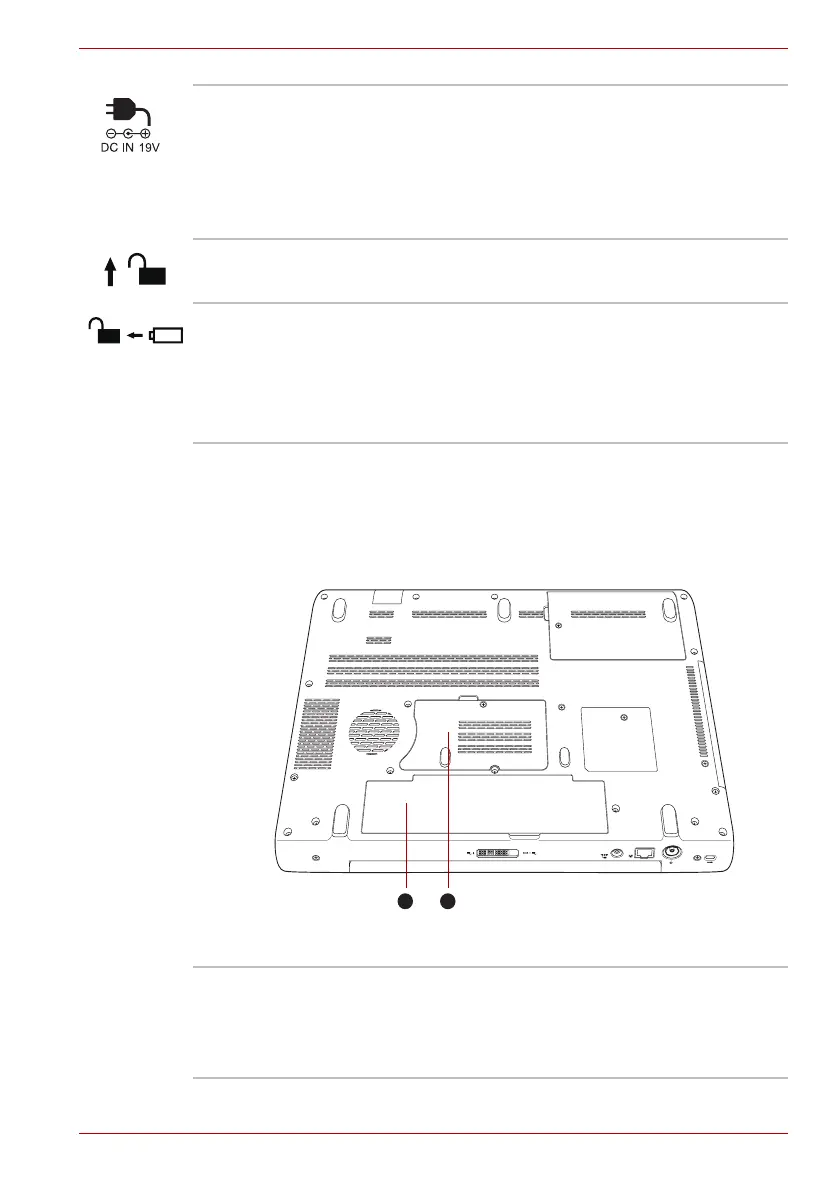

Figure 2-5 The underside of the computer
DC IN 19V jack The AC adaptor connects to this jack in order to
power the computer and charge its internal
batteries. Please note that you should only use
the model of AC adaptor supplied with the
computer at the time of purchase - using the
wrong AC adaptor can cause damage to the
computer.
Battery safety lock Slide this latch into its “Unlock” position in order
to release the battery pack ready for removal.
Battery release latch Slide and hold this latch into its “Unlock” position
in order to release the battery pack ready for
removal.
For more detailed information on removing the
battery pack please refer to Chapter 6, Power
and Power-Up Modes.
1
2
1. Battery pack
2. Memory module slots
Battery pack The battery pack provides power to the computer
when the AC adaptor is not connected. For more
detailed information on the use and operation of
the battery pack please refer to Chapter 6, Power
and Power-Up Modes.
