3
Toshiba 1108651075 (EN)
EN
5 m
5 m
45°
45°
75°
* 7 m
7 m
INDOOR UNIT
Installation Place
• A place which provides the spaces around the indoor unit as
shown in the diagram
• A place where there are no obstacles near the air inlet and outlet
• A place which allows easy installation of the piping to the outdoor
unit
• A place which allows the front panel to be opened
CAUTION
• Direct sunlight to the indoor unit’s wireless receiver should be
avoided.
• The microprocessor in the indoor unit should not be too close
to RF noise sources.
(For details, see the owner’s manual.)
(Top view)
* : Axial distance
Reception
range
Reception range
Remote
control
Indoor unit
Remote control
(Side view)
Remote control
• A place where there are no obstacles such as a curtain that may
block the signal from the indoor unit
• Do not install the remote control in a place exposed to direct
sunlight or close to a heating source such as a stove.
• Keep the remote control at least 1 m apart from the nearest TV
set or stereo equipment. (This is necessary to prevent image
disturbances or noise interference.)
• The location of the remote control should be determined as
shown below.

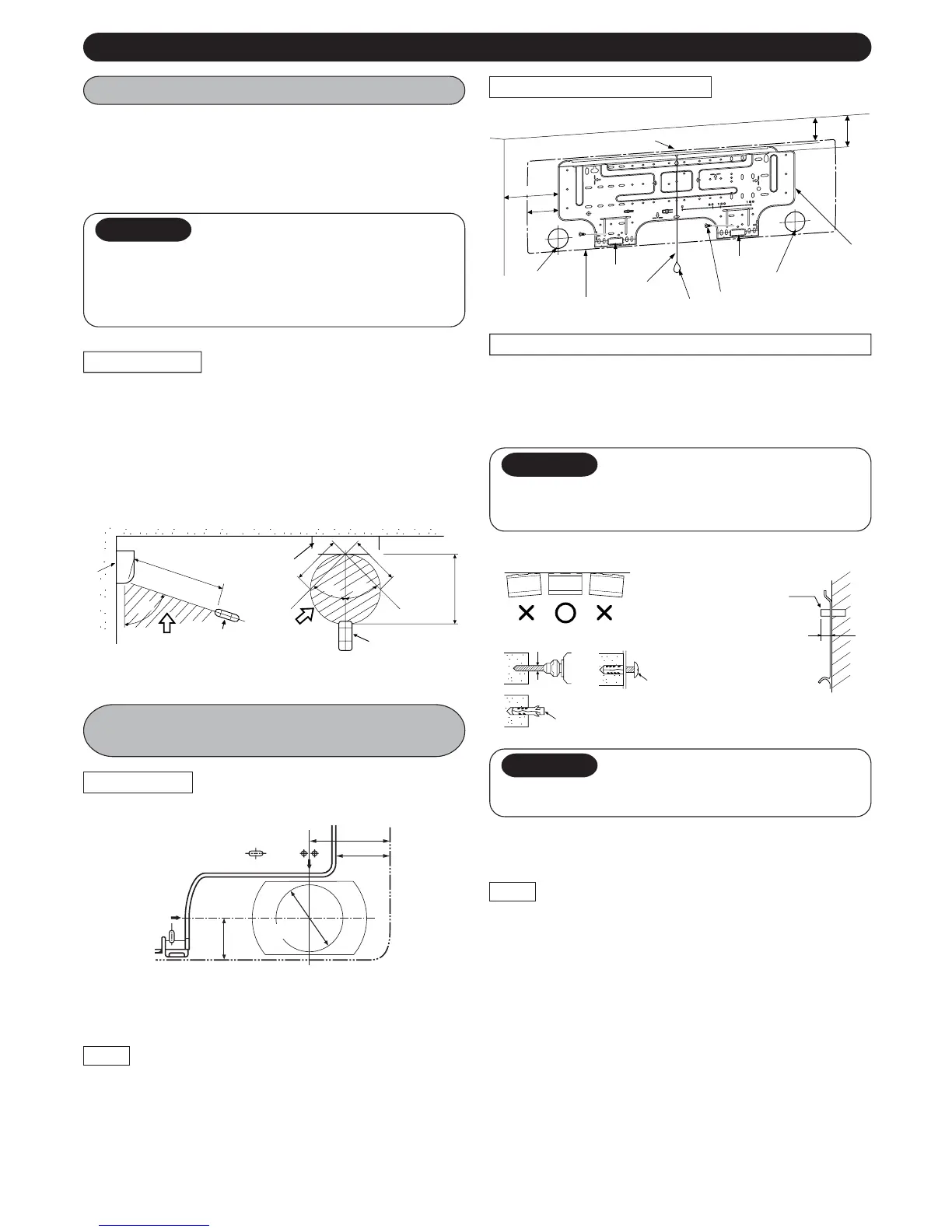

Cutting a hole
When installing the refrigerant pipes from the rear
The center of the pipe hole is above the arrow.
Cutting a Hole and Mounting
Installation Plate
NOTE
• When drilling a wall that contains a metal lath, wire lath or metal
plate, be sure to use a pipe hole brim ring sold separately.
1.After determining the pipe hole position on the mounting plate
(A), drill the pipe hole (∅65 mm) at a slight downward slant to
the outdoor side.
Mounting the installation plate
Pipe hole
35
65
55.5
120
Indoor unit
Thread
Hook
Weight
Pipe hole
7 Mounting screw
Hook
Hook
1
Installation
plate
Indoor unit
When the installation plate is directly mounted on the wall
1.Securely fit the installation plate onto the wall by screwing it in the
upper and lower parts to hook up the indoor unit.
2.To mount the installation plate on a concrete wall with anchor
bolts, use the anchor bolt holes as illustrated in the below figure.
3.Install the installation plate horizontally in the wall.
CAUTION
When installing the installation plate with a mounting screw,
do not use the anchor bolt holes. Otherwise, the unit may fall
down and result in personal injury and property damage.
Installation plate
(Keep horizontal direction.)
CAUTION
Failure to firmly install the unit may result in personal injury and
property damage if the unit falls.
• In case of block, brick, concrete or similar type walls, make 5 mm
dia. holes in the wall.
• Insert clip anchors for appropriate mounting screws 7.
Projection
15 mm or less
Anchor bolt
NOTE
• Secure four corners and lower parts of the installation plate with
4 to 6 mounting screws to install it.
Clip anchor
(local parts)
5 mm dia. hole
7 Mounting screw
∅4 x 25
ss
ss
s
90 mm
66 mm
65 mm
42 mm
Pipe hole
To Next Page
