Toshiba RAS-07NKHD-E - Outdoor Unit Compressor Capacitor Replacement; Outdoor Unit Fan Motor Capacitor Replacement

FILE NO. SVM-04022
– 76 –
1) Perform the common procedure 1.
2) Remove the fixing screw and the capacitor
band.
(1 Screw ∅4 x 8L for 10UA, 13UA)
(1 Screw ∅4 x 10L for 07UA)
3) Disconnect the lead wires.
1) Perform the common procedure 1.
2) Remove the fixing screw.
(1 Screw ∅4 x 10L)
3) Disconnect the lead wires.
2 Capacitor for
compressor
3 Capacitor for
fan motor

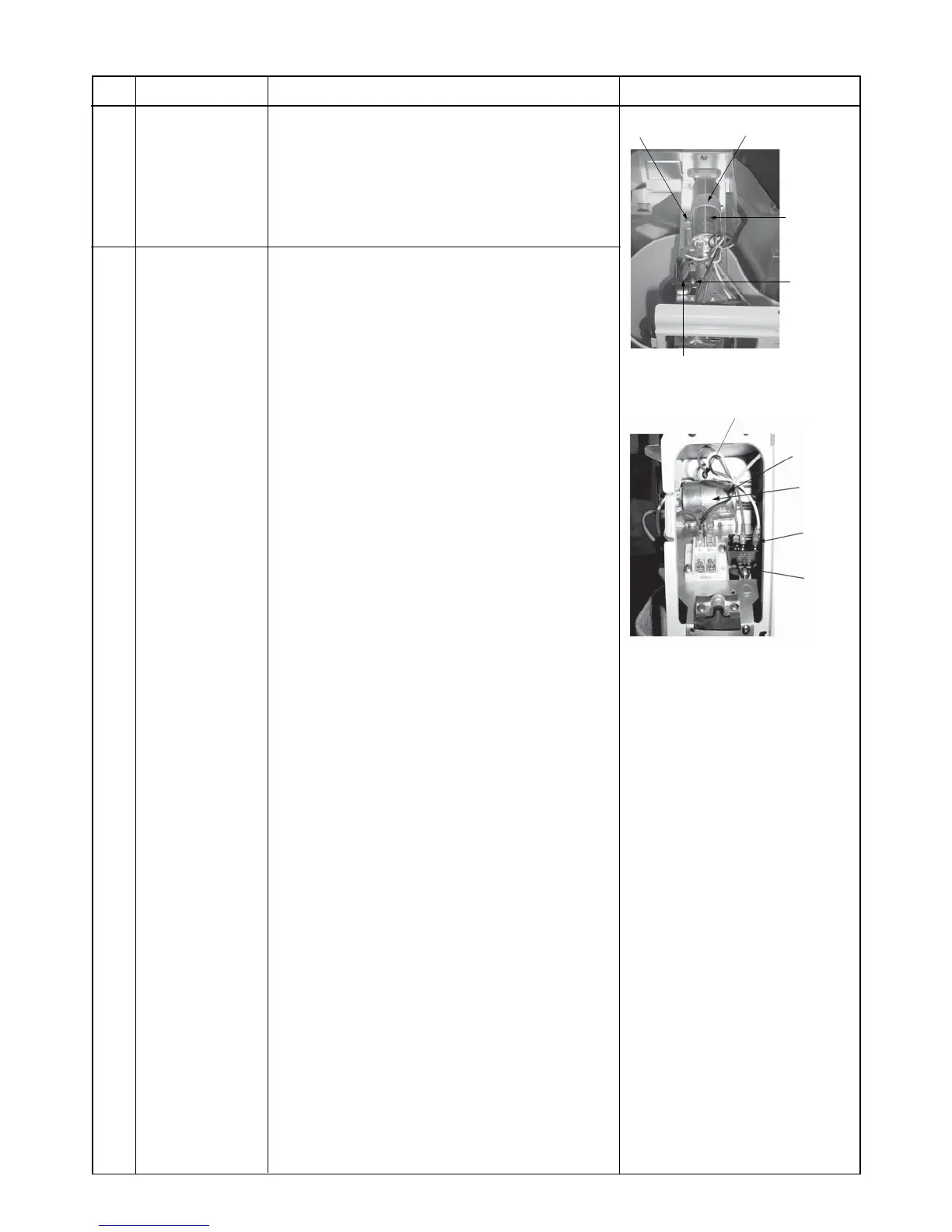

No. Part name Procedures Remarks
Capacitor
for
compressor
Screws
∅4 x 10L
Capacitor band
Capacitor for fan motor
Screws
∅4 x 10L
Screws ∅4 x 10L
Capacitor
for
compressor
Capacitor
band
Capacitor
for fan
motor
Screws
∅4 x 10L
RAS-10UA, 13UA
RAS-07UA
