10-4. Installation
CAUTION
Strictly comply with the following rules to prevent damage of the indoor units and human injury.
• Do not put a heavy article on the indoor unit or let a person get on it. (Even units are
packaged)
• Carry in the indoor unit as it is packaged if possible. If carrying in the indoor unit unpacked by
necessity, use buffering cloth or other material not to damage the unit.
• To move the indoor unit, hold the hooking brackets (4 positions) only.
• Do not apply force to the other parts (refrigerant pipe, drain pan, foamed parts, resin parts or
other parts).
• Hanging bolt pitch of air intake chamber side is different (centre position), make sure not to make
mistake to install the setting direction.
• Carry the package by two or more persons, and do not bundle it with plastic band at positions
other than specified.
• To install vibration isolation material to hanging bolts, confirm that it does not increase the unit
vibration.

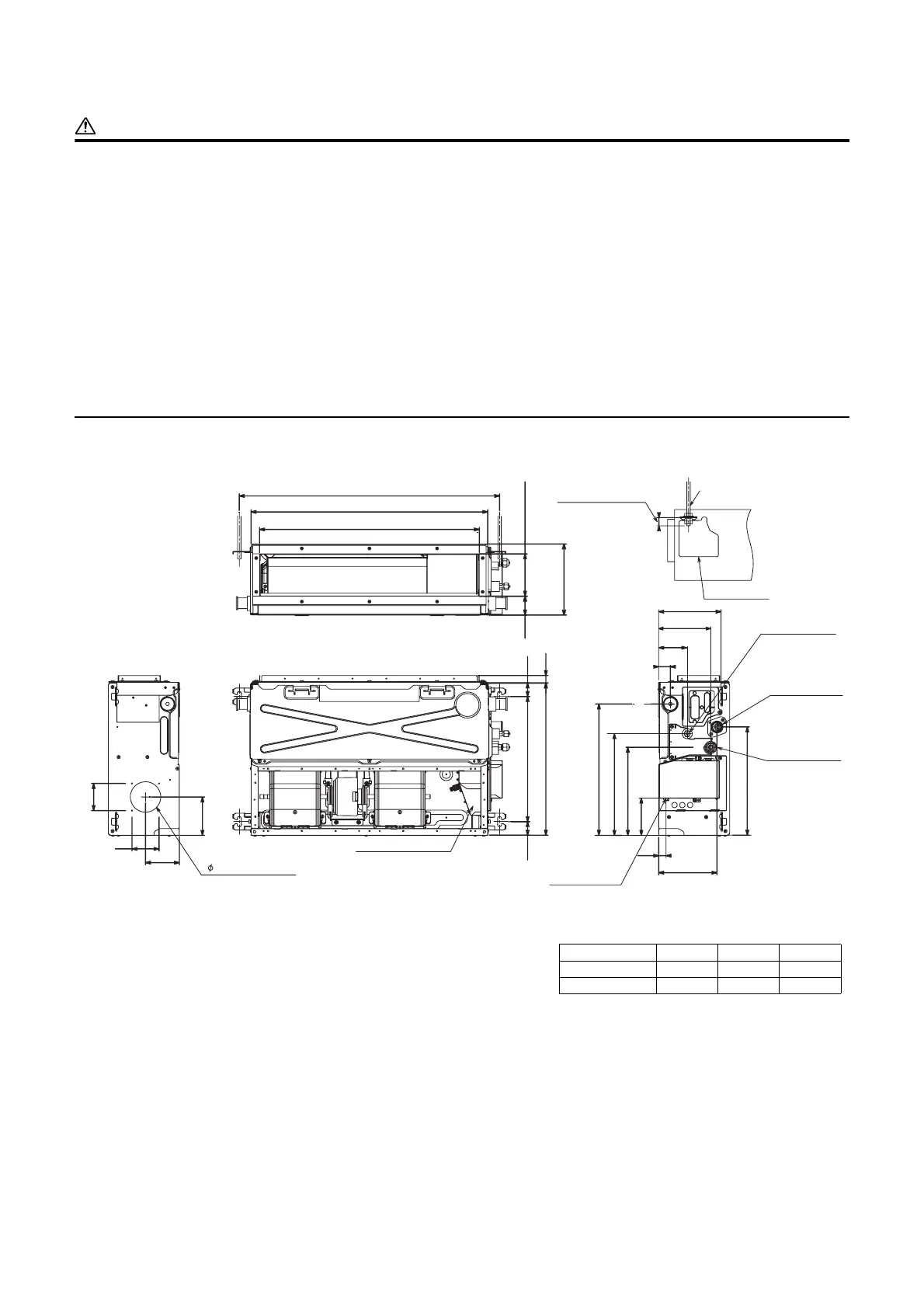

External dimensions
(Unit: mm)
Hanging bolt
Model typeABC
M07,10,13G3DV 770 700 650
M16G3DV 970 900 850
Hanging bolt pitch A
80
80
100
113
90 knockout hole
(For air taking-in)
40
Electrical control box
40
22
Hanging bolt pitch 370
Unit external dimension 450
Unit external dimension B
C
(Outside)
125 (Outside)
56
Unit external
dimension
210
25 or less
(Only the position of
an access cover.)
Access cover
187
155
58
388
300
260
110
320
37
173
Wires
drawing-out port
Refrigerant pipe
connecting port
(Liquid side)
Drain pipe
connecting port
Refrigerant pipe
connecting port
(Gas side)
35
(Unit: mm)
