2-6-1 E9NG0DEX

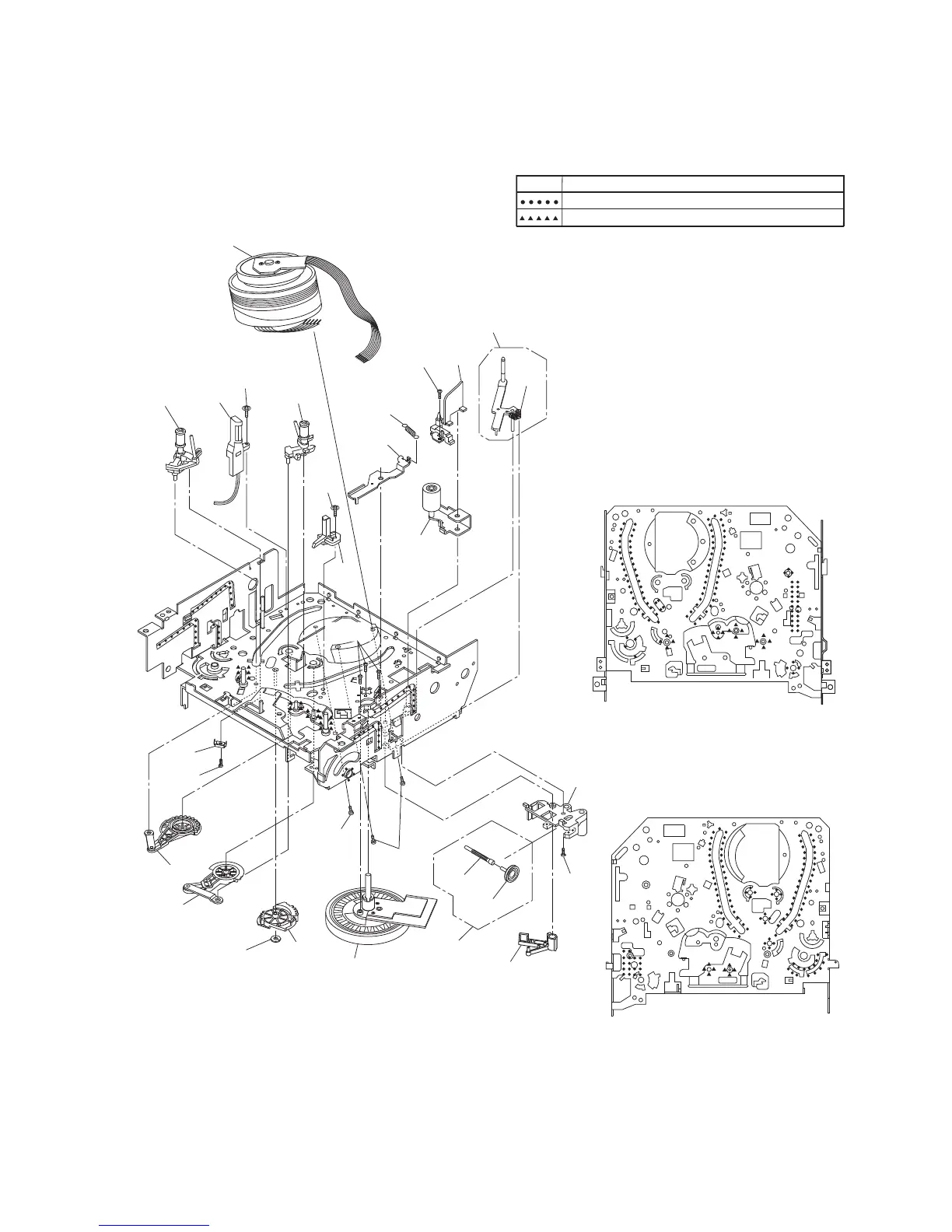

DECK EXPLODED VIEWS
Deck Mechanism View 1
Mark Description
Floil G-684G or Multemp MH-D
(Blue grease)
SLIDUS OIL #150
Some Ref. Numbers are not in sequence.
B12
B492
B11
B571
B37
B126
B8
B121
B86
B501
Chassis Assembly
Top View (Lubricating Point)
Chassis Assembly
Bottom View (Lubricating Point)
B35
B410
B411
B494
B567
B74
B553
B10
B73
B9
B2
B5
L1051
L1467
L1191
L1450
L1450
L1466
L1053
L1322
