1. Locking Tabs (L-1) and (L-2) are fragile. Be careful
not to break them.
1-1. Remove Screw (S-2).
1-2. Release five Locking Tabs (L-1).
1-3. Release three Locking Tabs (L-2) and
remove the Front Assembly.
2. Do not replace the DVD Mechanism or the DVD/
HDD MAIN BOARD Assembly separately, when
replacing the DVD Mechanism & DVD/HDD MAIN
BOARD Assembly. Order the new DVD
Mechanism & DVD/HDD MAIN BOARD Assembly.
2-1. Whenever you have replaced the HDD unit,
initialize the HDD unit. To initialize the HDD
unit, perform the following.To put the HDD &
DVD/VCR into the HDD mode, press the
[HDD] button on the remote control unit.
2-2. To put the HDD & DVD/VCR into the self-
check mode, after pressing [VARIABLE
SKIP] button, press the [3], [6], and [9]
buttons on the remote control in that order
within three seconds.
2-3. Press [ENTER] button. The HDD & DVD/
VCR is initialized and the power is turned off
automatically after two seconds.
3. When reassembling, solder wire jumpers as
shown in Fig. D8.
4. Before installing the Deck Assembly, be sure to
place the pin of LD-SW on the BOARD AV as
shown in Fig. D8. Then, install the Deck Assembly
while aligning the hole of Cam Gear with the pin of
LD-SW, the shaft of Cam Gear with the hole of LD-
SW as shown in Fig. D8.
(S-1)
(S-1)
(S-1)
(S-1)
(S-1)

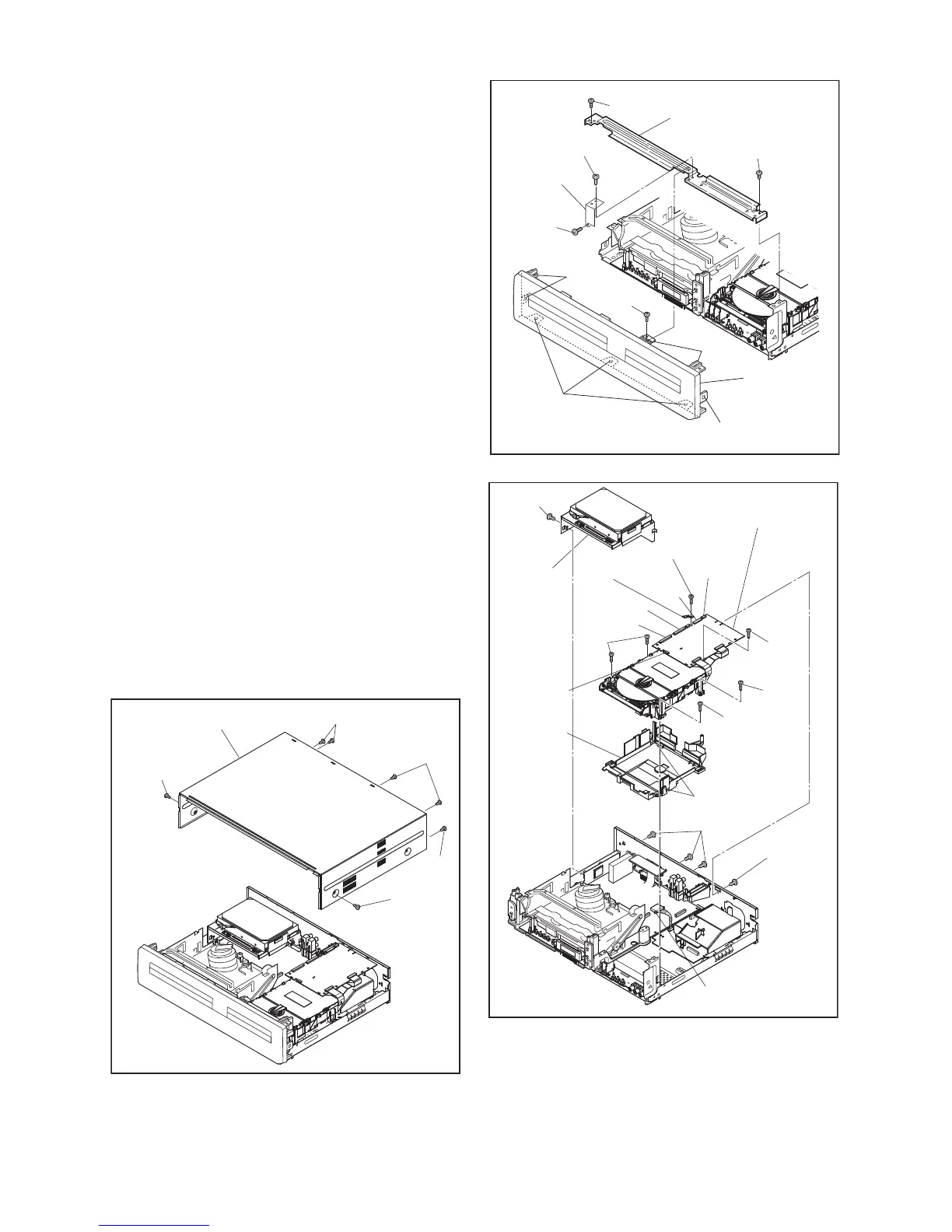

[1] Cover Top
Fig. D1
(S-4)
(S-4)
(L-1)
(L-2)
(L-1)
(S-3)
(S-4)
(S-2)
(L-1)
Fig. D2
Front
Support
[2] Front
Assembly
[3] Front Bracket
(S-6)
(S-10)
CN101
CN901
CN701
Mecha Plate
Earth
CN652
CN502-D
(S-5)
(S-8)
(S-7)
Connector
Dust Cover
Hook
Fig. D3
[4] HDD
Assembly
[5] DVD Mechanism &
DVD/HDD MAIN BOARD
Assembly
(S-9)
(S-9)
(S-8)
To Next Page
