3. How to Eject Manually
Note: When rotating the gear, be careful not to damage the gear.
1. Remove the Cover Top, Front Assembly, Front Bracket, DVD Mechanism & DVD/HDD MAIN BOARD
Assembly.
2. Remove the Dust Cover.
3. Rotate the gear in the direction of the arrow manually as shown below.
(S-28)
(S-28)
(S-29)
(S-30)
DV PlateEarth
DV Cable
(S-31)

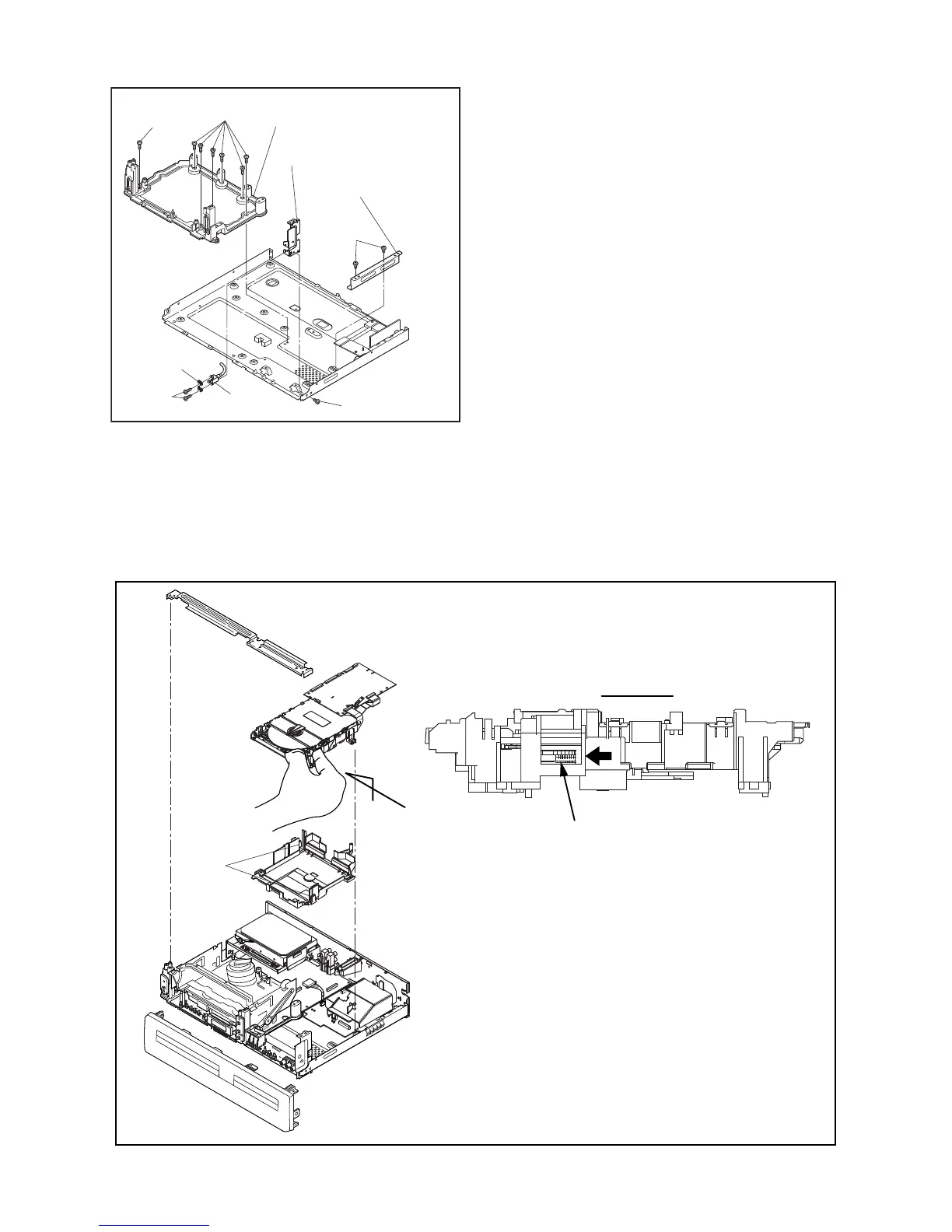

Fig. D9
[21] Deck Pedestal
[23] Bracket R
[22] Front Bracket R
Rotate this gear in
the direction of the arrow
Hook
View for A
A
