3.1 Twisted-Pair Cabling
3
3.1.1 Twisted-pair cable transmission line installation
Install twisted-pair cables as follows:

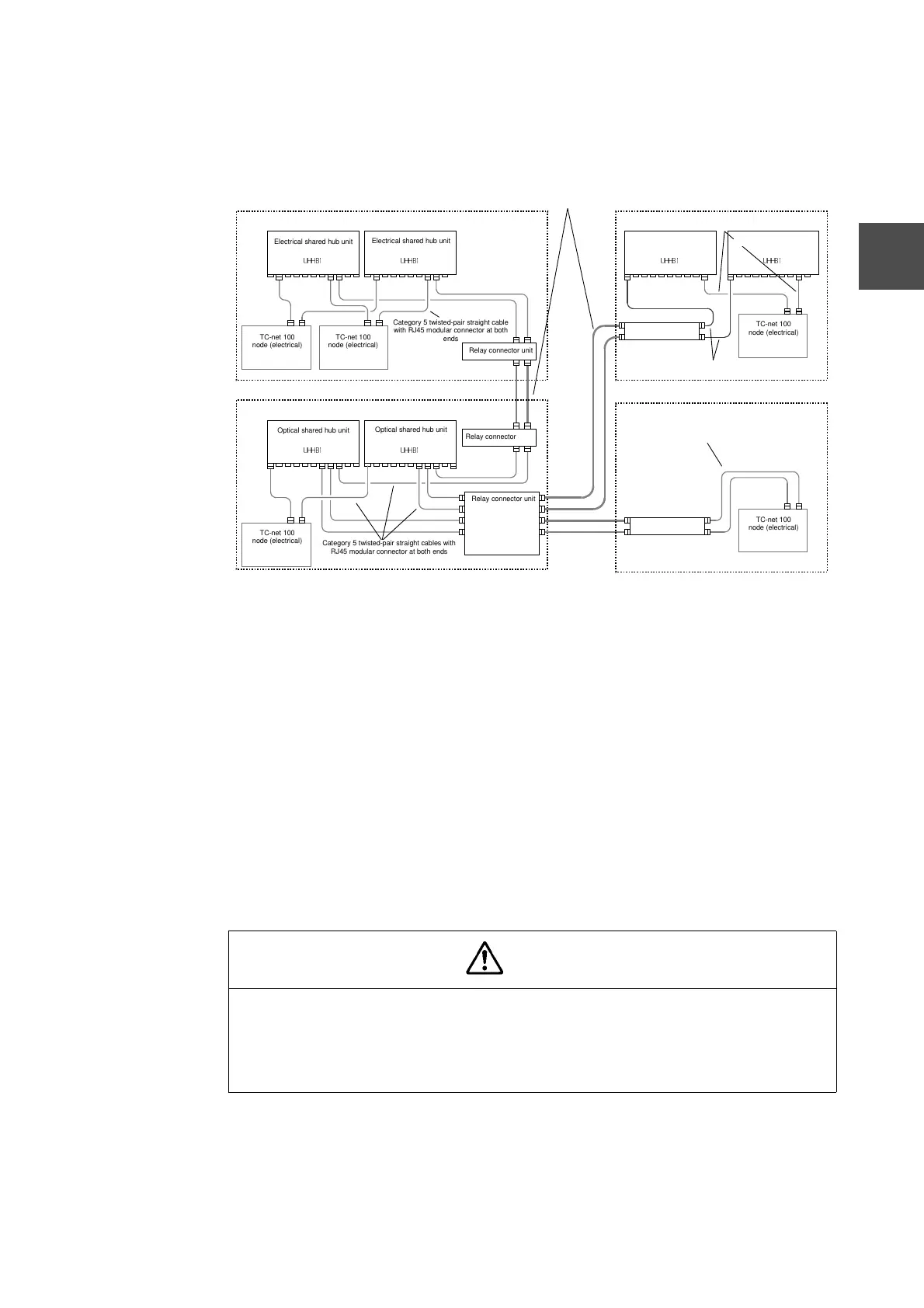

Figure 3-2 Example of TC-net 100 Transmission Line (Twisted-Pair Cable)
Form of Connecting the Parts Used
An example of connecting the parts that constitute a TC-net 100 transmission system is
shown in figure 3-2.
Criteria for Use of Cables
Use a category 5 twisted-pair cable with an RJ45 connector at both ends without shield
(called UTP cable with modular connector hereafter) to connect a TC-net 100 node to the
relay connector unit.
Use a category 5 twisted-pair cable with an RJ45 modular connector at both ends and
shield (called STP cable with modular connector hereafter) for wiring outside the cabinet
from the relay connector unit. Use cross cables for cascade connection of electrical
shared hub units.
Caution
In using twisted-pair cables for a series of cabinets, secure the routes exclusive to the TC-net
100 transmission cables by separating them from the power and other power-related cables.
Twisted-pair cables used in the same cabinet must also have an exclusive route separated from
power (high-amperage and high-voltage) cables.
ὈἷἡὢὙὨἔἥἤἤ
℃῍Ί૙Ә῜
ὈἷἡὢὙὨἔἥἤἤ
℃῍Ί૙Ә῜
૙Ә῍℄ℋℛ℀
ὉἼἼἶἥ
૙Ә῍℄ℋℛ℀
ὉἼἼἶἥ
ὈἷἡὢὙὨἔἥἤἤ
℃῍Ί૙Ә῜
૙Ә῍℄ℋℛ℀
ὉἼἼἶἥ
૙Ә῍℄ℋℛ℀
ὉἼἼἶἥ
ὈἷἡὢὙὨἔἥἤἤ
℃῍Ί૙Ә῜
ׁℂℛ℀
ὈἷἡὢὙὨἔἥἤἤ
℃῍Ί૙Ә῜
ภ
὆ἾἨἩ
֯
℗

ℚ℞
ℂ₌⃊₵
῍℠
ౡ₏
℟⁊ℏ℡῍῍ℋ℠
ภ
὆ἾἨἩ
֯
℗

ℚ℞
ℂౡ₏
℟⁊ℏ℡῍῍ℋ℠
ׁℂℛ℀
ׁℂℛ℀
૙Ә῍℄ℋℛ℀
ὉἼἼἶἥ
ׁℂℛ℀
૙Ә῍℄ℋℛ℀
ὉἼἼἶἥ
ׁℂℛ℀
ภ
὆ἾἨἩ
֯
℗

ℚ℞
ℂౡ₏
℟⁊ℏ℡῍῍ℋ℠
ภ
὆ἾἨἩ
֯
℗

ℚ℞
ℂౡ₏
℟⁊ℏ℡῍῍ℋ℠
ภ
὆ἾἨἩ
֯
℗

ℚ℞
ℂౡ₏
℟⁊ℏ™῍ℋ℠
ภ
὆ἾἨἩ
֯
℗

ℚ℞
ℂౡ₏
℟⁊ℏ℡῍῍ℋ℠
Electrical shared hub unit
Electrical shared hub unit
TC-net 100
node (electrical)
TC-net 100
node (electrical)
Category 5 twisted-pair straight cable
with RJ45 modular connector at both
e
nds
Category 5 twisted-pair straight cables with
RJ45 modular connector at both ends
TC-net 100
node (electrical)
Optical shared hub unit
Optical shared hub unit
TC-net 100
node (electrical)
TC-net 100
node (electrical)
Relay connector unit
Relay connector unit
Relay connector unit
Relay connector unit
Relay connector unit
Electrical shared hub unit
Electrical shared hub unit
Category 5 twisted-pair straight cables with RJ45
modular connector at both ends
Category 5 twisted-pair straight cables with
RJ45 modular connector at both ends
Category 5 twisted-pair straight cables with RJ45
modular connector at both ends
Category 5 twisted-pair straight cables with RJ45
modular connector at both ends and shield
