Toshiba TC-net 100 Installation And Wiring Manual

6F8C0942 21
4.1 Installation and Wiring of Optical Shared Hub Unit
4
4.1.1 Optical fiber cable connection
Connect optical fiber cables with MT-RJ connector to optical connectors (FX1 to FX8).
(1) Remove the dust cover from the optical port to connect. Hold the dust cover with
fingers, and press it till the latch on top clicks.

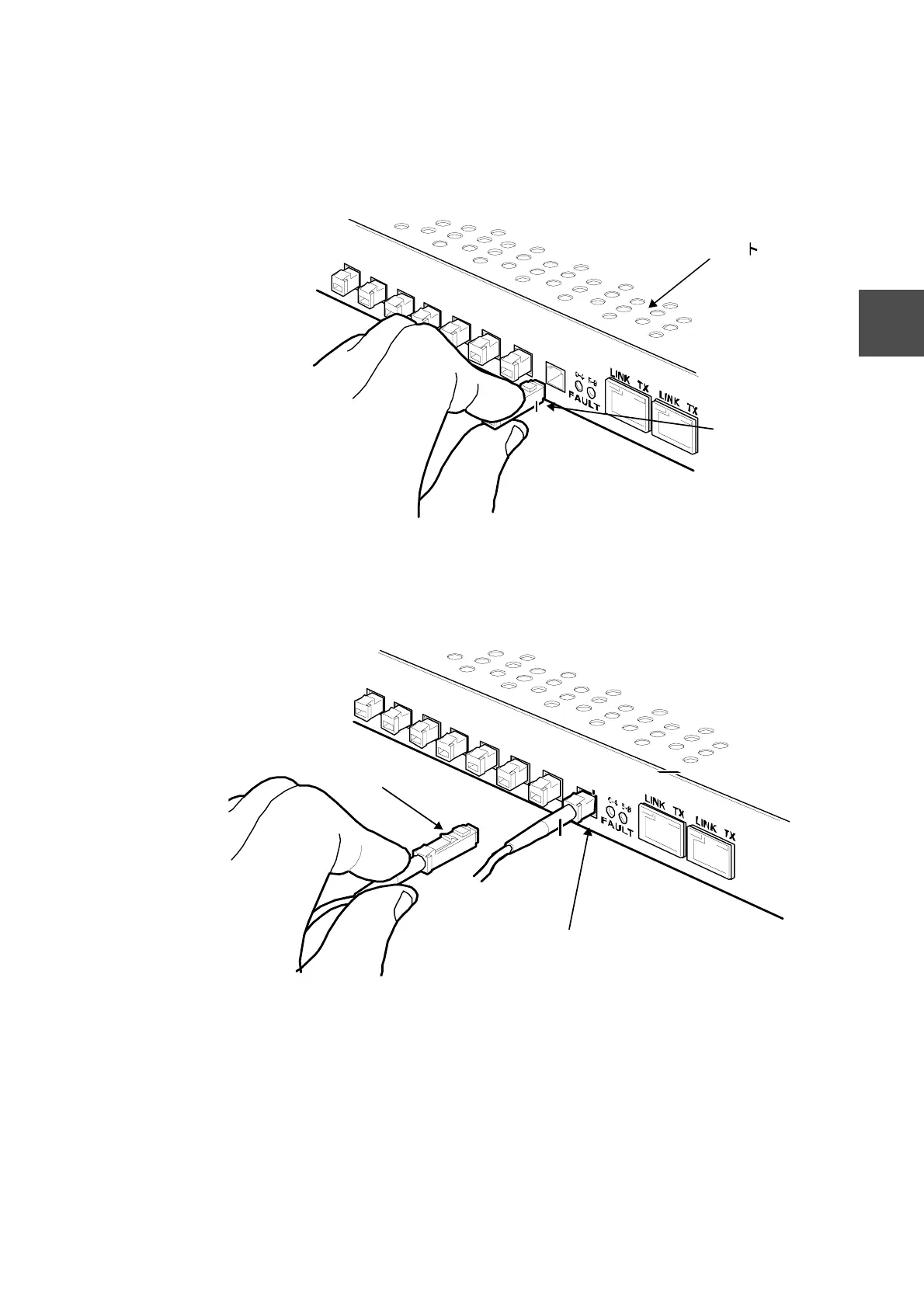

Figure 4-2 Removing Dust Cover from Optical Connector
(2) Insert an optical fiber cable with MT-RJ connector into the optical connector till it
clicks.
Figure 4-3 Connecting Optical Fiber Cable
(3) Clamp the optical fiber cable.
Dust cover
hub unit
Optical shared
Optical connector
Optical fiber cable
Optical shared hub unit
