18 Information and Control Network TC-net 100 Optical Shared Hub Unit UTNH23A/B User’s Manual
Chapter 3 Setting
3
Network parameter setting

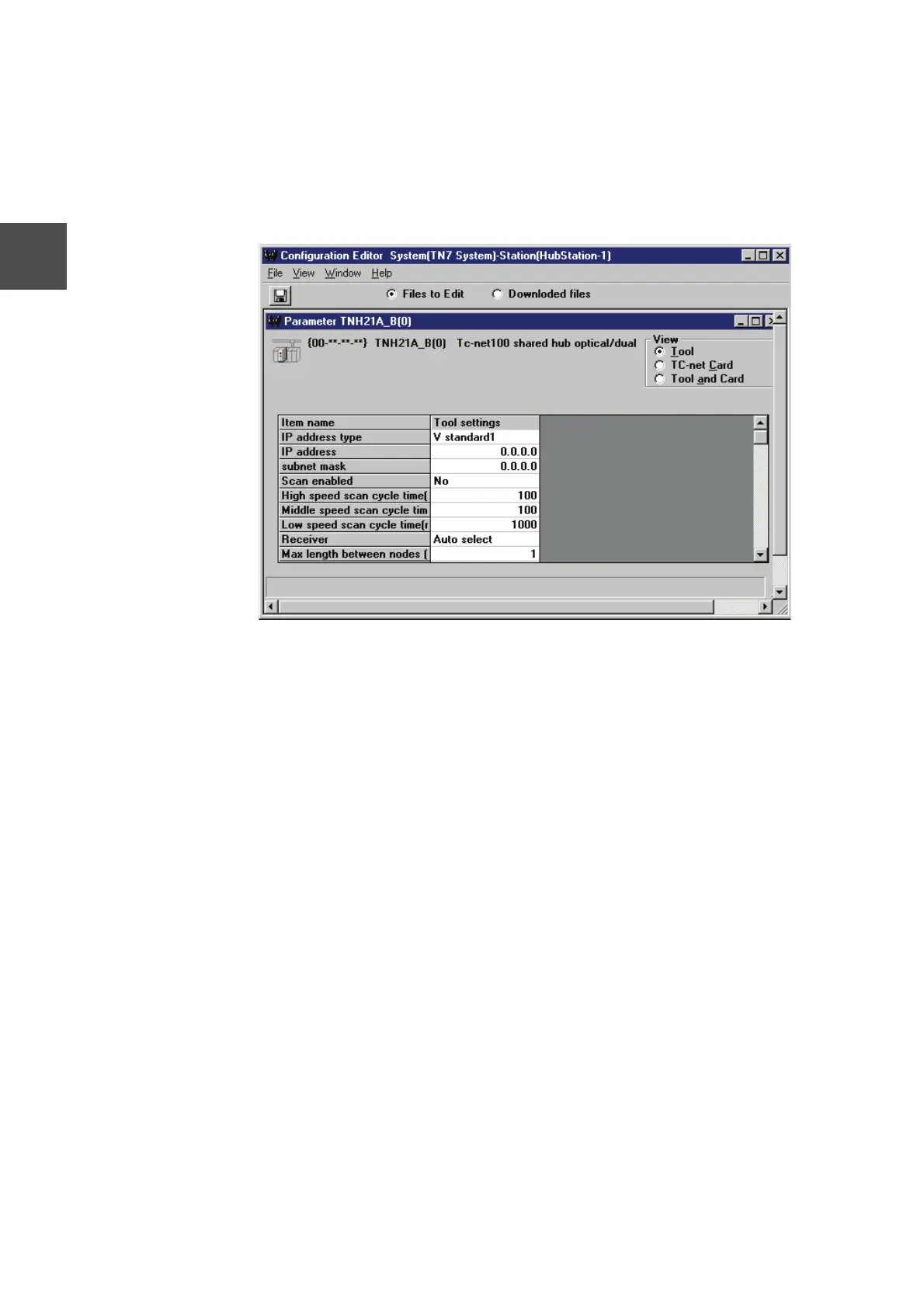

After registering a LAN configuration, start [Configuration Editor (Hub Station)]. Select a
module to connect, and execute [Edit (E)] and [Parameter Setting (P)]. When the
parameter setting menu appears, register an IP address type, IP address, and subnet
mask.
IP address type: Select V-series standard 1, V-series standard 2, or arbitrary.
V-series standard 1: Set the MODE switch bits No. 7 and No. 8 on the hub unit to
OFF; set an IP address of 172.16.64.xx (XX: Station switch
value) and a subnet mask of 255.255.192.0.
V-series standard 2: Set the MODE switch bit No. 7 to ON and bit No. 8 to OFF on
the hub unit; set an IP address of 172.31.64.xx (XX: Station
switch value) and a subnet mask of 255.255.192.0.
For arbitrary setting, set the MODE switch bits No. 7 and No. 8 on the hub unit to ON.
In this case, the values set with the Engineering Tool have priority in operation.
IP address: As shown above
Subnet mask: As shown above
Scan transmission: This function is not available to the hub unit.
Scan cycle high speed: Set a high-speed scan cycle within the range of 1 to 1600
(figures in 0.1 millisecond).
It has been 5ms when it sets wiht 50.
Scan cycle medium speed: Set a medium-speed scan cycle within the range of 2 to 1000
(milliseconds).
It has been 50ms when it sets wiht 50.
Scan cycle low speed: Set a low-speed scan cycle within the range of 2 to 10000
(milliseconds).
It has been 500ms when it sets wiht 500.
Receive line selection: Select [Automatic], [Line A fixed], or [Line B fixed].
