Control Connections
Control connections on the TE Series starter are divided into 2 groups. With the unit oriented vertically, TB1
is a 12-point DC terminal block (on the left), and TB2 is a 10 point AC terminal block (on the right side). These
are removable terminal blocks for ease of connection and servicing, and are provided with different spacing
(pitch) between the header pins so they are not interchangeable. Following are descriptions of control
connection points.

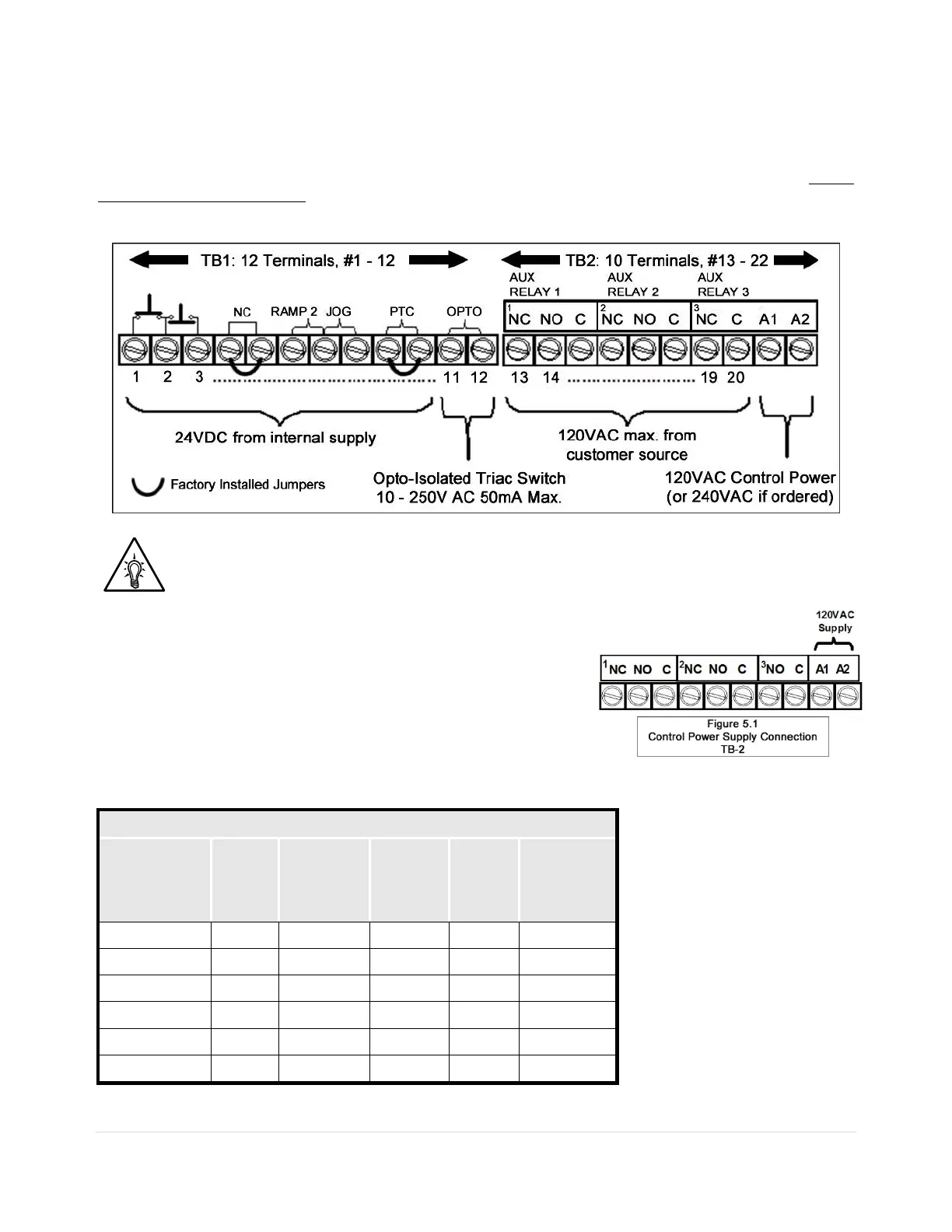

Figure 5
Note:
Terminal numbers are shown on the side of the first and last terminal of each block. An additional
3 point terminal on the far left side is for serial communication connections.
AC Control Power Supply Connection
Separate AC Control Power supply is required to power the
electronics of the TE Series starter. 120VAC is standard; order 240
VAC (optional) if necessary for your line power supply configuration.
The control voltage must be connected to terminals marked A1 and
A2 of TB-2 as shown in figure 5.1 (these are also Terminal No.’s 21
and 22). This control voltage must be customer supplied, unless an
optional control power transformer (see table below) has been
supplied with the unit.
Control Power
Requirements
When sizing a control power
transformer for the TE…-BP
Series starter use the chart
below for minimum sizes or
supply capacity. Any
additional control devices
powered by the same CPT
must be added to the above
values to ensure proper
operation of the Bypass
Contactor.
Table 4: TE Series AC Control Power VA Requirements
TE …-BP
Model
PC
Boards
Fans
-BP:
Bypass
Contactor
Inrush
-BP:
Bypass
Contact
or
Sealed
Recommend
ed min.
CPT
Rating
TE-18 to 48 48 (Inc. in PCB) 95 9 100
TE-62 to 112 48 (Inc. in PCB) 220 17 250
TE-150 to 160 48 72 298 12.3 500
TE- 210 to 275 48 100 380 11.6 500
TE-361 to 450 48 150 571 14 750
TE-550 to 600 48 200 1000 29 750
