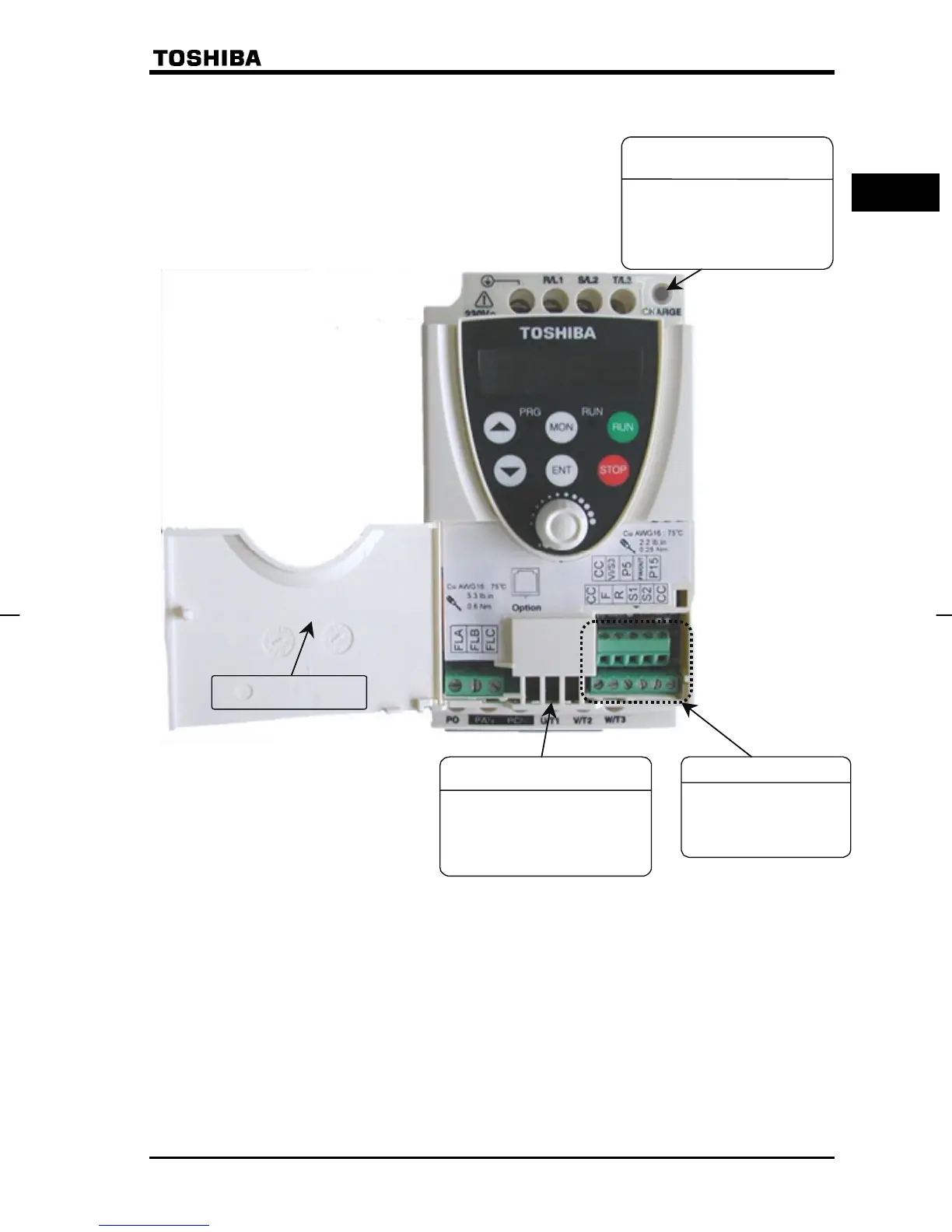

[Front panel]
Front cover
Charge lamp
Indicates that high voltage is still
present within the inverter. Do not
open the terminal board cover while
this is lit. This lamp is not provided
for single-phase 200V European
models.
Connector for optional devices
Used to connect an optional device.
• Parameter writer
• Extension panel
• RS485/RS232C
Control terminal block
Used to control the inverter
by inputting signals from an
external control device and
to output signals to the
external device.
