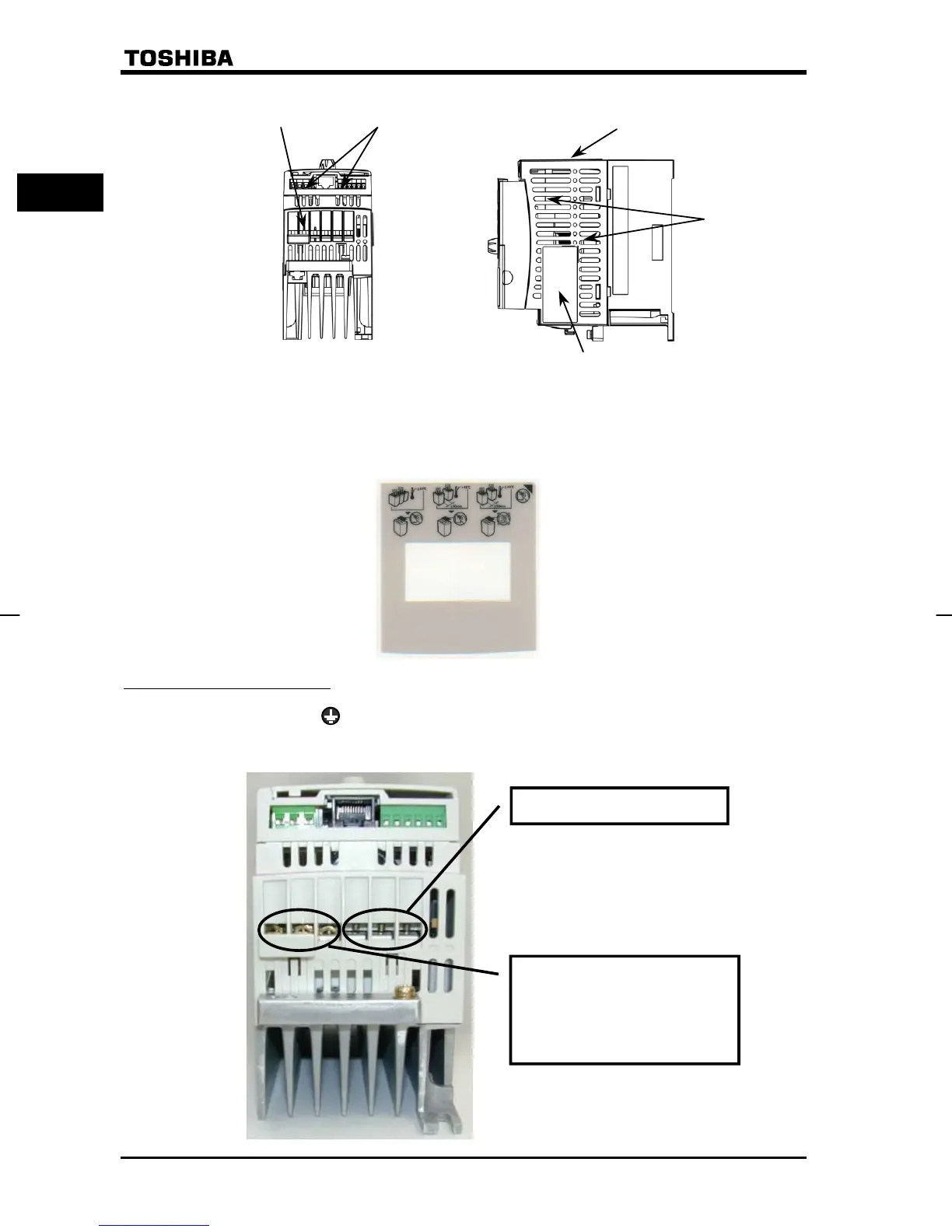

E6581090
A-4
1
Note 1: When installing the inverter where the ambient temperature will rise above 40°C, detach
this caution label.
An example of a caution label on the top surface translation
■Self-up terminal block
The self-up terminals , R/LI, S/L2, (T/L3), U/T1, V/T2 and W/T3 on the main circuit board were
factory-set to the UP position to allow you to connect cables smoothly. After you have connected
cables to these terminals, tighten them securely.
Caution label on the top surface
(See Note 1.)
Name Plate
Ventilation slits
[Right side]
Main circuit port Control circuit port
[Bottom]
These terminals are already
set to the UP position.
The terminals PO, PA/+ and
PC/- are not set to the UP
position. So you will have to set
them to the UP position before
connecting cables to them.
To Next Page
