E6581090
A-5
1
Note: The self-up (self-lifting) terminals of VFNC1 are constructed with plastic body and screws,
therefore please take following precautions.
• Do not unscrew the power terminals to UP position frequently. (Less than 5 times is
recommended)
• Do not press the screw when unscrew the main terminals.
• Do not unscrew quickly like using an Electric screw driver.
• Do not pull the power wire during unscrewing the power terminals to UP position.
• Do not unscrew the power terminal to UP position with over torque.
• Do not make any deformation of the cover when unscrewing the power terminals.

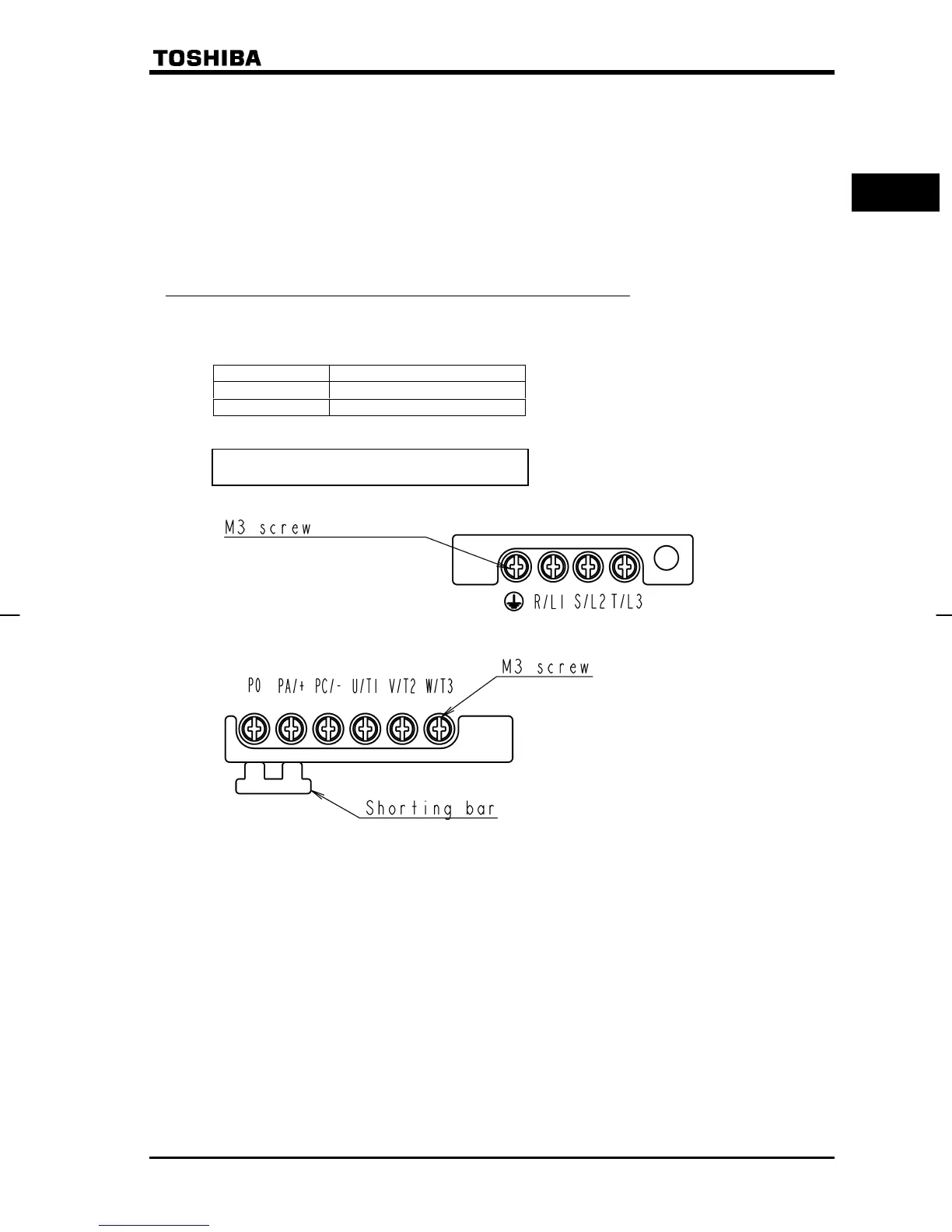

1.3.2 Main circuit and control circuit terminal blocks
1) Main circuit terminal block
When using a crimp terminal, cover its caulked part with a tube or use an insulated terminal.
Screw size tightening torque
M3 screw
0.8N ･ m
M3.5 screw
1.0N ･ m
[Main circuit input terminals]
[Main circuit output terminals]
VFNC1-2001P～2007P
To Next Page
