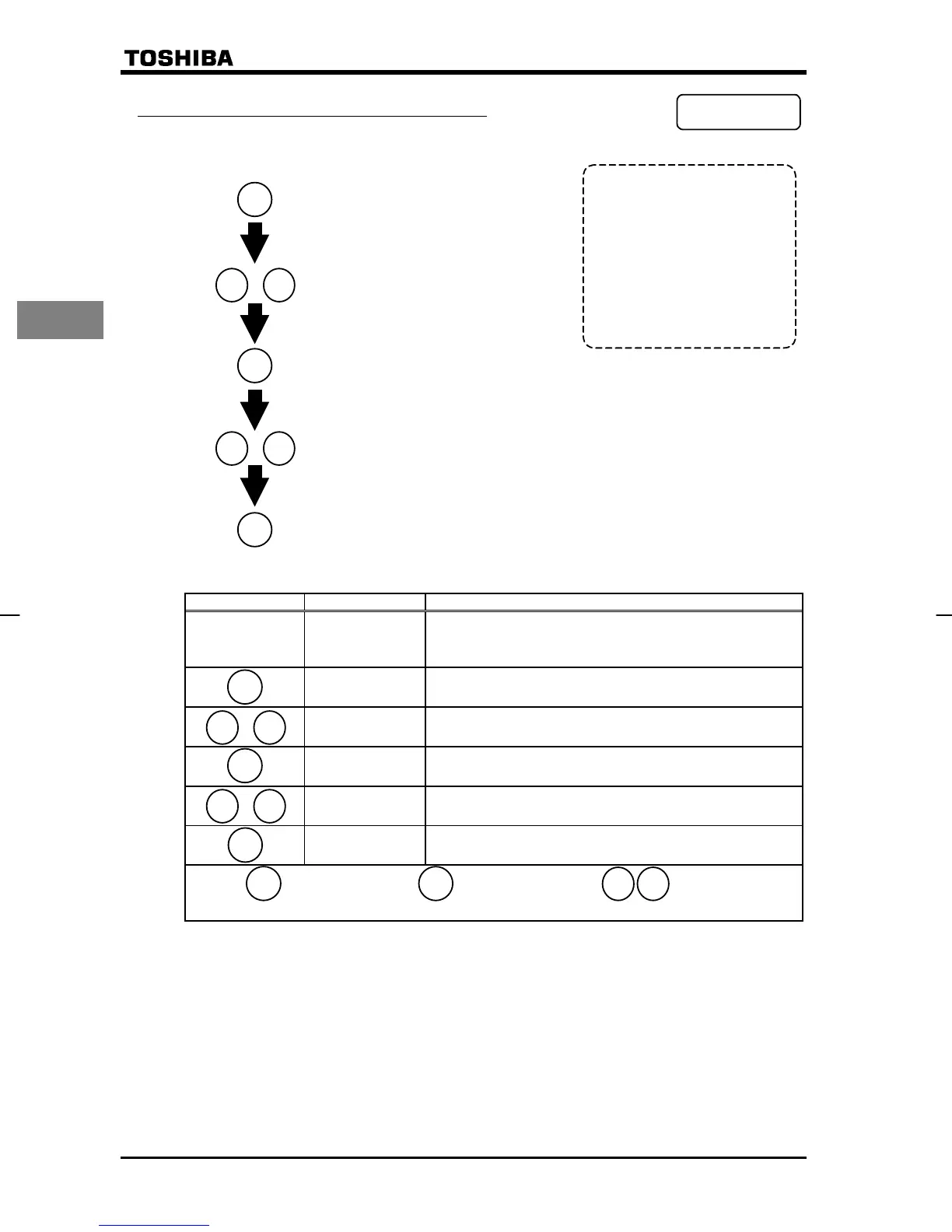

4.1.2 How to set the basic parameters
All of the basic parameters can be set by the same step procedures.
[Steps in key entry for basic parameters]
Steps in setting are as follows (the example shown is one of changing the maximum frequency from
80Hz to 60Hz).
Key operated LED display Operation
Displays the operation frequency (operation stopped).
(When standard monitor display selection H= is set
to 0 [operation frequency]).
CWJ The first basic parameter "History (CWJ)" is displayed.
HJ Press either the △ key or the ▽ key to select "HJ".
Pressing the ENTER key reads the maximum frequency.
Press the ▽ key to change the maximum frequency to
60Hz.
⇔ HJ
Press the ENTER key to save the changed maximum
frequency. HJ and frequency are displayed alternately.
After this,
Basic parameters
: Selects parameter to be changed.
: Reads the programmed parameter setting.
: Switches to the setting monitor mode.
: Changes the parameter setting.
: Saves the changed value of the parameter setting.
→Displays the same
programmed
parameter.
→Switches to the
display in the status
monitor mode.
→Displays names
of other
parameters.
▲
▼
MON
▲
▼
ENT
ENT
ENT
MON
▲
▼
MON
ENT
▲
▼
ENT
▲
▼
★Select a parameter you want to
change from the table of
parameters.
★If there is something that you do
not understand during the
operation, press the MON key to
return to the indication (or
operation frequency).
★See 11.2 for the table of basic
parameters.
To Next Page
