Tosot DC Inverter U-match Series User Manual

DC Inverter U-match Series Duct Type Unit
5

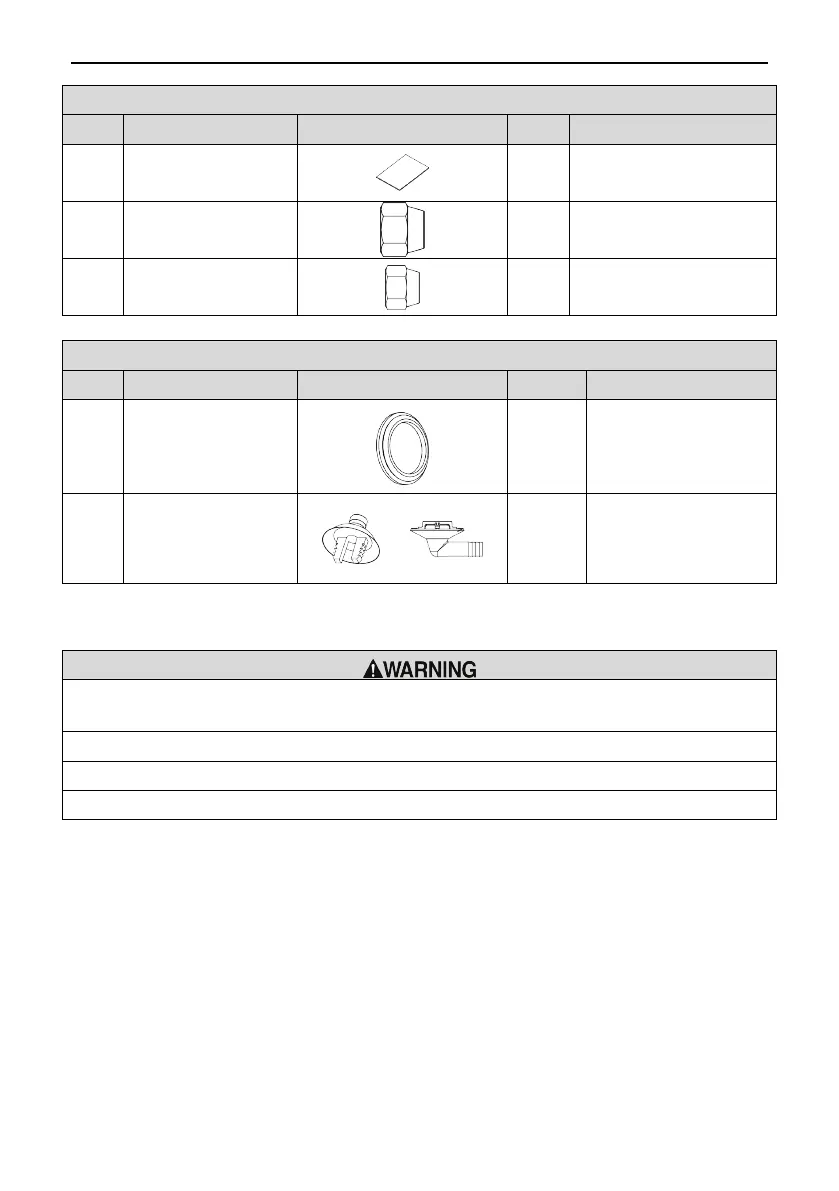

Indoor Unit Accessories
No. Name Appearance Q'ty Usage
12 Sponge
2 To insulate the drain pipe
13 Nut
1 To connect liquid pipe
14 Nut
1 To connect gas pipe
Table 3.2
Outdoor Unit Accessories
No. Name Appearance Q'ty Usage
1 Drain Plug
1 or 3
To plug the unused
drain hole
2 Drainage Connecter
or
1
To connect with the
hard PVC drain pipe
3.2 Selection of the Installation Location
①. The unit must be installed where strong enough to withstand the weight of the unit and fixed
securely, otherwise the unit would topple or fall off.
②.
Do not install where there is a danger of combustible gas leakage.
③. Do not install the unit near heat source, steam, or flammable gas.
④. Children under 10 years old must be supervised not to operate the unit.
Decide the installation location with the customer as follows:
3.2.1 Indoor Unit
(1). Install the unit at a place where is strong enough to withstand the weight of the
unit.
(2). The air inlet and outlet of the unit should never be clogged so that the airflow
can reach every corner of the room.
(3). Leave service space around the unit as required in Fig. 3.1.
