Tosot DC Inverter U-match Series User Manual

DC Inverter U-match Series Duct Type Unit
23
4.6 Installation of the Duct

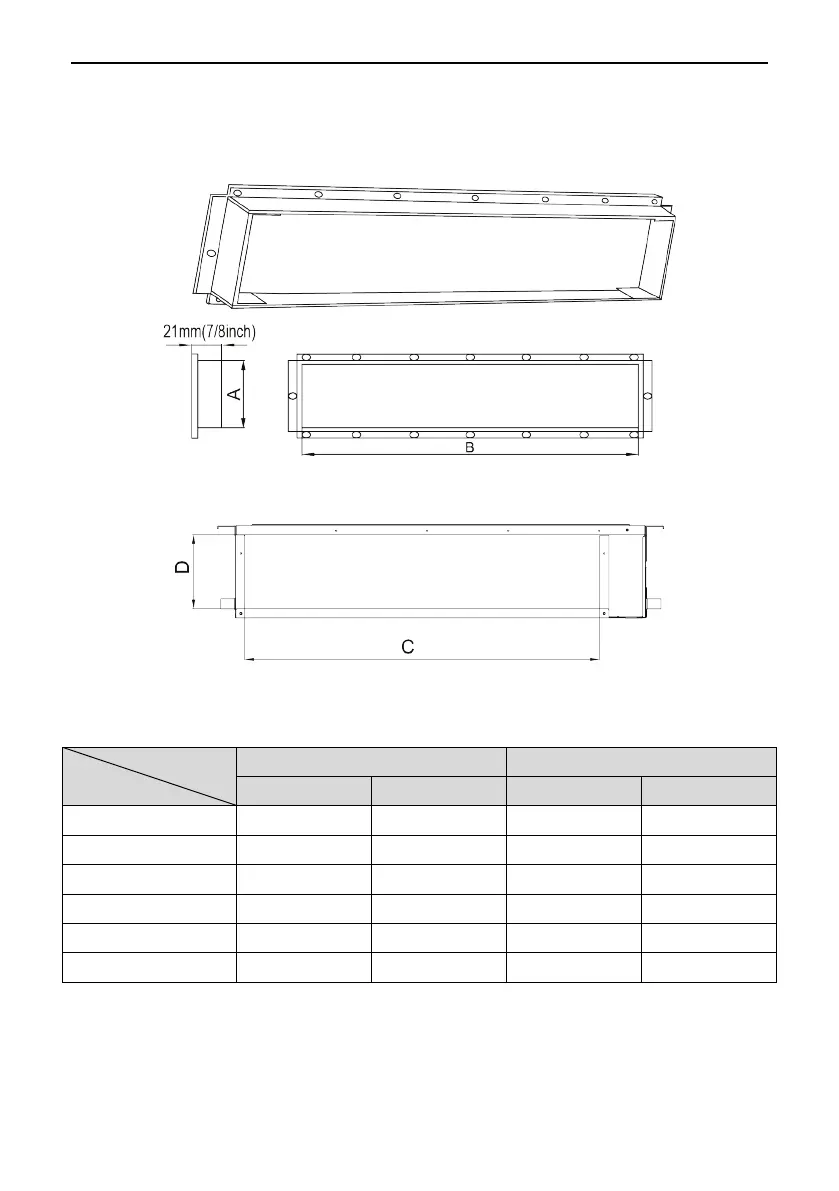

4.6.1 Dimensions of the Supply Air Outlet/Return Air Inlet
Fig. 4.32 Supply Air Outlet
Fig. 4.33 Return Air Inlet
Table 4.5
Unit: mm (inch)
Item
Model
Supply Air Outlet Return Air Inlet
A B C D
TU18HFI 123(4-7/8) 736(29) 710(28) 166(6-1/2)
TU24HFI 158(6-1/4) 818(32-1/4) 994(39-1/8) 195(7-5/8)
TU30HFI 158(6-1/4) 818(32-1/4) 994(39-1/8) 195(7-5/8)
TU36HFI 158(6-1/4) 818(32-1/4) 1000(39-3/8) 206(8-1/8)
TU42HFI 158(6-1/4) 818(32-1/4) 1000(39-3/8) 206(8-1/8)
TU48HFI 190(7-1/2) 850(33-1/2) 940(37) 286(11-1/4)
