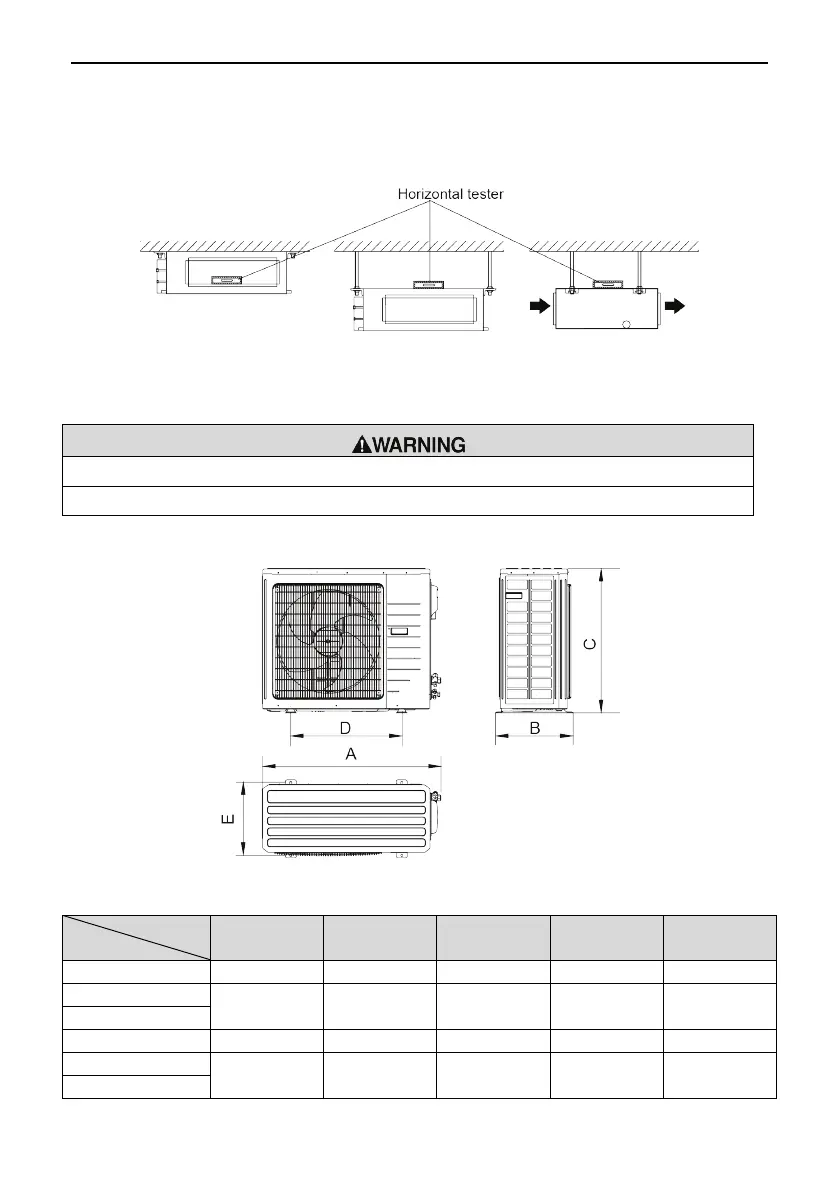

4.1.4 Leveling

The water level test must be done after installing the indoor unit to make the unit is

horizontal, as shown below.

Fig. 4.7

4.2 Installation of the Outdoor Unit

①. Install the unit where it will not be tilted by more than 5°.

②. During installation, if the outdoor unit has to be exposed to strong wind, it must be fixed securely.

4.2.1 Outdoor unit dimension

Fig. 4.8

Table 4.2 Unit: mm (inch)

Item

Model

A B C D E

TU18H3O

955(37-5/8)

395(15-1/2)

700(27-1/2)

560(22)

360(14-1/8)

TU24H3O

980(38-5/

8) 425(16-3/4) 790(31-1/8) 610(24) 395(15-1/2)

TU30H3O

TU36H3O

1105(43-5/8)

440(17-3/8)

1100(43-1/4)

630(24-7/8)

400(15-3/4)

TU42H3O

960(

37-3/4) 410(16-1/4) 1350(53-1/8) 570(22-1/2) 375(14-3/4)

TU48H3O
