4.1.2 Drilling Holes for Bolts and Installing the Bolts
Using the installation template, drill holes for bolts (four holes) (Fig. 4.2).
4.1.3 Installing the Suspension Bolts
(1). Install the bolts to the ceiling at a place strong enough to hang the unit. Mark
the bolt positions from the installation template. With a concrete drill, drill for
12.7mm (1/2inch) diameter holes (Fig. 4.3).
(2). Insert the anchor bolts into the drilled holes, and drive the pins completely into
the anchor bolts with a hammer (Fig. 4.4).
(3). Install the hanger to the unit (Fig. 4.5).
(4). Pass the unit hangers over the bolts installed to the ceiling and install the unit
with the special nut (Fig. 4.6).

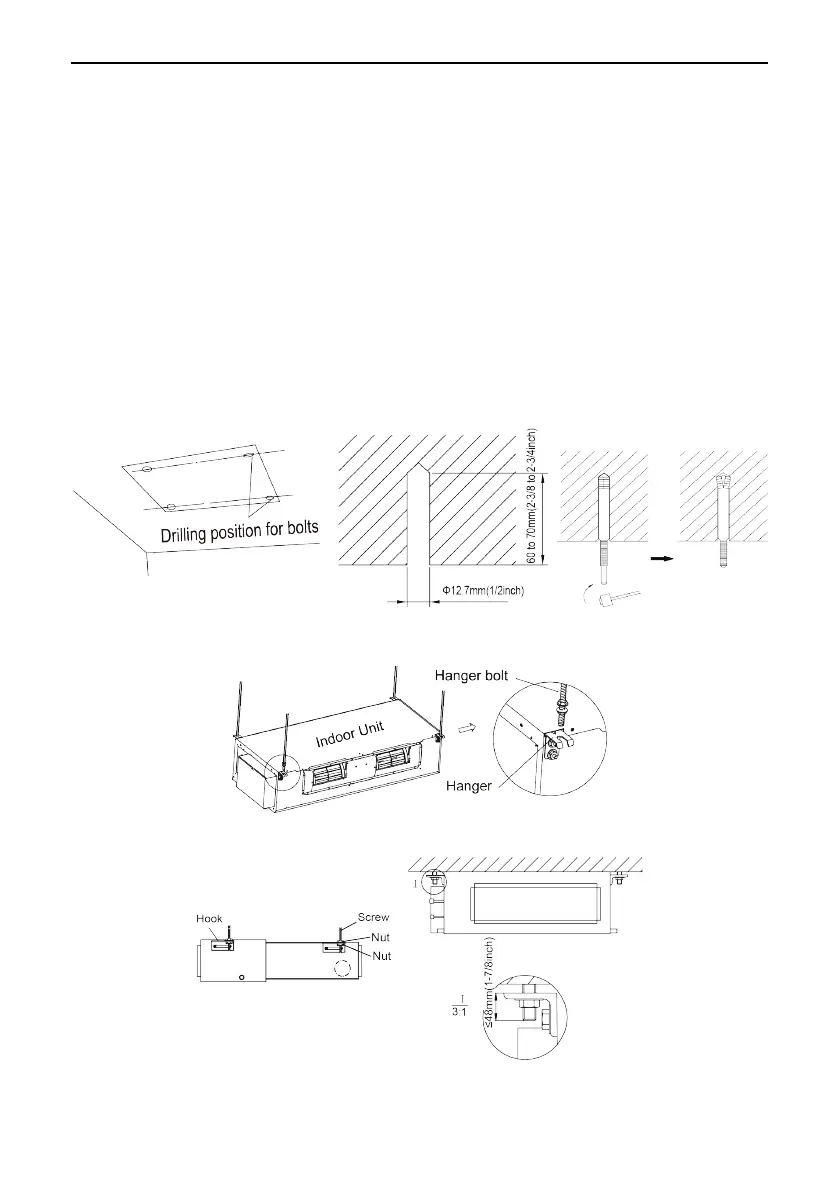

Fig.4.2 Fig.4.3 Fig.4.4
Fig.4.5
Fig.4.6
