Tosot DC Inverter U-match Series User Manual

DC Inverter U-match Series Duct Type Unit
10
For the units: 24k~42k
For the units: 48k

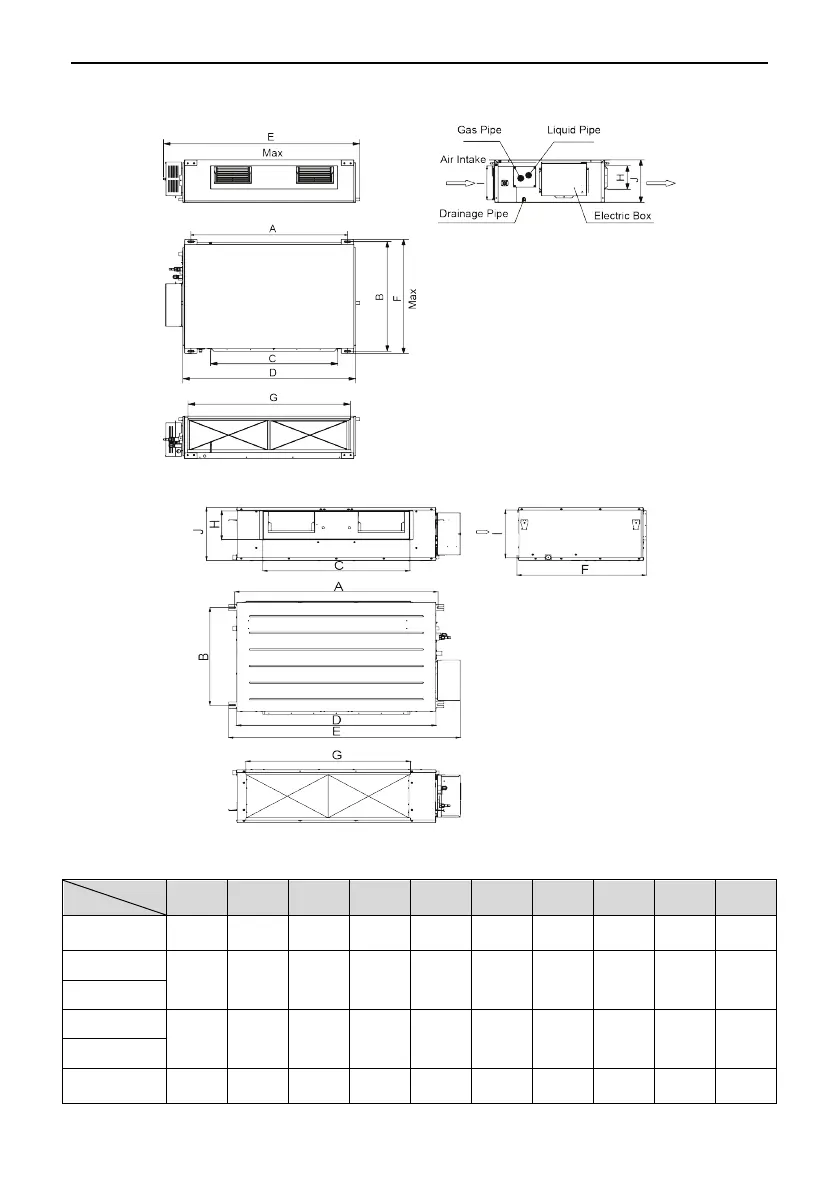

Fig. 4.1
Table 4.1 Unit: mm (inch)
Item
Model
A B C D E F G H I J
TU18HFI
945
(37-1/4)
620
(24-3/8)
740
(29)
890
(35-1/8)
1035
(40-7/8)
720
(28-3/8)
740
(29)
125
(4-7/8)
205
(8)
265
(10-1/2)
TU24HFI
1100
(43-3/8)
515
(
20-3/8)
820
(32-1/4)
1160
(45-5/8)
1280
(50-3/8)
560
(22)
1000
(39-1/2)
160
(6-1/
4)
235
(9
-1/4)
270
(10-1/2)
TU30HFI
TU36HFI
1010
(39-3/4)
750
(29
-1/2)
820
(
32-1/4)
1115
(43-7/8)
1225
(48-1/4)
775
(30-1/2)
980
(38
-1/2)
160
(6-1/4)
230
(9-1/8)
290
(11-3/8)
TU42HFI
TU48HFI
1170
(46-3/8)
645
(25-3/8)
850
(33-1/2)
1150
(45-1/4)
1340
(52-3/4)
750
(29-1/2)
950
(37-1/2)
190
(7-1/2)
315
(12-1/2)
350
(13-3/4)
