Tosot DC Inverter U-match Series User Manual

DC Inverter U-match Series Duct Type Unit
7

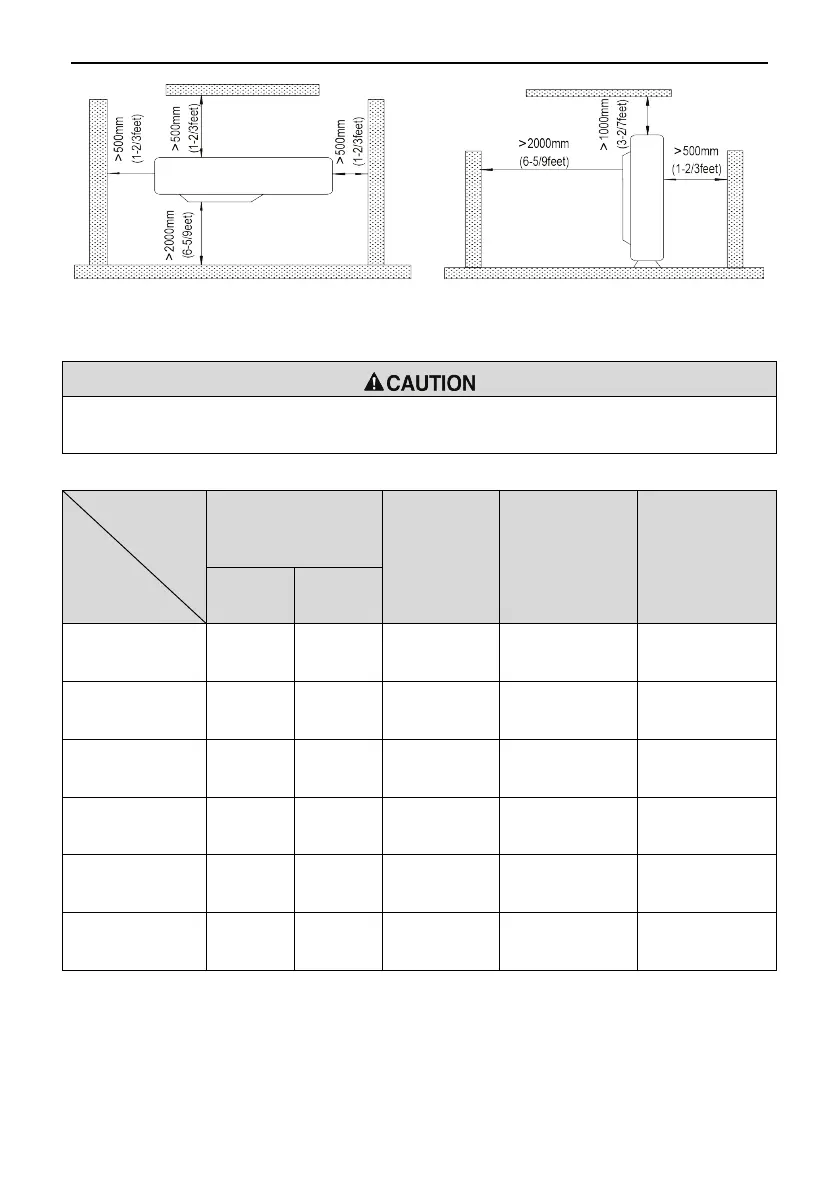

Fig. 3.2
3.3 Connection Pipe Requirement
The maximum length of the connection pipe is listed in the table below. Do not place the units
between which the distance exceeds the maximum length of the connection pipe.
Table 3.3
Item
Model
Size of Fitting Pipe
mm (inch)
Max. Pipe
Length
m (feet)
Max. Height
Difference
between Indoor
Unit and
Outdoor Unit
m (feet)
Drainage
pipe(Outer
Diameter × wall
thickness)
mm (inch)
Liquid Gas
TU18HFI
TU18H3O
6(1/4) 12.7(1/2) 50(164) 15(49-1/5)
Φ30×1.5
(Φ1-1/8×3/50)
TU24HFI
TU24H3O
9.5(3/8) 16(5/8) 50(164) 15(49-1/5)
Φ20×1.2
(Φ3/4×6/125)
TU30HFI
TU30H3O
9.5(3/8) 16(5/8) 50(164) 15(49-1/5)
Φ20×1.2
(Φ3/4×6/125)
TU36HFI
TU36H3O
9.5(3/8) 16(5/8) 50(164) 15(49-1/5)
Φ20×1.2
(Φ3/4×6/125)
TU42HFI
TU42H3O
9.5(3/8) 16(5/8) 50(164) 15(49-1/5)
Φ20×1.2
(Φ3/4×6/125)
TU48HFI
TU48H3O
9.5(3/8) 16(5/8) 70(230) 15(49-1/5)
Φ20×1.2
(Φ3/4×6/125)
Notes:
①. The connection pipe should be insulated with proper water-proof insulating
material.
②. The pipe wall thickness shall be 0.5~1.0mm (1/50~1/25inch) and the pipe wall
