①. The power source capacity must be the sum of the air conditioner current and the current of other
electrical appliances. When the current contracted capacity is insufficient, change the contracted
capacity.
②. When the voltage is low and the air conditioner is difficult to start, contact the power company to
raise the voltage.
4.7.2 Electrical Wiring
(1). For solid core wiring (Fig. 4.37)
1). Cut the wire end with a wire cutter or wire-cutting pliers, then strip the
insulation about 25mm (1inch).
2). Using a screwdriver, remove the terminal screw(s) on the terminal board.
3). Using pliers, bend the solid wire to form a loop suitable for the terminal screw.
4). Shape the loop wire properly, place it on the terminal board and tighten
securely with the terminal screw using a screwdriver.
(2). For strand wiring (Fig. 4.37)
1). Cut the wire end with a wire cutter or wire-cutting pliers, then strip the
insulation about 10mm (3/8inch).
2). Using a screwdriver, remove the terminal screw (s) on the terminal board.
3). Using a round terminal fastener or pliers, securely clamp a round terminal to
each stripped wire end.
4). Position the round terminal wire, and replace and tighten the terminal screw
with a screwdriver (Fig. 4.38).

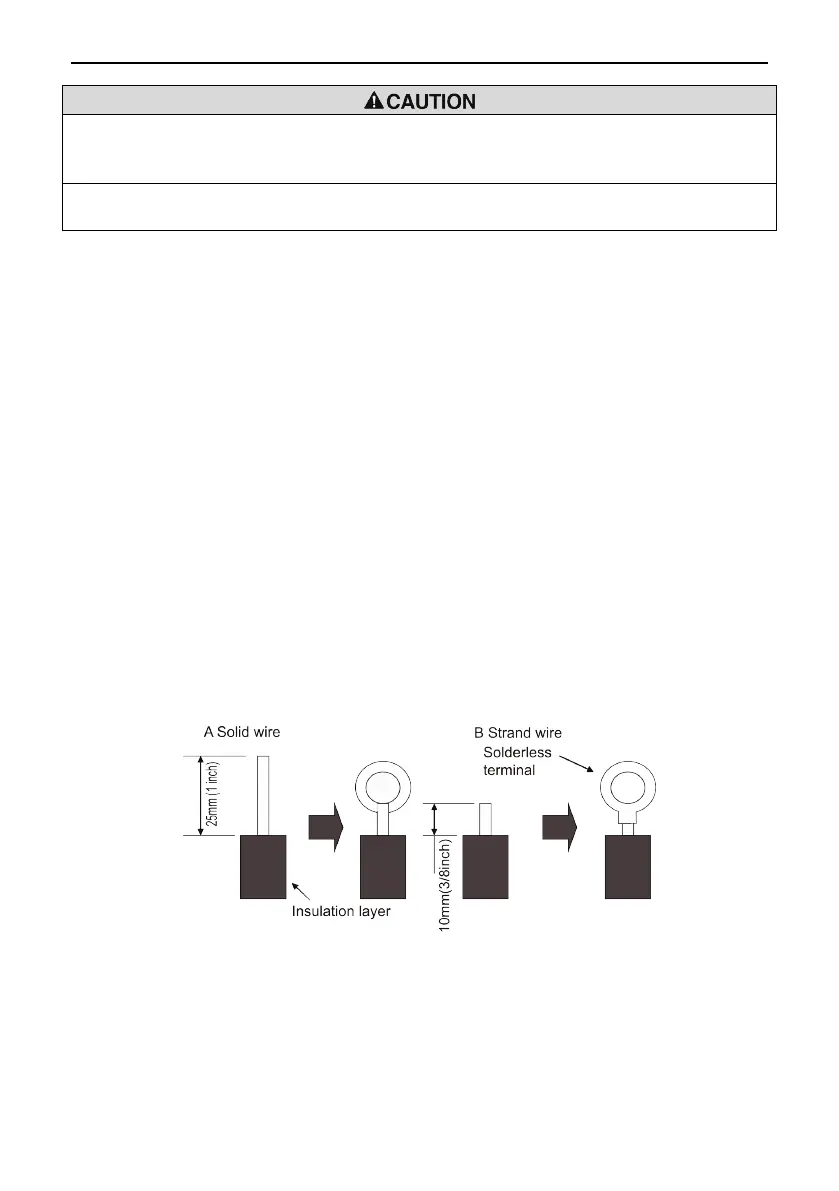

Fig. 4.37
