Level
Level
Level
Level

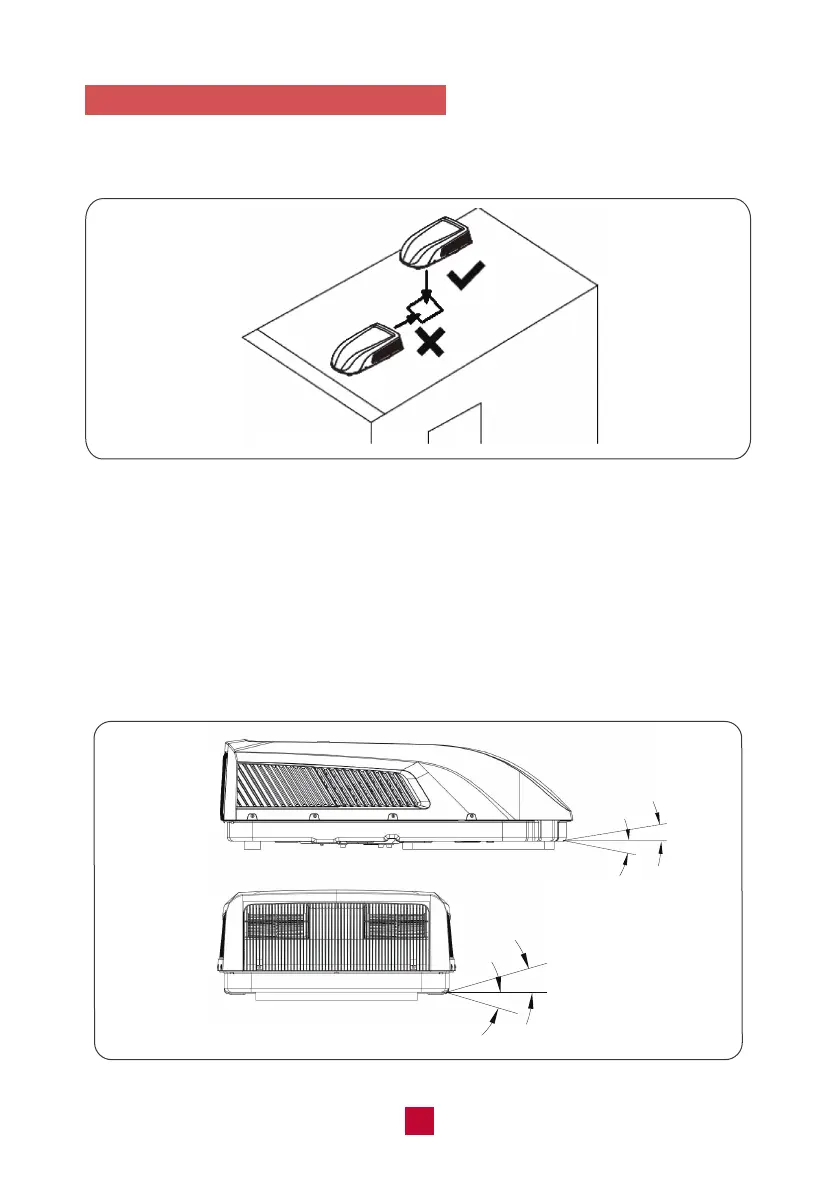

Figure 5
Front
● Center the rooftop air conditioner over the prepared cutting hole, making sure the
gasket is attached to the edge of the mounting hole.
● The front section of the outdoor unit of the air conditioner must be in the same
direction as the vehicle, which is useful for reducing wind resistance.
● Please make sure the rooftop air conditioner is mounted on a level plane from
front to rear and side to side. Figure 5 shows the maximum allowable degrees
that the unit can be mounted above or below level.
3. Install and mount the Roof Top Unit
● Lift the outdoor unit and then place the outdoor unit in the roof of the vehicle. Do
not drag the outdoor unit. Otherwise, the seal may fall off (see Figure 4).
Figure 4
To Next Page
