18
6.1 For the window is too narrow for direct in-
stallation, The window panel needs to be
cut down in size.
6.2 If the width of window is larger than the
length of window panel, please use the
adjustment panel to make sure you can
span the entire length of your window.
6.3 Otherwise, you can add an extension pan
-
el to prolong the length of the windows
panel assembly.

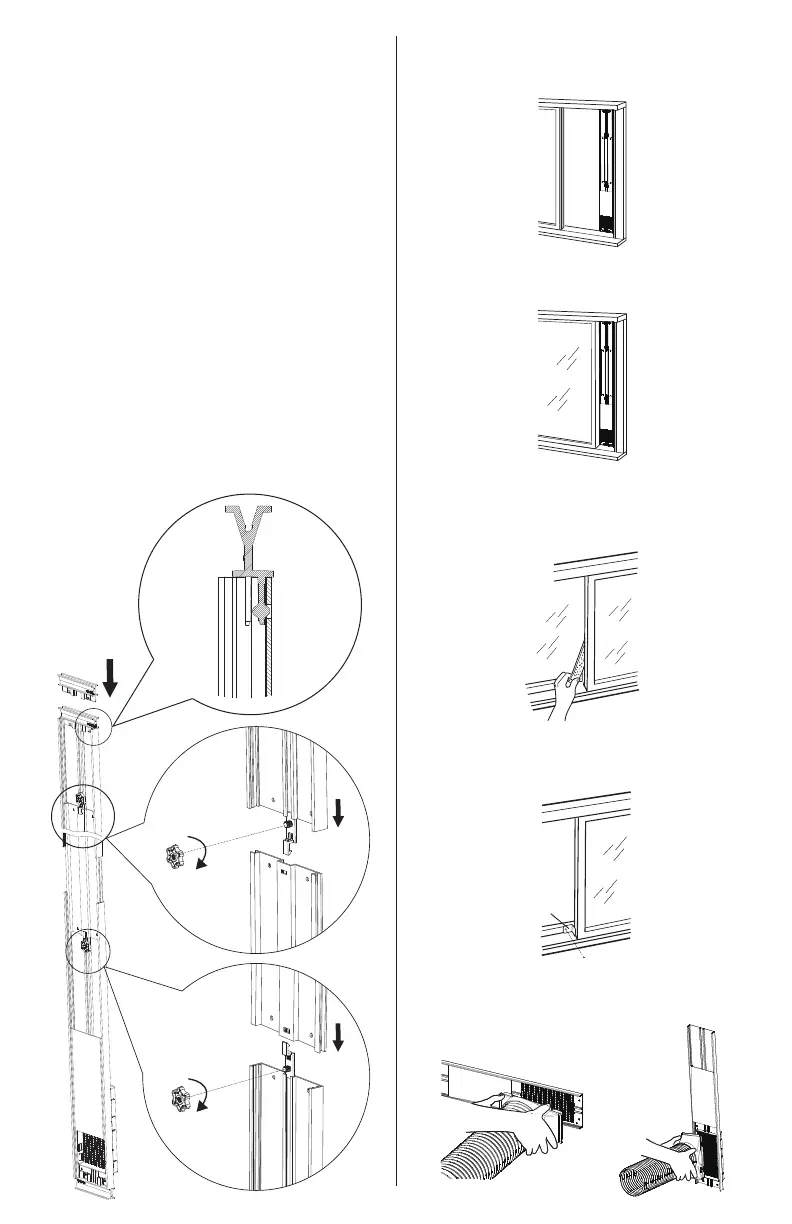

7. Push fixed base to the end of Window Panel
assembly.
After the length is set, secure the panels with a
fixed clip and mounting plate.
For certain windows, such as a casement win
-
dow, you will need to improvise several steps
of the installation.
NOTE: Insert the fixed clip into the groove of the
adjustment panel and screw down the mounting
plates.
8. Install the window panel into the window
frame. Make sure that the exhaust cover is
attached to the window panel.
9. Close the window sash securely against the
window panel.
10. Stuff the foam seal A between the glass and
the window to prevent air and insects from
getting into the room.
11. Attach the bracket with a screw.
(Recommended)
Bracket
12. Slide and open the exhaust cover on the
window panel, and install the Rear clip.
Fixed clip
Mounting
plate
Mounting
plate
To Next Page
