Tosot PAT Series User Manual

17

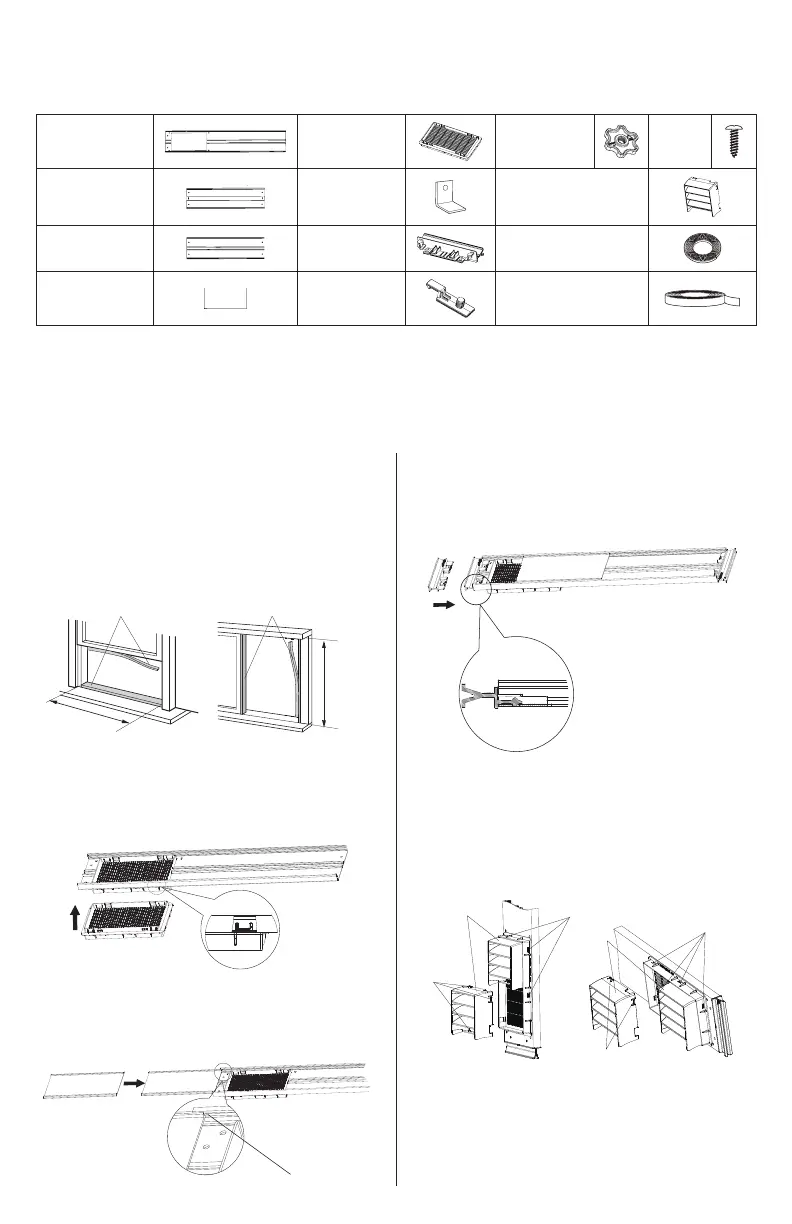

INSTALL WINDOW PANEL
Accessory list
Adjustment
panel
Mothproof
net
Mounting
plate
Screw
Window
panel
Bracket Rain guard
Extension
panel
Fixed base Foam seal A
Exhaust
cover
Fixed clip
Foam seal B
(adhesive type)
Suggested tools for installation
1. Screwdriver (medium size Phillips) 2. Tape measure or ruler 3. Knife or scissors
4. Saw (In the event that the window panel needs to be cut down in size because the window is
too narrow for direct installation.)
Install window panel
1. Open the window and measure the width
or height inside the window frame. Cut the
Foam seal B to the proper length and attach it
to your horizontal( or verical) sliding window.
Foam seal B
(adhesive type
Foam seal B
(adhesive type
Height
Width
2. Attach the Mothproof net to the back side
of the Window Panel. Push the Mothproof
net securely into the Window Panel to en-
sure that is firmly installed.
3. Insert the Exhaust cover to the Window
Panel.
Insert the first
groove
4. Push the fixed base to the end of Window
Panel.
5. Connect the rain guards to the Mothproof
net. Insert all three projections on each rain
guard into the holes in the Mothproof net.
Side “A” will now be at the top, as indicated
in the diagram.
Holes
Projection
"A"
Projection
Holes
(Verical sliding window) (Horizontal sliding window)
"A"
6. The window panel adapts to different
window sizes that open horizontally or ver-
tically.
