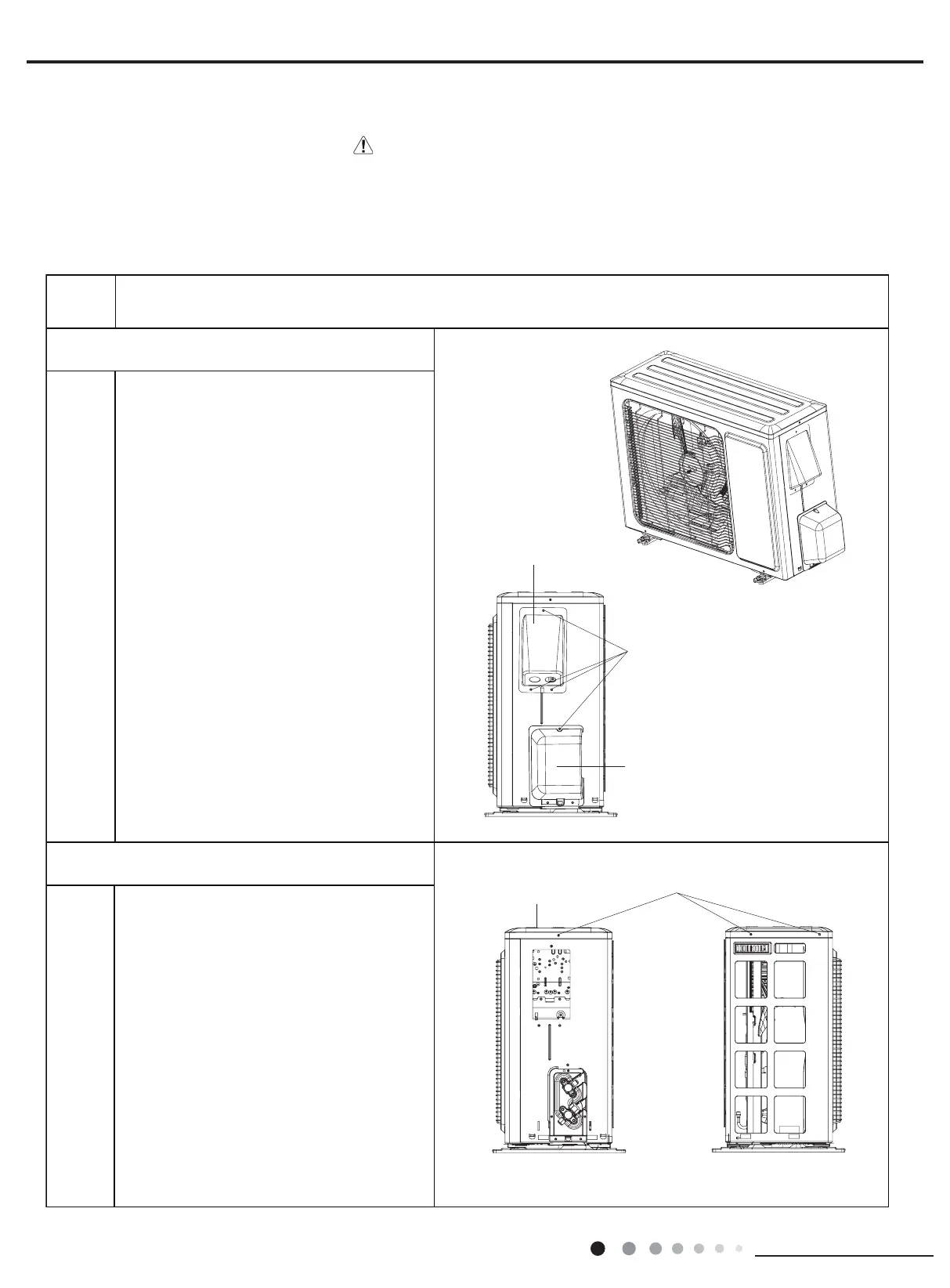

11.2 Removal Procedure of Outdoor Unit
Warning: Be sure to wait for a minimum of 20 minutes
after turning off all power supplies and discharge the
refrigerant completely before removal.
Procedure Steps
1.Remove cable cross plate 2
2. Remove top cover
Before disassamble.
Remove 3 connection screw fixing cable
cross plate 2 and then remove the cable
cross plate 2.
Remove 1 connection screw fixing valve cover
and then remove the valve cover.
Remove 3 connection screws among
top cover plate, front panel and right
side plate. Then remove top cover
plate.
screw
Cable cross plate 2
Valve Cover
screw
top cover plate
TW09HQ1C8D/O
TW12HQ1C8D/O
TW09HQ1B8A/O
TW12HQ1B8A/O
TW09CQ2B8DO
TW12CQ2B8DO
TW09HQ2C2DO
TW12HQ2C2DO
