Tosot TW09HQ1C8D User Manual

31
Technical Information
Service Manual

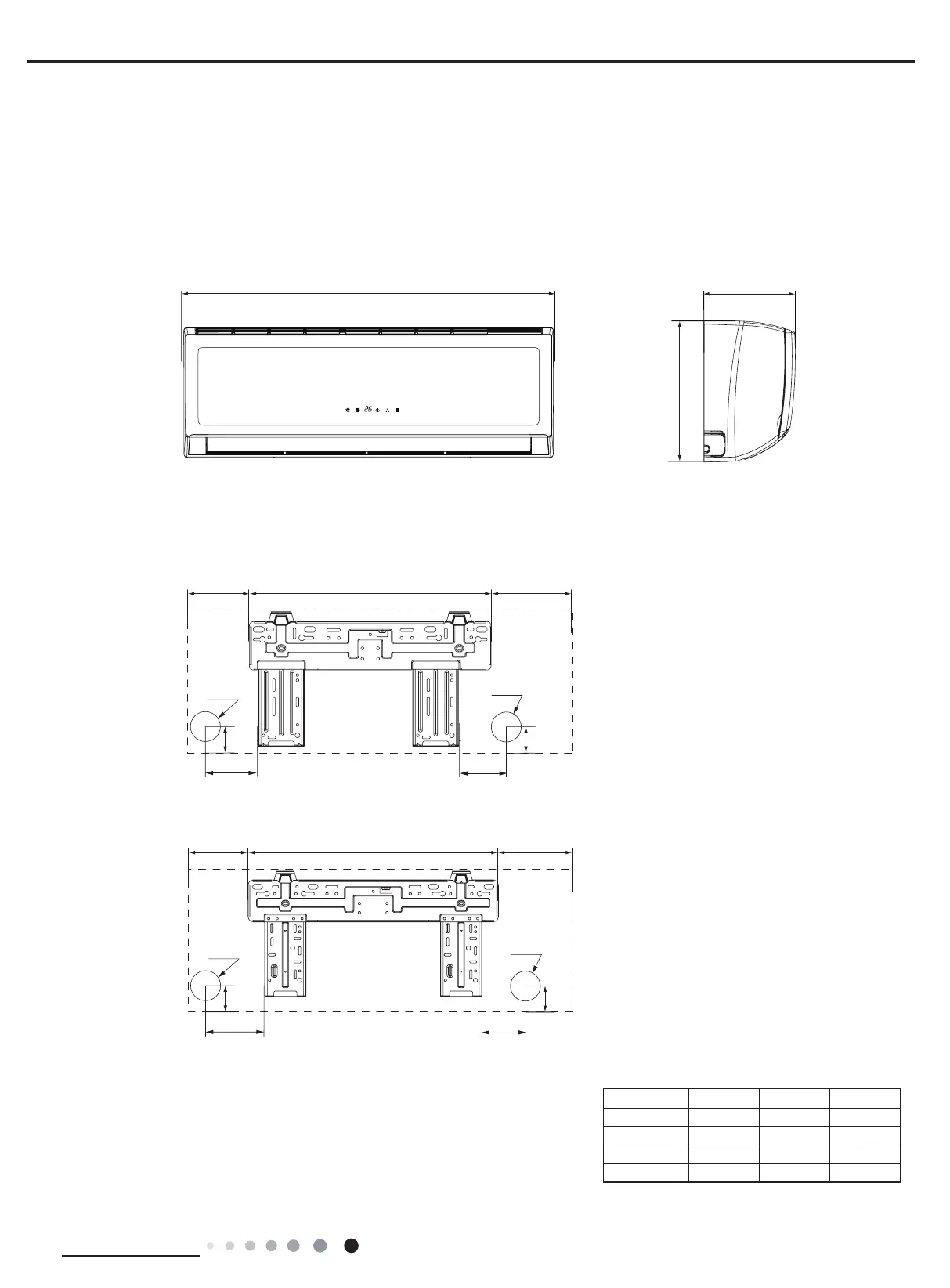

3. Outline Dimension Diagram
3.1 Indoor Unit
W
D
H
3 1/2
6
2 1/8
2 1/8
6 5/8 18 3/16 6 5/16
Φ2 3/16
Φ2 3/16
Φ2 3/16
Φ2 3/16
4 11/16 21 5/167 1/4
3 5/16
5
1 3/8
1 3/8
MODEL W H D
09K 31 1/8 10 7/8 7 7/8
12K 33 1/4 11 3/8 8 1/4
18K 38 3/16 11 13/16 8 13/16
24K 42 7/16 12 13/16 9 11/16
09K
12K
Unit:inch
TW09HQ1C8D/I
TW12HQ1C8D/I
TW18HQ1C8D/I
TW24HQ1C8D/I

Tosot TW09HQ1C8D Specifications

General

Brand	Tosot
Model	TW09HQ1C8D
Category	Air Conditioner
Language	English
