Installation and Maintenance
Service Manual
8. Installation

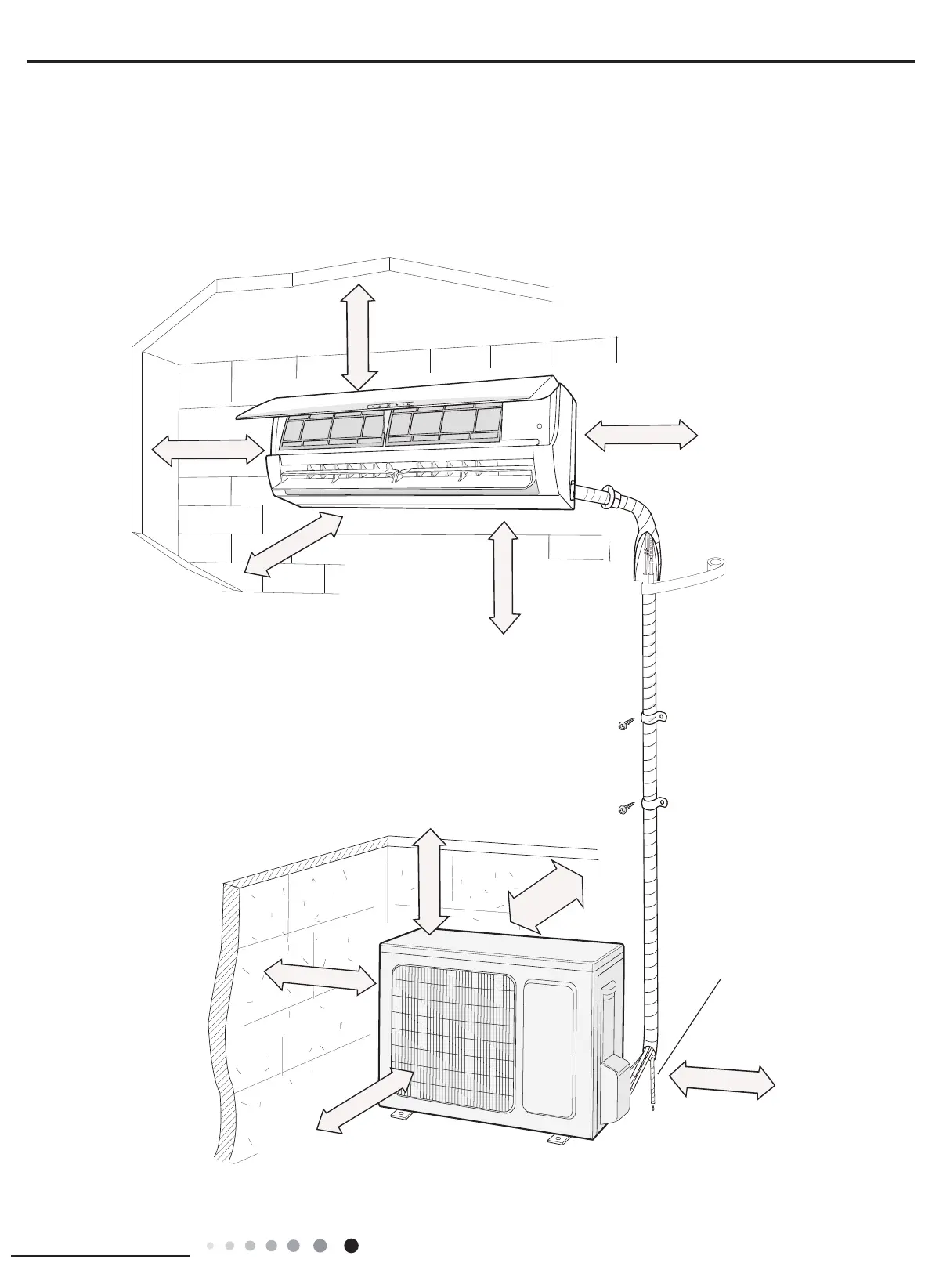

8.1 Installation Dimension Diagram
Drainage pipe
At least 72
At least 24
At least 24
At least 12
At least 118
At least 78
Space to the oor
Space to the obstruction
Space to the obstruction
Space to the
obstruction
Space to the ceiling
Space to the obstruction
Space to the obstruction
At least 12
At least 6
Space to the wall
Space to the wall
Space to the wall
At least 6
At least 8
Uint:inch
