167
Installation and Maintenance
Service Manual
Steps

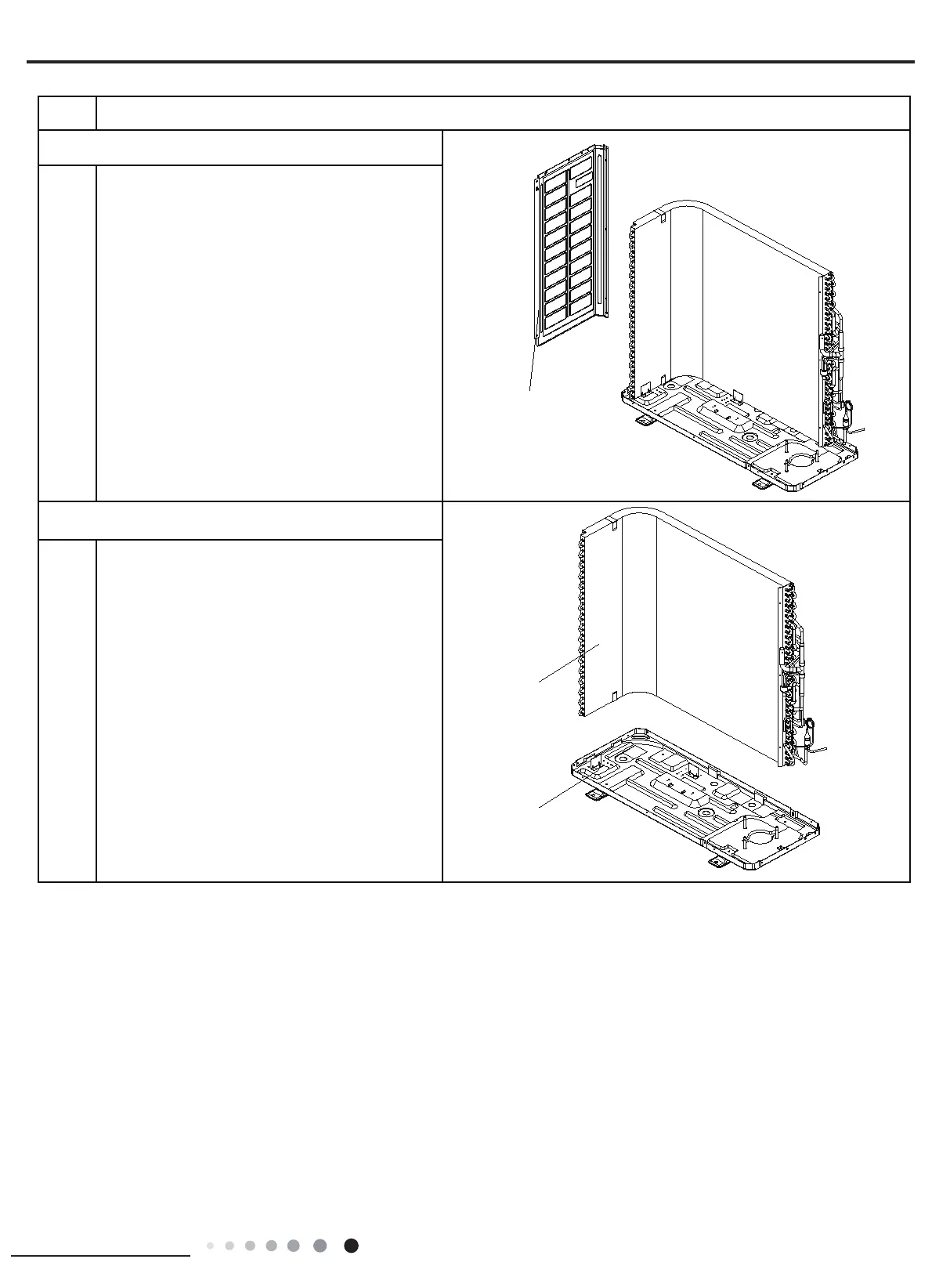

15.Remove left side plate
left side plate
T
wist off the screws connecting the left side plate
and chassis with screwdrive
r,
and then remove
the left side plate.
Pull it upwards to separate the chassis and
condense
r.
16.Remove chassis and condenser
chassis
condenser
Procedure
169
171
Table of Contents
Table of Contents
2
Part Ⅰ : Technical Information
4
Summary
4
Specifications
7
Specification Sheet
7
Operation Characteristic Curve
31
Capacity Variation Ratio According to Temperature
31
Cooling and Heating Data Sheet in Rated Frequency
32
Noise Curve
33
Outline Dimension Diagram
34
Indoor Unit
34
Outdoor Unit
38
Refrigerant System Diagram
42
Electrical Part
42
Wiring Diagram
42
PCB Printed Diagram
50
Function and Control
59
Remote Controller Introduction
59
Remote Controller Introduction
64
Brief Description of Modes and Functions
69
Part Ⅱ : Installation and Maintenance
78
Notes for Installation and Maintenance
78
Installation
80
Installation Dimension Diagram
80
Installation Parts-Checking
82
Selection of Installation Location
82
Electric Connection Requirement
82
Installation of Indoor Unit
82
Installation of Outdoor Unit
85
Vacuum Pumping and Leak Detection
86
Check after Installation and Test Operation
86
Maintenance
87
Error Code List
87
Troubleshooting for Main Malfunction
88
Troubleshooting for Normal Malfunction
100
Exploded View and Parts List
102
Indoor Unit
102
Outdoor Unit
126
Removal Procedure
150
Removal Procedure of Indoor Unit
150
Removal Procedure of Outdoor Unit
155
Appendix
171
Appendix 1: Reference Sheet of Celsius and Fahrenheit
171
Appendix 2: Configuration of Connection Pipe
171
Appendix 3: Pipe Expanding Method
172
Appendix 4: List of Resistance for Temperature Sensor
173
