55
Technical Information
Service Manual
TW24HQ2C2DO

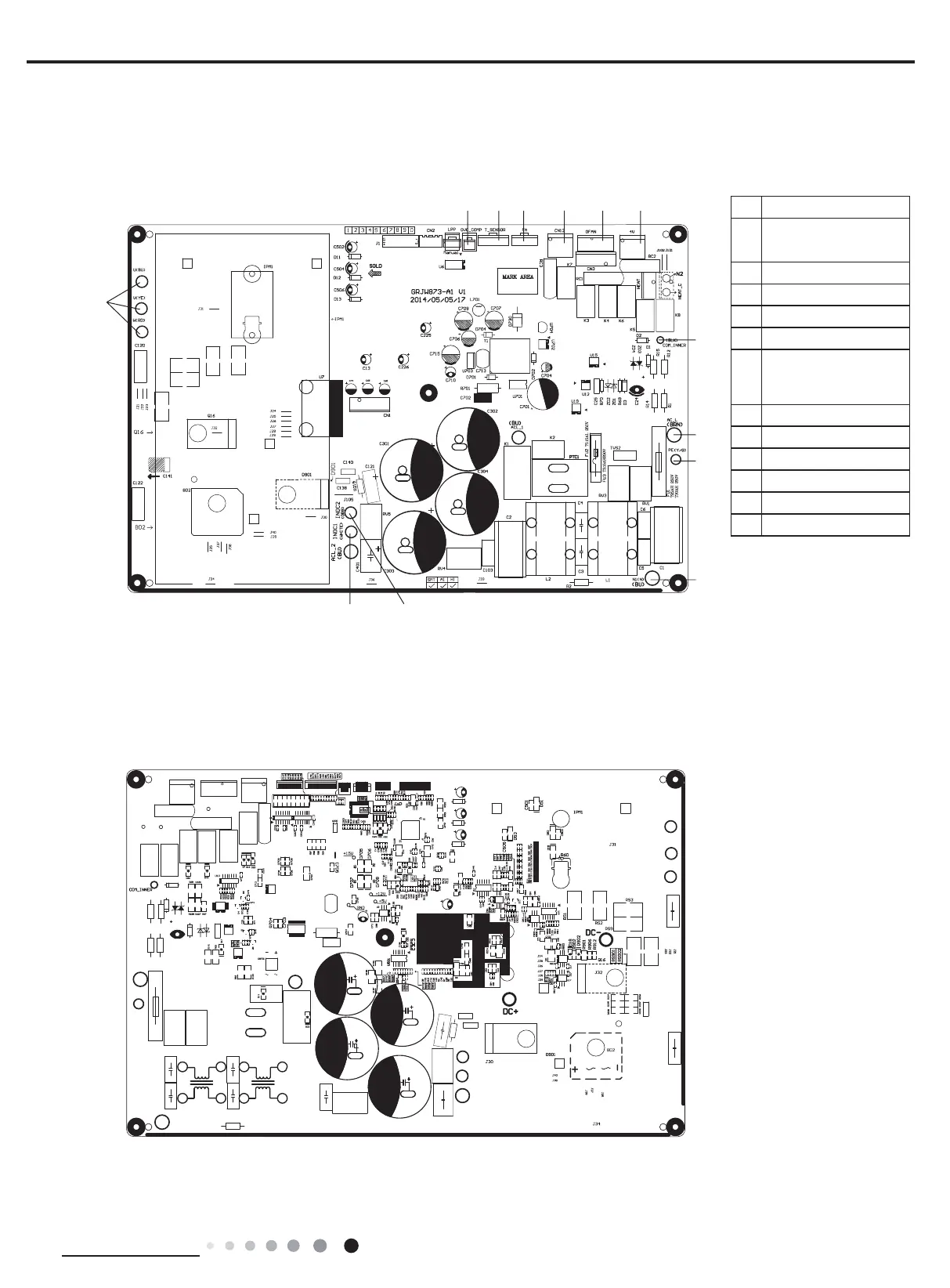

● Top view
● Bottom view
1
Compressorinter face
2
Compressor overload
protector
3
Temperature sensor
4
Electric expansion valve
5
Outdoor fan
6
4-way valve
7
Communication
interface with indoor
unit
8
Live wire
9
Earthing wire
10
Neutral wire
11
Reactor interface 2
12
Reactor interface 1
13
2-way valve interface
1
2341356
7
8
9
11
10
12
