99
Installation and Maintenance
Service Manual
Step Procedure

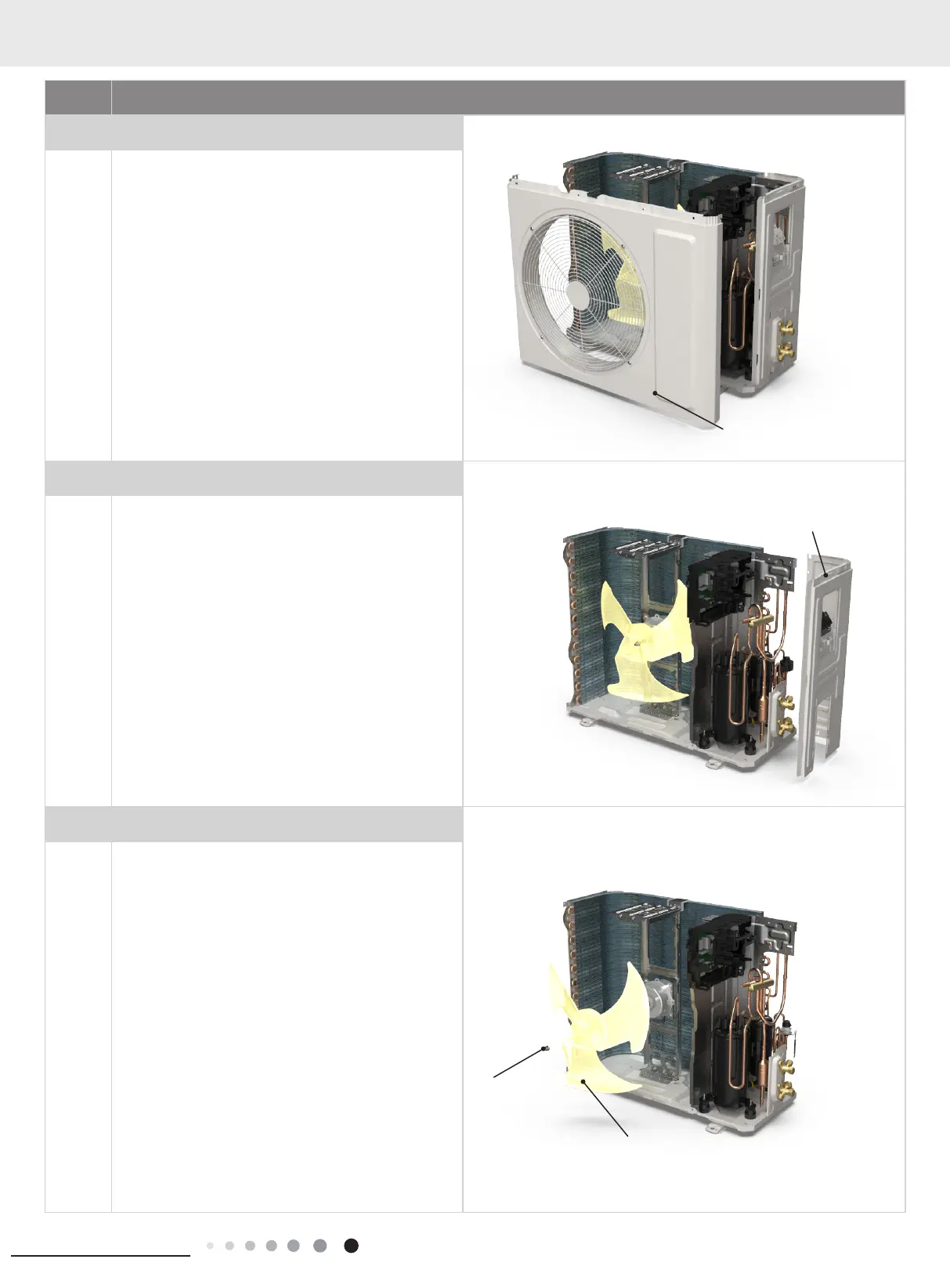

4. Remove front panel assy
Remove connection screws connecting the front panel
assy with the chassis and the motor support, and then
remove the front panel assy.
5. Remove right side plate assy
Rescrew the ground screws, remove the ground wires,
loosen the screws fixing terminal board, remove the
terminal board, rescrew the screws fixing the right
plate, and remove the right side plate assy.
6. Remove axial ow fan
Remove the nut on the fan and then remove the axial
ow fan.
Front panel assy
Right side plate assy
Axial ow fan
Nut
11. Removal Procedure
To Next Page
