93
Installation and Maintenance
Service Manual

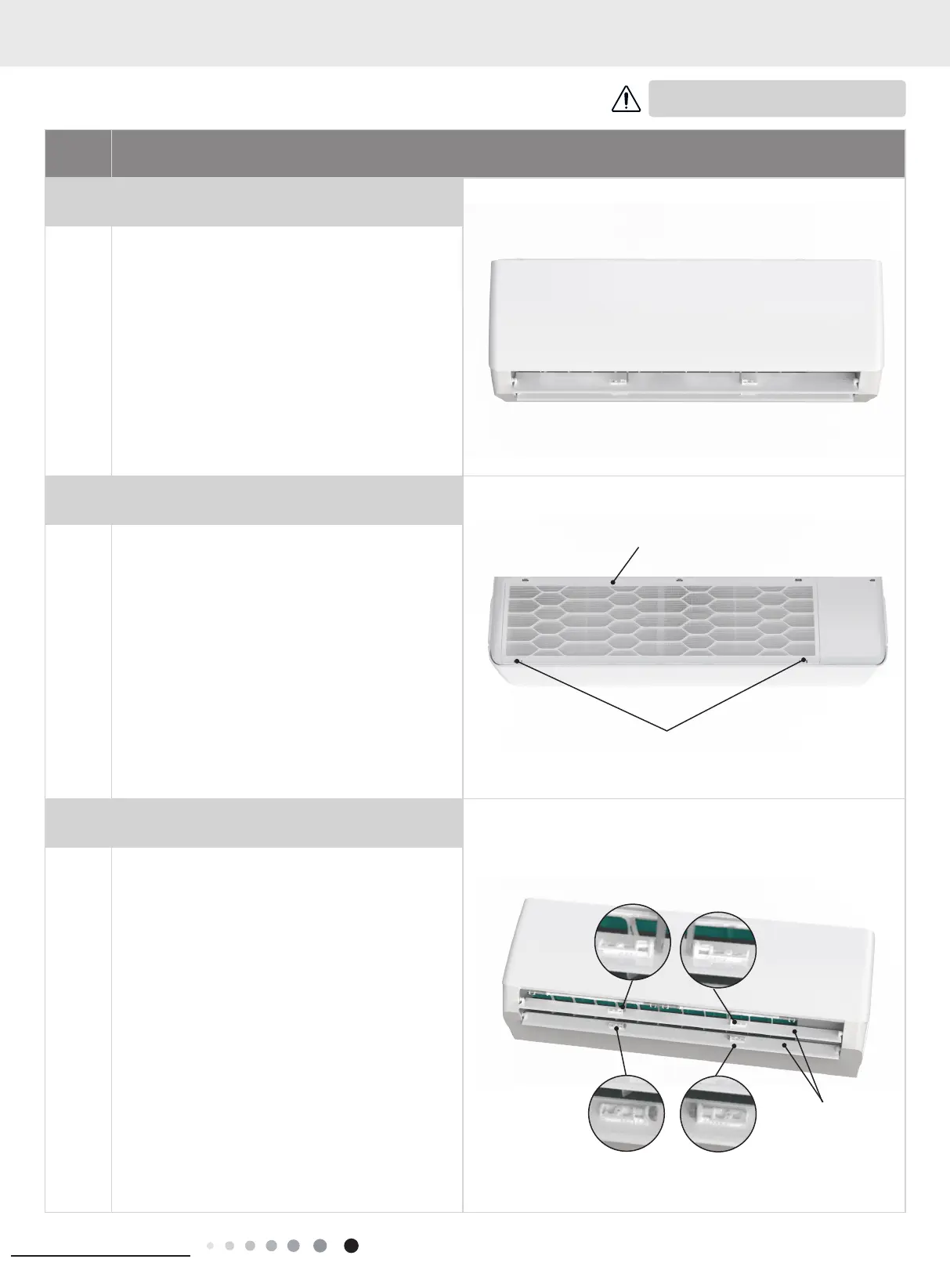

11. Removal Procedure
Step Procedure
Before disassemble
Turn off the air conditioner and disconnect the
power before disassemble the air conditioner.
1. Remove lter
Hold the handle on the lter, pull it upwards to let
the clasp at the top part of the lter loose, push it
forwards and then the lter can be pulled out.
2. Remove upper and lower guide louver
Push out the plug pin on upper and lower guide louver,
Bend the guide louver with hand and then separate
the guide louver from the crank shaft of step motor to
remove it.
11.1 Removal Procedure of Indoor Unit
Caution: discharge the refrigerant
completely before removal.
Filter
Handle
Guide Louver
To Next Page
