Installation and Maintenance
Service Manual
1

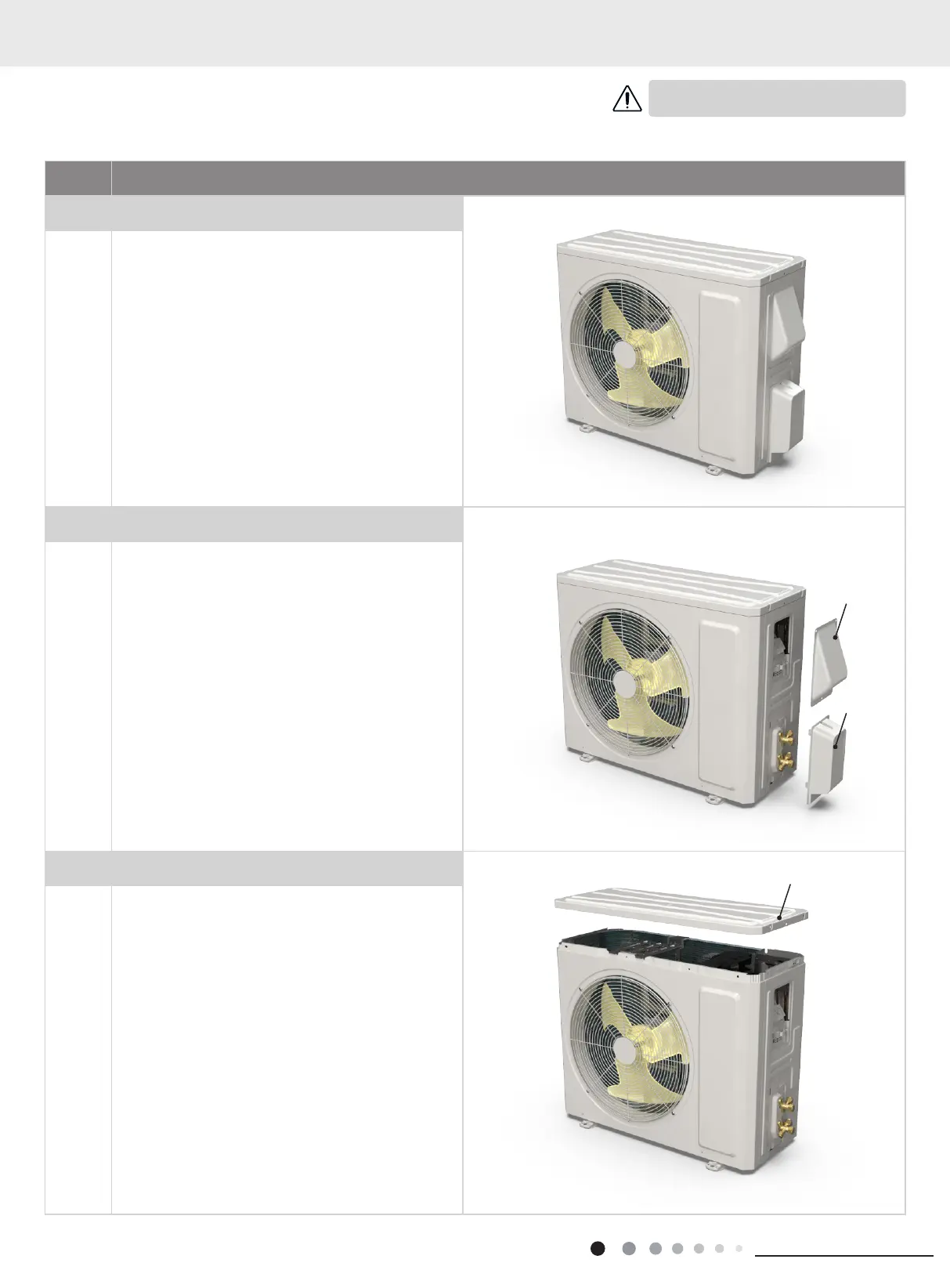

1.2 Removal Procedure of Outdoor Unit
Step
Procedure
1. Before disassembly
2. Remove big handle and valve cover
Remove
the
screws
xing
big
handle
,
valve cover and
then remove them.
3. Remove top cover
Remove
the
screws
xing
top
panel
and
then
remove
the top panel.
Big handle
V
alve cover
T
op cover
Caution: discharge the
refrigerant
completely before removal.
GWC09AGCXB-D3DNA1A/O
Note: T
ake heat pump model for example.
1
1. Removal Procedure
99
101
Table of Contents
Table of Contents
2
Specifications
6
Specification Sheet
6
Capacity Variation Ratio According to Temperature
18
Cooling and Heating Data Sheet in Rated Frequency
19
Outline Dimension Diagram
20
Indoor Unit
20
Outdoor Unit
21
Refrigerant System Diagram
23
Electrical Part
24
Wiring Diagram
24
PCB Printed Diagram
28
Function and Control
34
Remote Controller Introduction of YAP1F7F(Wifi)
34
Ewpe Smart App Operation Manual
39
Brief Description of Modes and Functions
40
Part II : Installation and Maintenance
43
Notes for Installation and Maintenance
43
Installation
46
Installation Dimension Diagram
46
Installation Parts-Checking
48
Selection of Installation Location
48
Electric Connection Requirement
48
Installation of Indoor Unit
48
Installation of Outdoor Unit
50
Vacuum Pumping and Leak Detection
52
Check after Installation and Test Operation
52
Maintenance
53
Error Code List
53
Procedure of Troubleshooting
60
Troubleshooting for Normal Malfunction
73
Exploded View and Parts List
75
Indoor Unit
75
Outdoor Unit
81
Removal Procedure
95
Removal Procedure of Indoor Unit
95
Removal Procedure of Outdoor Unit
100
Appendix
116
Appendix 1: Reference Sheet of Celsius and Fahrenheit
116
Appendix 2: Configuration of Connection Pipe
116
Appendix 3: Pipe Expanding Method
117
Appendix 4: List of Resistance for Temperature Sensor
118
