Tosot TW09HXP2A1A User Manual

97
Installation and Maintenance
Service Manual
Step Procedure

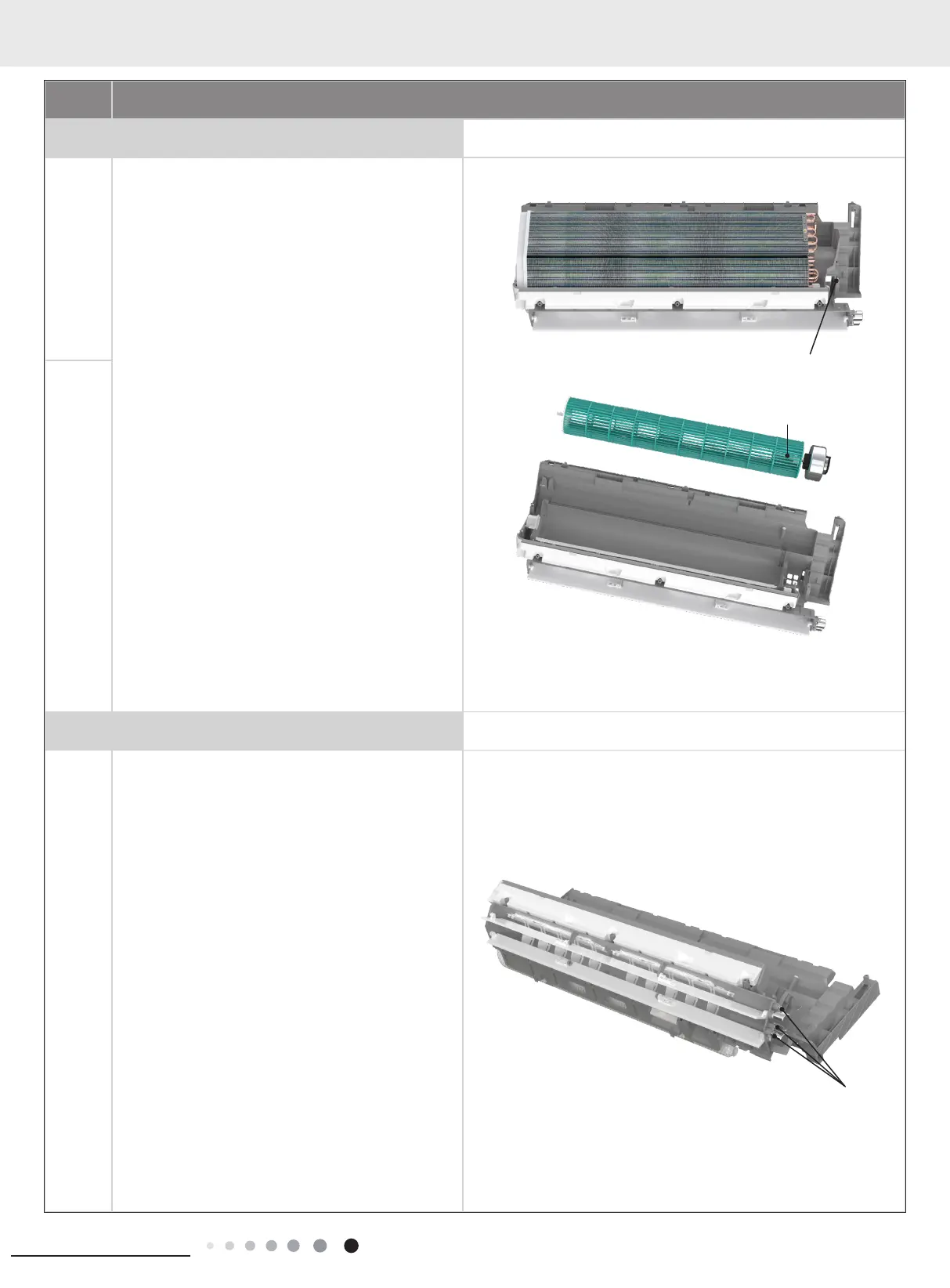

8. Remove motor and cross ow fan
a
Remove 3 screws xing motor clamp and then remove
the motor clamp.
Loose the screws (2-3 circles) used for xing the
cross ow fan, pull right to pull out the motor.
b
9. Remove swing motor
Screw off the screws that are locking the swing
motor and take the motor off.
Screw
Screw
Screws
11. Removal Procedure
