Technical Information
Service Manual

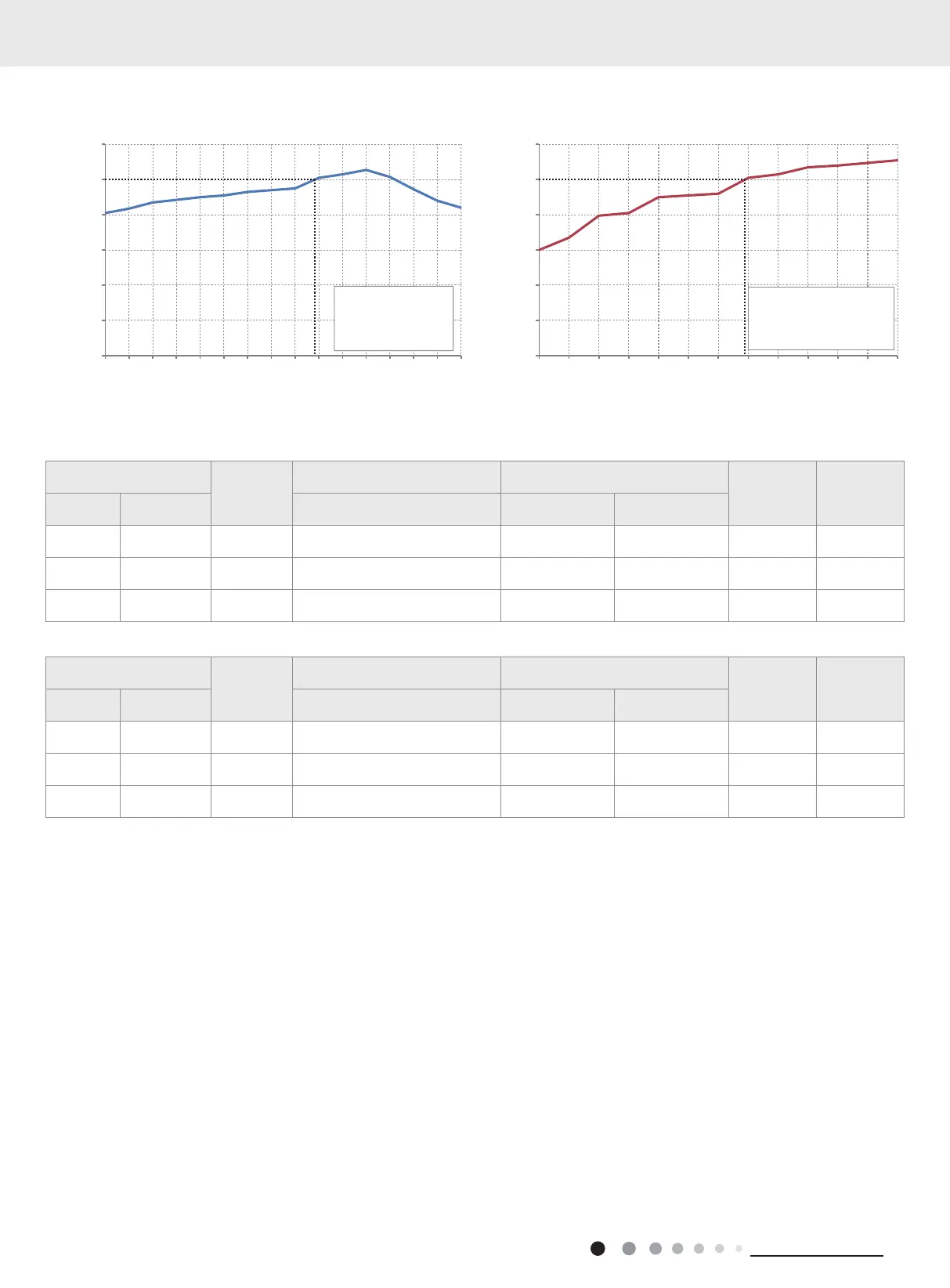

2.3 Cooling and Heating Data Sheet in Rated Frequency
Instruction:
T1: Inlet and outlet pipe temperature of evaporator
T2: Inlet and outlet pipe temperature of condenser
P: Pressure at the side of big valve
Connection pipe length: 16.4ft / 24.6ft.
Heating:
Rated heating condition(°F)
(DB/WB)
Model
Pressure of gas pipe connecting
indoor and outdoor unit
Inlet and outlet pipe temperature of
heat exchanger
Fan speed of
indoor unit
Fan speed of
outdoor unit
Indoor Outdoor P (MPa) T1 (°F) T2 (°F)
70/- 19.94/19.04 09K / 12K 2.2~2.4 158 to 95 35.6 to 39.2 Super High High
70/- 19.94/19.04 18K 2.2~2.4 158 to 95 33.8 to 41.0 Super High High
70/- 19.94/19.04 24K 2.5~2.7 158 to 104 33.8 to 41.0 Super High High
Cooling:
Rated cooling condition(°F)
(DB/WB)
Model
Pressure of gas pipe connecting
indoor and outdoor unit
Inlet and outlet pipe temperature of
heat exchanger
Fan speed of
indoor unit
Fan speed of
outdoor unit
Indoor Outdoor P (MPa) T1 (°F) T2 (°F)
80/66.9 95/- 09K / 12K 0.9~1.1 53.6 to 57.2 158 to 104 Super High High
80/66.9 95/- 18K 0.9~1.1 53.6 to 57.2 176 to 104 Super High High
80/66.9 95/- 24K 0.9~1.1 53.6 to 57.2 176 to 104 Super High High
2. Specications
Capacity ratio (%)
Capacity ratio (%)
Outdoor temp.(°F) Outdoor temp.(°F)
0%
20%
40%
60%
80%
100%
120%
-20-4514 23 32 41 50 59 68 77 86 95 109 118 122
0%
20%
40%
60%
80%
100%
120%
-22-7.65 14 17.63235.6 46.45964.469.875.
286
Conditions
Indoor: DB
80°F /WB66.9 °F
Outdoor: DB95°F
Indoor air flow: Super High
Pipe length:
24.6 ft
Conditions
Indoor: DB
70°F
Outdoor: DB19.94°F/WB19.04°F
Indoor air flow: Super High
Pipe length:
24.6 ft
Cooling: Heating:
24K
GWC24AGEXH-D3DNA1A of cooling operation ambient temperature range is 0
o
F~122
o
F.
