Installation and Maintenance
Service Manual
Caution: discharge the refrigerant
completely before removal.
11. Removal Procedure
Step Procedure
1. Before disassembly

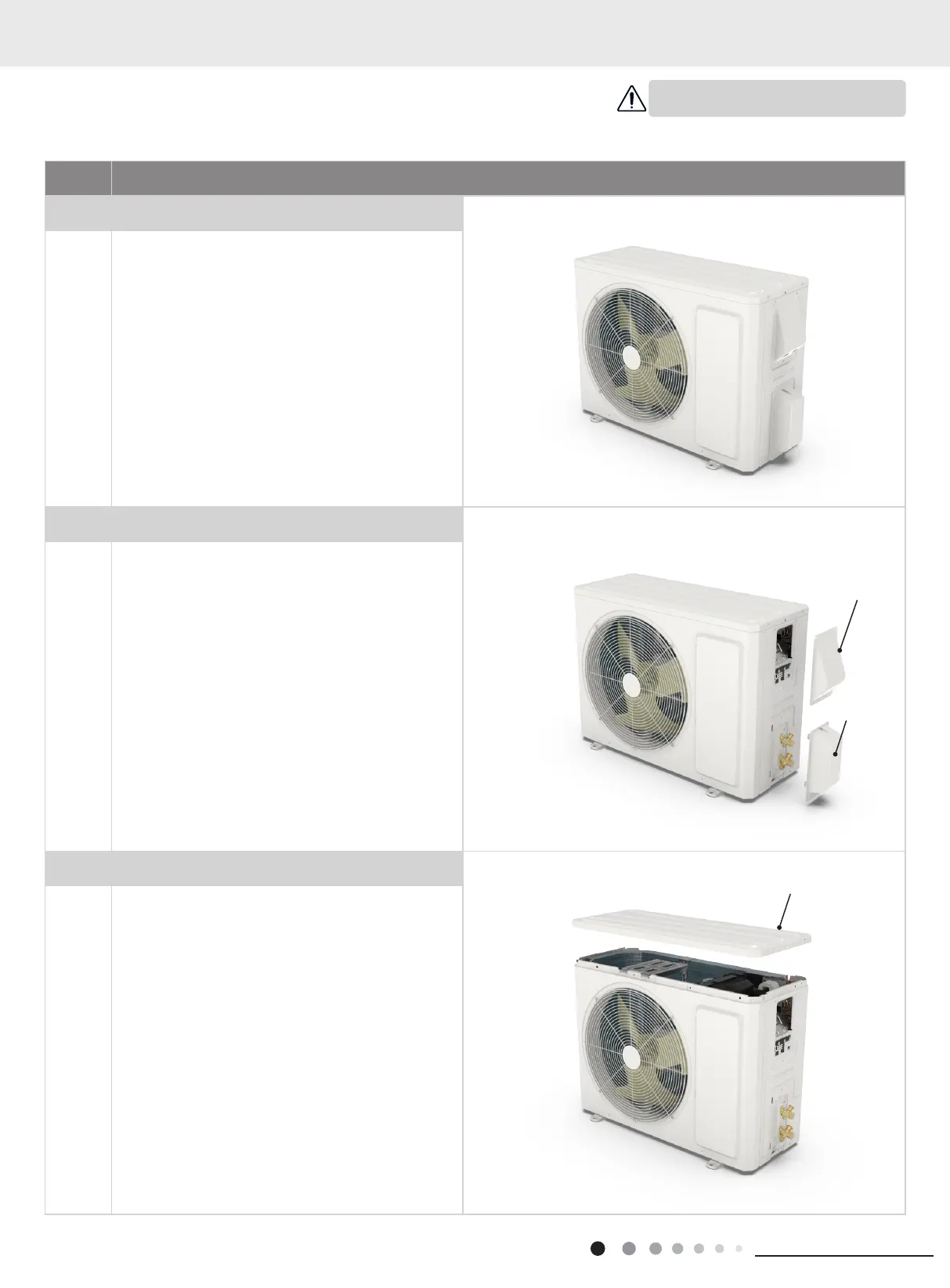

2. Remove cable cross plate and valve cover
Remove the screws xing cable cross plate
,
valve cover
and then remove them.
3. Remove top cover
Remove the screws xing top panel and then remove
the top panel.
Cable cross plate
Valve cover
Top cover
GWC09AGCXD-A3DNA1A/O TW09HXP2A1AO TW09HXP2A1DO GWC12AGCXD-
A3DNA1A/O TW12HXP2A1AO GWC12AGCXD-D3DNA1A/O GWH12AGCXD-
D3DNA1A/O
Note: Take heat pump model for example.
